Фрезерные инструменты Iscar 2026

ЕР, SC И ЦАНГИ С ТЕРМОУСАДКОЙ

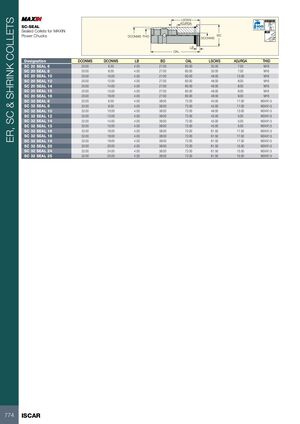

Герметичные цанги для гидравлических патронов MAXIN

Обозначение	DCONMS	DCONWS	LB	BD	OAL	LSCWS	ADJRGA	THID
SC 20 SEAL 6	20.00	6.00	4.00	27.00	60.00	35.00	7.00	M16
SC 20 SEAL 8	20.00	8.00	4.00	27.00	60.00	35.00	7.00	M16
SC 20 SEAL 10	20.00	10.00	4.00	27.00	60.00	48.00	13.00	M16
SC 20 SEAL 12	20.00	12.00	4.00	27.00	60.00	48.00	8.00	M16
SC 20 SEAL 14	20.00	14.00	4.00	27.00	60.00	48.00	8.00	M16
SC 20 SEAL 15	20.00	15.00	4.00	27.00	60.00	48.00	8.00	M16
SC 20 SEAL 16	20.00	16.00	4.00	27.00	60.00	48.00	9.00	M16
SC 32 SEAL 6	32.00	6.00	4.00	38.00	72.00	45.00	17.00	M24X1.5
SC 32 SEAL 8	32.00	8.00	4.00	38.00	72.00	45.00	17.00	M24X1.5
SC 32 SEAL 10	32.00	10.00	4.00	38.00	72.00	48.00	13.00	M24X1.5
SC 32 SEAL 12	32.00	12.00	4.00	38.00	72.00	45.00	5.00	M24X1.5
SC 32 SEAL 14	32.00	14.00	4.00	38.00	72.00	45.00	5.00	M24X1.5
SC 32 SEAL 15	32.00	15.00	4.00	38.00	72.00	45.00	5.00	M24X1.5
SC 32 SEAL 16	32.00	16.00	4.00	38.00	72.00	61.50	17.50	M24X1.5
SC 32 SEAL 18	32.00	18.00	4.00	38.00	72.00	61.50	17.50	M24X1.5
SC 32 SEAL 19	32.00	19.00	4.00	38.00	72.00	61.50	17.50	M24X1.5
SC 32 SEAL 20	32.00	20.00	4.00	38.00	72.00	61.50	15.50	M24X1.5
SC 32 SEAL 24	32.00	24.00	4.00	38.00	72.00	61.50	15.50	M24X1.5
SC 32 SEAL 25	32.00	25.00	4.00	38.00	72.00	61.50	10.50	M24X1.5
