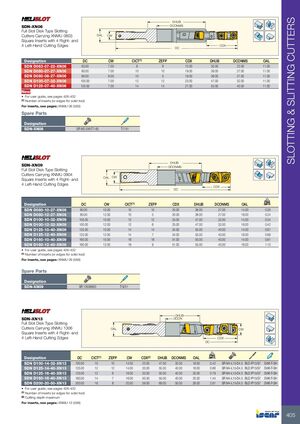

SLOTTING & SLITTING CUTTERS DHUB SDN-XN06 DCONMS Full Slot Disk Type Slotting Cutters Carrying XNMU 0603 OAL CW Square Inserts with 4 Right- and 4 Left-Hand Cutting Edges CDX DC Designation DC CW CICT(1) ZEFP CDX DHUB DCONMS OAL SDN D063-07-22-XN06 63.00 7.00 8 8 15.00 30.00 22.00 11.00 SDN D080-07-27-XN06 80.00 7.00 10 10 19.00 38.00 27.00 11.00 SDN D080-08-27-XN06 80.00 8.00 10 5 19.00 38.00 27.00 11.00 SDN D100-07-32-XN06 100.00 7.00 12 12 23.00 47.00 32.00 11.00 SDN D125-07-40-XN06 125.00 7.00 14 14 27.00 55.00 40.00 11.00 New • For user guide, see pages 426-432 (1) Number of inserts (or edges for solid tool) For inserts, see pages: XNMU 06 (585) Spare Parts Designation SDN-XN06 SR M2.5X6-T7-60 T-7/51 DHUB SDN-XN09 DCONMS Full Slot Disk Type Slotting Cutters Carrying XNMU 0904 OAL CW Square Inserts with 4 Right- and 4 Left-Hand Cutting Edges CDX DC kg Designation DC CW CICT(1) ZEFP CDX DHUB DCONMS OAL SDN D080-10-27-XN09 80.00 10.00 10 10 20.00 38.00 27.00 14.00 0.20 SDN D080-12-27-XN09 80.00 12.00 10 5 20.00 38.00 27.00 16.00 0.24 SDN D100-10-32-XN09 100.00 10.00 12 12 25.00 47.00 32.00 14.00 0.34 SDN D100-12-32-XN09 100.00 12.00 12 6 25.00 47.00 32.00 16.00 0.42 SDN D125-10-40-XN09 125.00 10.00 14 14 34.00 55.00 40.00 14.00 0.61 SDN D125-12-40-XN09 125.00 12.00 14 7 34.00 55.00 40.00 16.00 0.69 SDN D160-10-40-XN09 160.00 10.00 18 18 51.00 55.00 40.00 14.00 0.61 SDN D160-12-40-XN09 160.00 12.00 18 9 51.00 55.00 40.00 16.00 1.10 • For user guide, see pages 426-432 (1) Number of inserts (or edges for solid tool) For inserts, see pages: XNMU 09 (586) Spare Parts Designation SDN-XN09 SR 10508600 T-9/51 DHUB SDN-XN13 DCON Full Slot Disk Type Slotting Cutters Carrying XNMU 1306 OAL CW Square Inserts with 4 Right- and 4 Left-Hand Cutting Edges CDX DC kg Designation DC CICT(1) ZEFP CW CDX(2) DHUB DCONMS OAL SDN D100-14-32-XN13 100.00 10 10 14.00 23.00 47.00 32.00 18.00 0.42 SR M4-L15-D4.5 BLD IP15/S7 SW6-T-SH SDN D125-14-40-XN13 125.00 12 12 14.00 33.00 55.00 40.00 18.00 0.66 SR M4-L15-D4.5 BLD IP15/S7 SW6-T-SH SDN D125-16-40-XN13 125.00 12 6 16.00 33.00 55.00 40.00 20.00 0.79 SR M4-L15-D4.5 BLD IP15/S7 SW6-T-SH SDN D160-16-40-XN13 160.00 14 7 16.00 50.50 55.00 40.00 20.00 1.44 SR M4-L15-D4.5 BLD IP15/S7 SW6-T-SH SDN D200-20-50-XN13 200.00 16 8 20.00 59.00 69.00 50.00 26.00 2.61 SR M4-L15-D4.5 BLD IP15/S7 SW6-T-SH • For user guide, see pages 426-432 (1) Number of inserts (or edges for solid tool) (2) Cutting depth maximum For inserts, see pages: XNMU 13 (586) 405
