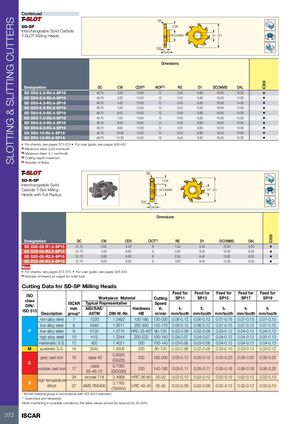

Фрезерные инструменты Iscar 2026 - страница 374

SLOTTING & SLITTING CUTTERS Continued RE SD-SP CDX Interchangeable Solid Carbide T-SLOT Milling Heads DCONMS D1 DC CW OAL Dimensions IC908 Designation DC CW CDX(3) NOF(4) RE D1 DCONMS OAL SD D50-2.0-R0.4-SP19 49.70 2.00 15.00 12 0.40 9.80 19.00 14.00 • SD D50-3.0-R0.4-SP19 49.70 3.00 15.00 12 0.40 9.80 19.00 14.00 • SD D50-4.0-R0.4-SP19 49.70 4.00 15.00 12 0.40 9.80 19.00 14.00 • SD D50-5.0-R0.4-SP19 49.70 5.00 15.00 12 0.40 9.80 19.00 14.00 • SD D50-6.0-R0.4-SP19 49.70 6.00 15.00 12 0.40 9.80 19.00 14.00 • SD D50-7.0-R0.4-SP19 49.70 7.00 15.00 12 0.40 9.80 19.00 14.00 • SD D50-8.0-R0.4-SP19 49.70 8.00 15.00 12 0.40 9.80 19.00 14.00 • SD D50-9.0-R0.4-SP19 49.70 9.00 15.00 12 0.40 9.80 19.00 14.00 • SD D50-10-R0.4-SP19 49.70 10.00 15.00 12 0.40 9.80 19.00 14.00 • SD D50-12-R0.4-SP19 49.70 12.00 15.00 12 0.40 9.80 19.00 14.00 • • For shanks, see pages 373-375 • For user guide, see pages 426-432 (1) Maximum feed: 0.04 mm/tooth (2) Maximum feed: 0.1 mm/tooth (3) Cutting depth maximum (4) Number of flutes RE SD-R-SP CDX Interchangeable Solid Carbide T-Slot Milling DCONMS D1 DC Heads with Full Radius CW OAL Dimensions IC908 Designation DC CW CDX CICT(1) RE D1 DCONMS OAL SD D32-03-R1.5-SP15 31.70 3.00 8.00 8 1.50 8.40 15.00 8.00 • SD D32-04-R2.0-SP15 31.70 4.00 8.00 8 2.00 8.40 15.00 8.00 • SD D32-05-R2.5-SP15 31.70 5.00 8.00 8 2.50 8.40 15.00 8.00 • SD D32-06-R3.0-SP15 31.70 6.00 8.00 8 3.00 8.40 15.00 8.00 • New • For shanks, see pages 373-375 • For user guide, see pages 426-432 (1) Number of inserts (or edges for solid tool) Cutting Data for SD-SP Milling Heads Feed for Feed for Feed for Feed for Feed for ISO Workpiece Material Cutting SP11 SP13 SP15 SP17 SP19 class ISCAR Typical Representative Speed DIN/ mat. AISI/SAE/ Hardness Vc fz fz fz fz fz ISO 513 Description group* ASTM DIN W.-Nr. HB m/min mm/tooth mm/tooth mm/tooth mm/tooth mm/tooth non-alloy steel 1 1020 1.0402 130-180 130-200 0.06-0.12 0.06-0.12 0.07-0.15 0.07-0.15 0.07-0.15 low alloy steel 8 4340 1.6511 260-300 120-170 0.06-0.12 0.06-0.12 0.07-0.15 0.07-0.15 0.07-0.15 P low alloy steel 9 3135 1.5710 HRC 35-40* 80-120 0.02-0.06 0.02-0.06 0.03-0.12 0.04-0.12 0.04-0.13 high alloy steel 10 H13 1.2344 200-220 100-140 0.04-0.07 0.04-0.07 0.04-0.12 0.04-0.12 0.05-0.13 martensitic S.S. 12 420 1.4021 200 100-140 0.03-0.06 0.03-0.06 0.04-0.12 0.04-0.12 0.04-0.13 M austenitic S.S. 14 304L 1.4306 200 80-120 0.02-0.06 0.02-0.06 0.03-0.10 0.03-0.12 0.03-0.12 0.6025 grey cast iron 16 class 40 250 160-200 0.05-0.12 0.05-0.12 0.05-0.20 0.06-0.20 0.06-0.20 (GG25) K class 0.7050 nodular cast iron 17 200 140-180 0.05-0.11 0.05-0.11 0.05-0.18 0.06-0.18 0.06-0.20 65-45-12 (GGG50) 34 inconel 718 2.4668 HRC 36-40 20-30 0.02-0.12 0.02-0.12 0.02-0.12 0.02-0.12 0.02-0.13 high temperature S 3.7165 alloys 37 AMS R56400 HRC 40-45 35-45 0.02-0.06 0.02-0.06 0.02-0.12 0.02-0.12 0.02-0.13 (Ti6Al4V) * ISCAR material group in accordance with VDI 3323 standard ** Quenched and tempered When machining in unstable conditions, the table values should be reduced by 20-30%. 372 ISCAR
