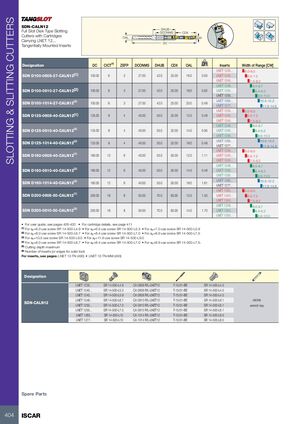

SLOTTING & SLITTING CUTTERS SDN-CALN12 DHUB Full Slot Disk Type Slotting DCONMS CDX Cutters with Cartridges OAL CW Carrying LNET 12... DC Tangentially Mounted Inserts (4) kg Designation DC CICT ZEFP DCONMS DHUB CDX OAL Inserts Width of Range [CW] LNET 1235... 6.0-6.5 SDN D100-0608-27-CALN12(1) 100.00 6 3 27.00 42.0 25.00 16.0 0.63 LNET 1240... 6.5-7.2 LNET 1245... 7.0-8.2 LNET 1248... 8.0-8.7 SDN D100-0810-27-CALN12(2) 100.00 6 3 27.00 42.0 25.00 18.0 0.82 LNET 1250... 8.4-9.2 LNET 1255... 8.9-10.5 (3) LNET 1265... 10.5-12.2 SDN D100-1014-27-CALN12 100.00 6 3 27.00 42.0 25.00 20.0 0.48 LNET 1277... 11.9-14.6 LNET 1235... 6.0-6.5 SDN D125-0608-40-CALN12(1) 125.00 8 4 40.00 55.0 32.00 12.0 0.48 LNET 1240... 6.5-7.2 LNET 1245... 7.0-8.2 LNET 1248... 8.0-8.7 (2) SDN D125-0810-40-CALN12 125.00 8 4 40.00 55.0 32.00 14.0 0.95 LNET 1250... 8.4-9.2 LNET 1255... 8.9-10.5 (3) LNET 1265... 10.5-12.2 SDN D125-1014-40-CALN12 125.00 8 4 40.00 55.0 32.00 18.0 0.48 LNET 1277... 11.9-14.6 LNET 1235... 6.0-6.5 (1) SDN D160-0608-40-CALN12 160.00 12 6 40.00 55.0 50.00 12.0 1.11 LNET 1240... 6.5-7.2 LNET 1245... 7.0-8.2 LNET 1248... 8.0-8.7 (2) SDN D160-0810-40-CALN12 160.00 12 6 40.00 55.0 50.00 14.0 0.48 LNET 1250... 8.4-9.2 LNET 1255... 8.9-10.5 (3) LNET 1265... 10.5-12.2 SDN D160-1014-40-CALN12 160.00 12 6 40.00 55.0 50.00 18.0 1.61 LNET 1277... 11.9-14.6 LNET 1235... 6.0-6.5 (1) SDN D200-0608-50-CALN12 200.00 16 8 50.00 70.0 63.00 12.0 1.50 LNET 1240... 6.5-7.2 LNET 1245... 7.0-8.2 LNET 1248... 8.0-8.7 (2) SDN D200-0810-50-CALN12 200.00 16 8 50.00 70.0 63.00 14.0 1.70 LNET 1250... 8.4-9.2 LNET 1255... 8.9-10.5 • For user guide, see pages 426-432 • For cartridge details, see page 411 (1) For a =6.0 use screw SR 14-500-L4.9 • For a =6.5 use screw SR 14-500-L5.3 • For a =7.0 use screw SR 14-500-L5.9 p p p (2) For a =8.0 use screw SR 14-500-L6.7 • For a =8.4 use screw SR 14-500-L7.0 • For a =8.9 use screw SR 14-500-L7.5 p p p (3) For a =10.5 use screw SR 14-500-L9.0 • For a =11.9 use screw SR 14-500-L9.0 p p (4) For a =8.0 use screw SR 14-500-L6.7 • For a =8.4 use screw SR 14-500-L7.0 • For a =8.9 use screw SR 14-500-L7.5. p p p (5) Cutting depth maximum (6) Number of inserts (or edges for solid tool) For inserts, see pages: LNET 12-TN (493) • LNET 12-TN-MM (493) Designation LNET 1235... SR 14-500-L4.9 CA 0608 R/L-LNET12 T-15/51-BE SR 14-500-L4.5 LNET 1240... SR 14-500-L5.3 CA 0608 R/L-LNET12 T-15/51-BE SR 14-500-L4.5 LNET 1245... SR 14-500-L5.9 CA 0608 R/L-LNET12 T-15/51-BE SR 14-500-L4.5 LNET 1248... SR 14-500-L6.7 CA 0810 R/L-LNET12 T-15/51-BE SR 14-500-L6.1 ratchet SDN-CALN12 LNET 1250... SR 14-500-L7.0 CA 0810 R/L-LNET12 T-15/51-BE SR 14-500-L6.1 wrench key LNET 1255... SR 14-500-L7.5 CA 0810 R/L-LNET12 T-15/51-BE SR 14-500-L6.1 LNET 1265.. SR 14-500-L10 CA 1014 R/L-LNET12 T-15/51-BE SR 14-500-L8.5 LNET 1277.. SR 14-500-L10 CA 1014 R/L-LNET12 T-15/51-BE SR 14-500-L8.5 Spare Parts 404 ISCAR
