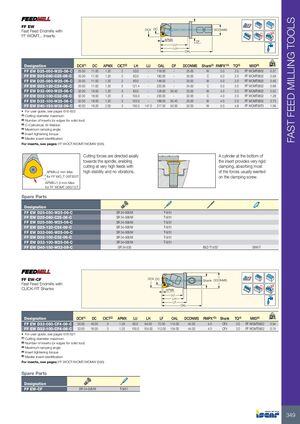

FAST FEED MILLING TOOLS FF EW DCX DC DCONMS Fast Feed Endmills with Rd° FF WOMT... Inserts APMX DF LU LH OAL kg Designation DCX(1) DC APMX CICT(2) LH LU OAL DF DCONMS Shank(3) RMPX°(4) TQ(5) MIID(6) FF EW D25-050-W25-06-C 25.00 11.00 1.20 2 53.0 - 118.00 - 25.00 W 5.0 2.0 FF WOMT0602 0.37 FF EW D25-080-C25-06-C 25.00 11.00 1.20 2 83.0 - 180.00 - 25.00 C 5.0 2.0 FF WOMT0602 0.58 FF EW D25-080-W25-06-C 25.00 11.00 1.20 2 83.0 - 148.00 - 25.00 W 5.0 2.0 FF WOMT0602 0.46 FF EW D25-120-C24-06-C 25.00 11.00 1.20 2 121.4 - 220.00 - 24.00 C 5.0 2.0 FF WOMT0602 0.68 FF EW D32-060-W25-06-C 32.00 18.00 1.20 3 63.0 - 128.00 30.40 25.00 W 4.0 2.0 FF WOMT0602 0.52 FF EW D32-100-C32-06-C 32.00 18.00 1.20 3 103.0 - 230.00 - 32.00 C 4.0 2.0 FF WOMT0602 1.28 FF EW D32-100-W25-06-C 32.00 18.00 1.20 3 103.0 - 168.00 30.40 25.00 W 4.0 2.0 FF WOMT0602 0.73 FF EW D40-150-W32-09-C 40.00 19.20 2.00 3 150.0 147.0 217.50 50.00 32.00 W 5.0 4.8 FF WOMT09T3 1.56 • For user guide, see pages 616-622 (1) Cutting diameter maximum (2) Number of inserts (or edges for solid tool) (3) C-Cylindrical, W-Weldon (4) Maximum ramping angle (5) Insert tightening torque (6) Master insert identification For inserts, see pages: FF WOCT/WOMT/WOMW (595) Cutting forces are directed axially A cylinder at the bottom of towards the spindle, enabling the insert provides very rigid cutting at very high feeds with clamping, absorbing most APMX=2 mm Max high stability and no vibrations. of the forces usually exerted for FF WO_T 09T320T on the clamping screw. APMX=1.5 mm Max for FF WOMT 060212T Spare Parts Designation FF EW D25-050-W25-06-C SR 34-506/M T-9/51 FF EW D25-080-C25-06-C SR 34-506/M T-9/51 FF EW D25-080-W25-06-C SR 34-506/M T-9/51 FF EW D25-120-C24-06-C SR 34-506/M T-9/51 FF EW D32-060-W25-06-C SR 34-506/M T-9/51 FF EW D32-100-C32-06-C SR 34-506/M T-9/51 FF EW D32-100-W25-06-C SR 34-506/M T-9/51 FF EW D40-150-W32-09-C SR 34-535 BLD T15/S7 SW6-T FF EW-CF DCX DC Shank DCONMS Fast Feed Endmills with Rd° CLICK-FIT Shanks APMX LU LH LF OAL kg Designation DCX(1) DC CICT(2) APMX LU LH LF OAL DCONMS RMPX°(3) Shank TQ(4) MIID(5) FF EW D32-060-CF4-06-C 32.00 18.00 3 1.20 60.0 64.00 72.00 114.00 44.00 4.0 CF4 2.0 FF WOMT0602 0.54 FF EW D32-100-CF4-06-C 32.00 18.00 3 1.20 100.0 104.00 112.00 154.00 44.00 4.0 CF4 2.0 FF WOMT0602 0.74 • For user guide, see pages 616-621 (1) Cutting diameter maximum (2) Number of inserts (or edges for solid tool) (3) Maximum ramping angle (4) Insert tightening torque (5) Master insert identification For inserts, see pages: FF WOCT/WOMT/WOMW (595) Spare Parts Designation FF EW-CF SR 34-506/M T-9/51 349
