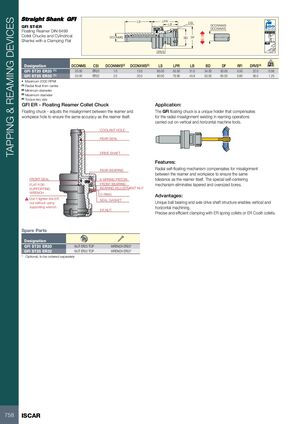

TAPPING & REAMING DEVICES LS LPR CSI LB DCONNWS GFI ST-ER DCONXWS 50 Bar Max Floating Reamer DIN 6499 58-60 HRc Collet Chucks and Cylindrical DCONMS BD DF Shanks with a Clamping Flat √N5 DRVS kg Designation DCONMS CSI DCONNWS(2) DCONXWS(3) LS LPR LB BD DF RFl DRVS(4) GFI ST20 ER20 (1) 20.00 ER20 1.0 13.0 65.00 55.50 31.0 34.00 50.00 0.50 22.0 0.56 GFI ST25 ER32 (1) 25.00 ER32 2.0 20.0 80.00 76.90 45.9 50.00 65.00 0.80 36.0 1.20 • Maximum 2000 RPM! (1) Radial float from center (2) Minimum diameter (3) Maximum diameter (4) Torque key size GFI ER - Floating Reamer Collet Chuck Application: Floating chuck - adjusts the misalignment between the reamer and The GFI floating chuck is a unique holder that compensates workpiece hole to ensure the same accuracy as the reamer itself. for the radial misalignment existing in reaming operations carried out on vertical and horizontal machine tools. COOLANT HOLE REAR SEAL DRIVE SHAFT Features: REAR BEARING Radial self-floating mechanism compensates for misalignment between the reamer and workpiece to ensure the same FRONT SEAL 6 SPRING PISTON tolerance as the reamer itself. The special self-centering FLAT FOR FRONT BEARING mechanism eliminates tapered and oversized bores. SUPPORTING BEARING ADJUSTMENT NUT WRENCH O-RING Advantages: Don’t tighten the ER SEAL GASKET nut without using Unique ball bearing and axle drive shaft structure enables vertical and supporting wrench horizontal machining. ER NUT Precise and efficient clamping with ER spring collets or ER Coolit collets. Spare Parts Designation GFI ST20 ER20 NUT ER20 TOP WRENCH ER20* GFI ST25 ER32 NUT ER32 TOP WRENCH ER32* * Optional, to be ordered separately 758 ISCAR
