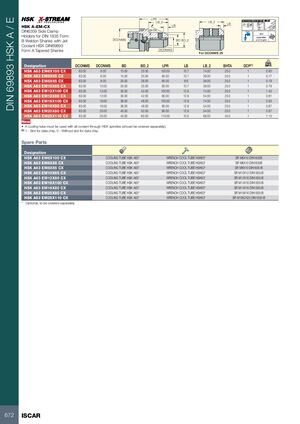

DIN 69893 HSK A / E LPR √N5 LB_2 LB_2 A 0.005 A 58-60 HRc LB LB HSK A-EM-CX DIN6359 Side Clamp BHTA G2.5 Holders for DIN 1835 Form 25,000 RPM B Weldon Shanks with Jet DCONMS BD BD_2 or U<1.0 gmm Coolant HSK DIN69893 Form A Tapered Shanks DCONWS For DCONWS 25 kg Designation DCONMS DCONWS BD BD_2 LPR LB LB_2 BHTA DCP(1) HSK A63 EM6X100 CX 63.00 6.00 15.00 25.00 100.00 10.7 74.00 25.0 1 0.85 HSK A63 EM6X65 CX 63.00 6.00 15.00 25.00 65.00 10.7 39.00 25.0 1 0.77 HSK A63 EM8X65 CX 63.00 8.00 20.00 28.00 65.00 8.6 39.00 25.0 1 0.79 HSK A63 EM10X65 CX 63.00 10.00 25.00 35.00 65.00 10.7 39.00 25.0 1 0.79 HSK A63 EM12X100 CX 63.00 12.00 30.00 42.00 100.00 12.9 74.00 25.0 1 1.40 HSK A63 EM12X80 CX 63.00 12.00 30.00 42.00 80.00 12.9 54.00 25.0 1 0.81 HSK A63 EM16X100 CX 63.00 16.00 36.00 48.00 100.00 12.9 74.00 25.0 1 0.93 HSK A63 EM16X80 CX 63.00 16.00 36.00 48.00 80.00 12.9 54.00 25.0 1 0.87 HSK A63 EM20X80 CX 63.00 20.00 40.00 52.00 80.00 12.9 54.00 25.0 1 0.97 HSK A63 EM25X110 CX 63.00 25.00 45.00 65.00 110.00 10.0 68.00 45.0 1 1.15 New • A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). (1) 1 - Slot for data chip, 0 - Without slot for data chip Spare Parts Designation HSK A63 EM6X100 CX COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* SR M6X10 DIN1835B HSK A63 EM6X65 CX COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* SR M6X10 DIN1835B HSK A63 EM8X65 CX COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* SR M8X10 DIN1835-B HSK A63 EM10X65 CX COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* SR M10X12 DIN1835-B HSK A63 EM12X80 CX COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* SR M12X16 DIN1835-B HSK A63 EM16X100 CX COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* SR M14X16 DIN1835-B HSK A63 EM16X80 CX COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* SR M14X16 DIN1835-B HSK A63 EM20X80 CX COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* SR M16X16 DIN1835-B HSK A63 EM25X110 CX COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* SR M18X2X20 DIN1835-B * Optional, to be ordered separately 672 ISCAR
