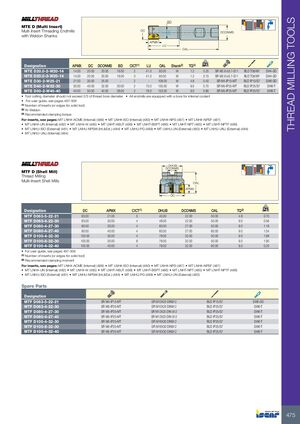

THREAD MILLING TOOLS BD MTE D (Multi Insert) Multi Insert Threading Endmills DC DCONMS with Weldon Shanks APMX LU OAL kg Designation APMX DC DCONMS BD CICT(1) LU OAL Shank(2) TQ(3) MTE D20.0-2-W20-14 14.00 20.00 20.00 16.00 2 41.0 93.00 W 1.2 0.20 SR M2.6-L6.7-S11 BLD T08/M7 SW4-SD MTE D20.0-3-W20-14 14.00 20.00 20.00 16.00 3 41.0 93.00 W 1.2 0.15 SR M2.6-L6.7-S11 BLD T08/M7 SW4-SD MTE D30-2-W25-21 21.00 30.00 25.00 - 2 - 108.00 W 4.8 0.40 SR M4-IP15-MT BLD IP15/S7 SW6-SD MTE D40-2-W32-30 30.00 40.00 32.00 30.00 2 70.0 130.00 W 9.0 0.70 SR M5-IP25-MT BLD IP25/S7 SW6-T MTE D50-2-W40-40 40.00 50.00 40.00 38.00 2 78.0 153.00 W 9.0 0.80 SR M5-IP25-MT BLD IP25/S7 SW6-T • Tool cutting diameter should not exceed 2/3 of thread bore diameter • All endmills are equipped with a bore for internal coolant • For user guide, see pages 497-506 (1) Number of inserts (or edges for solid tool) (2) W-Weldon (3) Recommended clamping torque For inserts, see pages: MT LNH#-ACME (Internal) (488) • MT LNH#-ISO (Internal) (480) • MT LNH#-NPS (487) • MT LNH#-NPSF (487) • MT LNH#-UN (Internal) (482) • MT LNH#-W (485) • MT LNHT-ABUT (488) • MT LNHT-BSPT (486) • MT LNHT-NPT (485) • MT LNHT-NPTF (486) • MT LNHU-ISO (External) (481) • MT LNHU-NPSM (Int.&Ext.) (484) • MT LNHU-PG (489) • MT LNHU-UN (External) (483) • MT LNHU-UNJ (External) (484) • MT LNHU-UNJ (Internal) (484) DHUB DCONMS MTF D (Shell Mill) Thread Milling Multi-Insert Shell Mills OAL APMX DC kg Designation DC APMX CICT(1) DHUB DCONMS OAL TQ(2) MTF D063-5-22-21 63.00 21.00 5 40.00 22.00 50.00 4.8 0.70 MTF D063-4-22-30 63.00 30.00 4 48.00 22.00 50.00 9.0 0.56 MTF D080-4-27-30 80.00 30.00 4 60.00 27.00 50.00 9.0 1.18 MTF D080-4-27-40 80.00 40.00 4 60.00 27.00 60.00 9.0 1.04 MTF D100-4-32-30 100.00 30.00 4 78.00 32.00 50.00 9.0 1.89 MTF D100-8-32-30 100.00 30.00 8 78.00 32.00 50.00 9.0 1.90 MTF D100-4-32-40 100.00 40.00 4 78.00 32.00 60.00 9.0 0.20 • For user guide, see pages 497-506 (1) Number of inserts (or edges for solid tool) (2) Recommended clamping moment For inserts, see pages: MT LNH#-ACME (Internal) (488) • MT LNH#-ISO (Internal) (480) • MT LNH#-NPS (487) • MT LNH#-NPSF (487) • MT LNH#-UN (Internal) (482) • MT LNH#-W (485) • MT LNHT-ABUT (488) • MT LNHT-BSPT (486) • MT LNHT-NPT (485) • MT LNHT-NPTF (486) • MT LNHU-ISO (External) (481) • MT LNHU-NPSM (Int.&Ext.) (484) • MT LNHU-PG (489) • MT LNHU-UN (External) (483) Spare Parts Designation MTF D063-5-22-21 SR M4-IP15-MT SR M10X25 DIN912 BLD IP15/S7 SW6-SD MTF D063-4-22-30 SR M5-IP25-MT SR M10X25 DIN912 BLD IP25/S7 SW6-T MTF D080-4-27-30 SR M5-IP25-MT SR M12X25 DIN 912 BLD IP25/S7 SW6-T MTF D080-4-27-40 SR M5-IP25-MT SR M12X25 DIN 912 BLD IP25/S7 SW6-T MTF D100-4-32-30 SR M5-IP25-MT SR M16X30 DIN912 BLD IP25/S7 SW6-T MTF D100-8-32-30 SR M5-IP25-MT SR M16X30 DIN912 BLD IP25/S7 SW6-T MTF D100-4-32-40 SR M5-IP25-MT SR M16X30 DIN912 BLD IP25/S7 SW6-T 475
