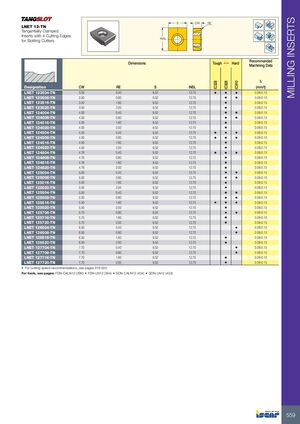

MILLING INSERTS S CW RE LNET 12-TN Tangentially Clamped Inserts with 4 Cutting Edges INSL for Slotting Cutters Recommended Dimensions Tough 1 Hard Machining Data fz IC328 IC928 IC910 Designation CW RE S INSL (mm/t) LNET 123504-TN 3.50 0.40 9.52 12.70 • • • 0.06-0.15 LNET 123508-TN 3.50 0.80 9.52 12.70 • • 0.06-0.15 LNET 123516-TN 3.50 1.60 9.52 12.70 • 0.06-0.15 LNET 123520-TN 3.50 2.00 9.52 12.70 • 0.06-0.15 LNET 124004-TN 4.00 0.40 9.52 12.70 • • 0.06-0.15 LNET 124008-TN 4.00 0.80 9.52 12.70 • • 0.06-0.15 LNET 124016-TN 4.00 1.60 9.52 12.70 • 0.06-0.15 LNET 124020-TN 4.00 2.00 9.52 12.70 • 0.06-0.15 LNET 124504-TN 4.50 0.40 9.52 12.70 • • • 0.06-0.15 LNET 124508-TN 4.50 0.80 9.52 12.70 • • • 0.06-0.15 LNET 124516-TN 4.50 1.60 9.52 12.70 • 0.06-0.15 LNET 124520-TN 4.50 2.00 9.52 12.70 • 0.06-0.15 LNET 124804-TN 4.76 0.40 9.52 12.70 • • • 0.06-0.15 LNET 124808-TN 4.76 0.80 9.52 12.70 • 0.06-0.15 LNET 124816-TN 4.76 1.60 9.52 12.70 • 0.06-0.15 LNET 124820-TN 4.76 2.00 9.52 12.70 • 0.06-0.15 LNET 125004-TN 5.00 0.40 9.52 12.70 • • 0.06-0.15 LNET 125008-TN 5.00 0.80 9.52 12.70 • • 0.06-0.15 LNET 125016-TN 5.00 1.60 9.52 12.70 • 0.06-0.15 LNET 125020-TN 5.00 2.00 9.52 12.70 • 0.06-0.15 LNET 125504-TN 5.50 0.40 9.52 12.70 • • 0.06-0.15 LNET 125508-TN 5.50 0.80 9.52 12.70 • • 0.06-0.15 LNET 125516-TN 5.50 1.60 9.52 12.70 • • • 0.06-0.15 LNET 125520-TN 5.50 2.00 9.52 12.70 • 0.06-0.15 LNET 125708-TN 5.75 0.80 9.52 12.70 • • 0.06-0.15 LNET 125716-TN 5.75 1.60 9.52 12.70 • 0.06-0.15 LNET 125720-TN 5.75 2.00 9.52 12.70 • 0.06-0.15 LNET 126504-TN 6.50 0.40 9.52 12.70 • 0.06-0.15 LNET 126508-TN 6.50 0.80 9.52 12.70 • 0.06-0.15 LNET 126516-TN 6.50 1.60 9.52 12.70 • 0.06-0.15 LNET 126520-TN 6.50 2.00 9.52 12.70 • 0.06-0.15 LNET 127704-TN 7.70 0.40 9.52 12.70 • 0.06-0.15 LNET 127708-TN 7.70 0.80 9.52 12.70 • 0.06-0.15 LNET 127716-TN 7.70 1.60 9.52 12.70 • 0.06-0.15 LNET 127720-TN 7.70 2.00 9.52 12.70 • 0.06-0.15 • For cutting speed recommendations, see pages 616-620 For tools, see pages: FDN-CALN12 (396) • FDN-LN12 (394) • SDN-CALN12 (404) • SDN-LN12 (403) 559
