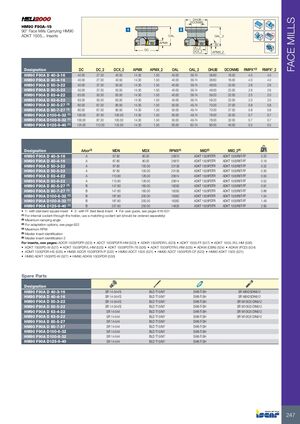

FACE MILLS DHUB DCONMS HM90 F90A-15 90° Face Mills Carrying HM90 1 2 Rd° ADKT 1505... Inserts OAL OAL_2 APMX 18° DC_2 DC DCX_2 APMX_2 Designation DC DC_2 DCX_2 APMX APMX_2 OAL OAL_2 DHUB DCONMS RMPX°(2) RMPX°_2 HM90 F90A D 40-3-16 40.00 27.30 40.50 14.30 1.50 40.00 39.74 38.60 16.00 4.0 4.0 HM90 F90A D 40-4-16 40.00 27.30 40.50 14.30 1.50 40.00 39.74 38.60 16.00 4.0 4.0 HM90 F90A D 50-3-22 50.00 37.30 50.50 14.30 1.50 40.00 39.74 48.00 22.00 2.6 2.6 HM90 F90A D 50-5-22 50.00 37.30 50.50 14.30 1.50 40.00 39.74 48.00 22.00 2.6 2.6 HM90 F90A D 63-4-22 63.00 50.30 63.50 14.30 1.50 40.00 39.74 59.20 22.00 2.0 2.0 HM90 F90A D 63-6-22 63.00 50.30 63.50 14.30 1.50 40.00 39.74 59.20 22.00 2.0 2.0 HM90 F90A D 80-5-27 (1) 80.00 67.30 80.50 14.30 1.50 50.00 49.74 70.00 27.00 0.8 0.8 HM90 F90A D 80-7-27 (1) 80.00 67.30 80.50 14.30 1.50 50.00 49.74 70.00 27.00 0.8 0.8 HM90 F90A D100-6-32 (1) 100.00 87.30 100.50 14.30 1.50 50.00 49.74 78.00 32.00 0.7 0.7 HM90 F90A D100-8-32 (1) 100.00 87.30 100.50 14.30 1.50 50.00 49.74 78.00 32.00 0.7 0.7 HM90 F90A D125-9-40 (1) 125.00 112.30 125.50 14.30 1.50 63.00 62.74 90.00 40.00 0.5 0.5 kg Designation Arbor(3) MDN MDX RPMX(4) MIID(5) MIID_2(6) HM90 F90A D 40-3-16 A 67.80 80.00 25870 ADKT 1505PDTR ADKT 1505R8T-FF 0.20 HM90 F90A D 40-4-16 A 67.80 80.00 25870 ADKT 1505PDTR ADKT 1505R8T-FF 0.19 HM90 F90A D 50-3-22 A 87.80 100.00 23139 ADKT 1505PDTR ADKT 1505R8T-FF 0.32 HM90 F90A D 50-5-22 A 87.80 100.00 23139 ADKT 1505PDTR ADKT 1505R8T-FF 0.30 HM90 F90A D 63-4-22 A 113.80 126.00 20614 ADKT 1505PDTR ADKT 1505R8T-FF 0.55 HM90 F90A D 63-6-22 A 113.80 126.00 20614 ADKT 1505PDTR ADKT 1505R8T-FF 0.52 HM90 F90A D 80-5-27 (1) B 147.80 160.00 18293 ADKT 1505PDTR ADKT 1505R8T-FF 0.91 HM90 F90A D 80-7-27 (1) B 147.80 160.00 19293 ADKT 1505PDTR ADKT 1505R8T-FF 0.88 HM90 F90A D100-6-32 (1) B 187.80 200.00 16362 ADKT 1505PDTR ADKT 1505R8T-FF 1.54 HM90 F90A D100-8-32 (1) B 187.80 200.00 16362 ADKT 1505PDTR ADKT 1505R8T-FF 1.49 HM90 F90A D125-9-40 (1) B 237.80 250.00 14635 ADKT 1505PDTR ADKT 1505R8T-FF 2.95 • 1- with standard square insert • 2- with FF (fast feed) insert • For user guide, see pages 616-621 (1) For internal coolant through the holder, use a matching coolant set (should be ordered separately) (2) Maximum ramping angle (3) For adaptation options, see page 622 (4) Maximum RPM (5) Master insert identification (6) Master insert identification 2 For inserts, see pages: ADCR 1505PDFR (523) • ADCT 1505PDFR-HM (523) • ADKR 1505PDR/L (523) • ADKT 1505-FF (527) • ADKT 1505..R/L-HM (526) • ADKT 1505PD-W (527) • ADKT 1505PDR/L-HM (525) • ADKT 1505PDTR-76 (526) • ADKT 1505PDTR/L-RM (525) • ADKW (CBN) (524) • ADKW (PCD) (524) • ADMT 1505PDR-HS (525) • HM90 ADCR 1505PDFR-P (522) • HM90 ADCT 1505 (521) • HM90 ADCT 1505PDR-CF (522) • HM90 ADKT 1505 (521) • HM90 ADKT 1505PD-W (527) • HM90 ADKW 1505PDR (530) Spare Parts Designation HM90 F90A D 40-3-16 SR 14-544/S BLD T15/M7 SW6-T-SH SR M8X25DIN912 HM90 F90A D 40-4-16 SR 14-544/S BLD T15/M7 SW6-T-SH SR M8X25DIN912 HM90 F90A D 50-3-22 SR 14-544/S BLD T15/M7 SW6-T-SH SR M10X25 DIN912 HM90 F90A D 50-5-22 SR 14-544/S BLD T15/M7 SW6-T-SH SR M10X25 DIN912 HM90 F90A D 63-4-22 SR 14-544 BLD T15/M7 SW6-T-SH SR M10X25 DIN912 HM90 F90A D 63-6-22 SR 14-544 BLD T15/M7 SW6-T-SH SR M10X25 DIN912 HM90 F90A D 80-5-27 SR 14-544 BLD T15/M7 SW6-T-SH HM90 F90A D 80-7-27 SR 14-544 BLD T15/M7 SW6-T-SH HM90 F90A D100-6-32 SR 14-544 BLD T15/M7 SW6-T-SH HM90 F90A D100-8-32 SR 14-544 BLD T15/M7 SW6-T-SH HM90 F90A D125-9-40 SR 14-544 BLD T15/M7 SW6-T-SH 247
