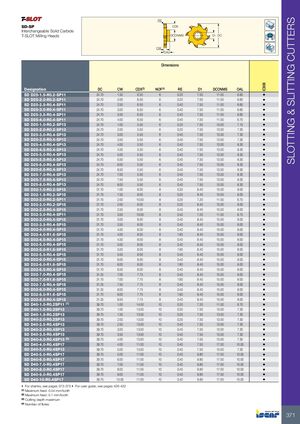

Фрезерные инструменты Iscar 2026 - страница 373

SLOTTING & SLITTING CUTTERS RE SD-SP CDX Interchangeable Solid Carbide T-SLOT Milling Heads DCONMS D1 DC CW OAL Dimensions IC908 Designation DC CW CDX(3) NOF(4) RE D1 DCONMS OAL SD D25-1.5-R0.2-SP11 24.70 1.50 6.50 6 0.20 7.50 11.00 6.60 • SD D25-2.0-R0.2-SP11 24.70 2.00 6.50 6 0.20 7.50 11.00 6.60 • SD D25-2.5-R0.4-SP11 24.70 2.50 6.50 6 0.40 7.50 11.00 6.60 • SD D25-3.0-R0.4-SP11 24.70 3.00 6.50 6 0.40 7.50 11.00 6.60 • SD D25-3.5-R0.4-SP11 24.70 3.50 6.50 6 0.40 7.50 11.00 6.60 • SD D25-4.0-R0.4-SP11 24.70 4.00 6.50 6 0.40 7.50 11.00 6.75 • SD D25-1.0-R0.2-SP13 24.70 1.00 5.50 6 0.20 7.50 13.00 7.15 • SD D25-2.0-R0.2-SP13 24.70 2.00 5.50 6 0.20 7.50 13.00 7.30 • SD D25-3.0-R0.4-SP13 24.70 3.00 5.50 6 0.40 7.50 13.00 7.30 • SD D25-3.5-R0.4-SP13 24.70 3.50 5.50 6 0.40 7.50 13.00 7.30 • SD D25-4.0-R0.4-SP13 24.70 4.00 5.50 6 0.40 7.50 13.00 8.30 • SD D25-4.5-R0.4-SP13 24.70 4.50 5.50 6 0.40 7.50 13.00 8.30 • SD D25-5.0-R0.4-SP13 24.70 5.00 5.50 6 0.40 7.50 13.00 8.30 • SD D25-5.5-R0.4-SP13 24.70 5.50 5.50 6 0.40 7.50 13.00 8.30 • SD D25-6.0-R0.4-SP13 24.70 6.00 5.50 6 0.40 7.50 13.00 8.30 • SD D25-6.5-R0.4-SP13 24.70 6.50 5.50 6 0.40 7.50 13.00 8.30 • SD D25-7.0-R0.4-SP13 24.70 7.00 5.50 6 0.40 7.50 13.00 8.30 • SD D25-7.5-R0.4-SP13 24.70 7.50 5.50 6 0.40 7.50 13.00 8.30 • SD D25-8.0-R0.4-SP13 24.70 8.00 5.50 6 0.40 7.50 13.00 8.30 • SD D32-1.0-R0.2-SP15 31.70 1.00 8.00 8 0.20 8.40 15.00 8.00 • SD D32-1.5-R0.2-SP15 31.70 1.50 8.00 8 0.20 8.40 15.00 8.00 • SD D32-2.0-R0.2-SP11 31.70 2.00 10.00 8 0.20 7.20 11.00 6.75 • SD D32-2.0-R0.2-SP15 31.70 2.00 8.00 8 0.20 8.40 15.00 8.00 • SD D32-2.5-R0.4-SP15 31.70 2.50 8.00 8 0.40 8.40 15.00 8.00 • SD D32-3.0-R0.4-SP11 31.70 3.00 10.00 8 0.40 7.20 11.00 6.75 • SD D32-3.0-R0.4-SP15 31.70 3.00 8.00 8 0.40 8.40 15.00 8.00 • SD D32-3.5-R0.4-SP15 31.70 3.50 8.00 8 0.40 8.40 15.00 8.00 • SD D32-4.0-R0.4-SP15 31.70 4.00 8.00 8 0.40 8.40 15.00 8.00 • SD D32-4.0-R1.6-SP15 31.70 4.00 8.00 8 1.60 8.40 15.00 8.00 • SD D32-4.5-R0.4-SP15 31.70 4.50 8.00 8 0.40 8.40 15.00 8.00 • SD D32-5.0-R0.4-SP15 31.70 5.00 8.00 8 0.40 8.40 15.00 8.00 • SD D32-5.0-R1.6-SP15 31.70 5.00 8.00 8 1.60 8.40 15.00 8.00 • SD D32-5.5-R0.4-SP15 31.70 5.50 8.00 8 0.40 8.40 15.00 8.00 • SD D32-6.0-R0.4-SP15 31.70 6.00 8.00 8 0.40 8.40 15.00 8.00 • SD D32-6.0-R1.6-SP15 31.70 6.00 8.00 8 1.60 8.40 15.00 8.00 • SD D32-6.5-R0.4-SP15 31.70 6.50 8.00 8 0.40 8.40 15.00 8.00 • SD D32-7.0-R0.4-SP15 31.25 7.00 7.75 8 0.40 8.40 15.00 8.00 • SD D32-7.0-R1.6-SP15 31.70 7.00 7.75 8 1.60 8.40 15.00 8.00 • SD D32-7.5-R0.4-SP15 31.25 7.50 7.75 8 0.40 8.40 15.00 8.00 • SD D32-8.0-R0.4-SP15 31.25 8.00 7.75 8 0.40 8.40 15.00 8.00 • SD D32-8.0-R1.6-SP15 31.70 8.00 7.75 8 1.60 8.40 15.00 8.00 • SD D32-8.5-R0.4-SP15 31.25 8.50 7.75 8 0.40 8.40 15.00 8.00 • SD D40-1.0-R0.2SP11 (1) 39.70 1.00 14.00 10 0.20 7.20 11.00 6.70 • SD D40-1.0-R0.2SP13 39.70 1.00 13.00 10 0.20 7.50 13.00 7.30 • SD D40-1.5-R0.2SP13 39.70 1.50 13.00 10 0.20 7.50 13.00 7.30 • SD D40-2.0-R0.2SP13 39.70 2.00 13.00 10 0.20 7.50 13.00 7.30 • SD D40-2.5-R0.4SP13 39.70 2.50 13.00 10 0.40 7.50 13.00 7.30 • SD D40-3.0-R0.4SP13 39.70 3.00 13.00 10 0.40 7.50 13.00 7.30 • SD D40-3.5-R0.4SP13 39.70 3.50 13.00 10 0.40 7.50 13.00 7.30 • SD D40-4.0-R0.4SP13 (2) 39.70 4.00 13.00 10 0.40 7.50 13.00 7.30 • SD D40-4.0-R0.4SP17 39.70 4.00 11.00 10 0.40 7.50 17.00 10.00 • SD D40-5.0-R0.4SP13 39.70 5.00 13.00 10 0.40 7.50 13.00 7.30 • SD D40-5.0-R0.4SP17 39.70 5.00 11.00 10 0.40 9.80 17.00 10.00 • SD D40-6.0-R0.4SP17 39.70 6.00 11.00 10 0.40 9.80 17.00 10.00 • SD D40-7.0-R0.4SP17 39.70 7.00 11.00 10 0.40 9.80 17.00 10.00 • SD D40-8.0-R0.4SP17 39.70 8.00 11.00 10 0.40 9.80 17.00 10.00 • SD D40-9.0-R0.4SP17 39.70 9.00 11.00 10 0.40 9.80 17.00 10.00 • SD D40-10-R0.4SP17 39.70 10.00 11.00 10 0.40 9.80 17.00 10.00 • • For shanks, see pages 373-375 • For user guide, see pages 426-432 (1) Maximum feed: 0.04 mm/tooth (2) Maximum feed: 0.1 mm/tooth (3) Cutting depth maximum (4) Number of flutes 371
