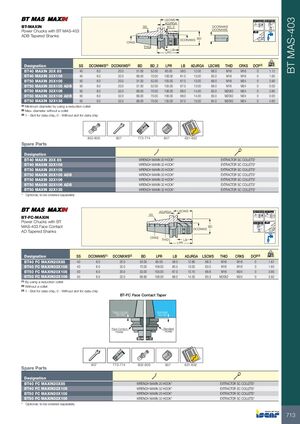

Фрезерные инструменты Iscar 2026 - страница 715

BT MAS-403 LSCWS A 0.003 A 58-60 HRc ADJRGA BT-MAXIN SS BD_2 DCONNWS Power Chucks with BT MAS-403 DCONXWS √N5 ADB Tapered Shanks DCONXWS BD CRKS THID LB LPR kg Designation SS DCONNWS(1) DCONXWS(2) BD BD_2 LPR LB ADJRGA LSCWS THID CRKS DCP(3) BT40 MAXIN 20X 85 40 6.0 20.0 51.00 52.00 85.00 58.0 12.00 68.0 M16 M16 0 1.12 BT40 MAXIN 32X108 40 6.0 32.0 69.00 70.00 108.00 81.0 13.00 83.0 M16 M16 0 1.60 BT50 MAXIN 20X105 50 6.0 20.0 51.00 52.00 105.00 67.0 13.00 69.0 M16 M24 0 3.90 BT50 MAXIN 20X105 ADB 50 6.0 20.0 51.00 52.00 105.00 67.0 13.00 69.0 M16 M24 0 0.00 BT50 MAXIN 32X106 50 6.0 32.0 69.00 70.00 106.00 68.0 14.00 83.0 M20X2 M24 0 3.80 BT50 MAXIN 32X106 ADB 50 6.0 32.0 69.00 70.00 106.00 68.0 14.00 83.0 M20X2 M24 0 0.00 BT50 MAXIN 32X135 50 6.0 32.0 69.00 70.00 135.00 97.0 15.00 84.0 M20X2 M24 0 4.60 (1) Minimum diameter by using a reduction collet (2) Max. diameter without a collet (3) 1 - Slot for data chip, 0 - Without slot for data chip 802-805 807 773-774 807 631-632 Spare Parts Designation BT40 MAXIN 20X 85 WRENCH MAXIN 20 HOOK* EXTRACTOR SC COLLETS* BT40 MAXIN 32X108 WRENCH MAXIN 32 HOOK* EXTRACTOR SC COLLETS* BT50 MAXIN 20X105 WRENCH MAXIN 20 HOOK* EXTRACTOR SC COLLETS* BT50 MAXIN 20X105 ADB WRENCH MAXIN 20 HOOK* EXTRACTOR SC COLLETS* BT50 MAXIN 32X106 WRENCH MAXIN 32 HOOK* EXTRACTOR SC COLLETS* BT50 MAXIN 32X106 ADB WRENCH MAXIN 32 HOOK* EXTRACTOR SC COLLETS* BT50 MAXIN 32X135 WRENCH MAXIN 32 HOOK* EXTRACTOR SC COLLETS* * Optional, to be ordered separately ADJRGA LSCWS A 0.003 A AT3 Taper SS BT-FC-MAXIN Power Chucks with BT 58-60 HRc √N5 MAS-403 Face Contact BD DCONWS AD Tapered Shanks CRKS THID LB LPR kg Designation SS DCONNWS(1) DCONXWS(2) BD LPR LB ADJRGA LSCWS THID CRKS DCP(3) BT40 FC MAXIN20X85 40 6.0 20.0 53.00 85.00 58.0 12.80 68.3 M16 M16 0 1.67 BT40 FC MAXIN32X108 40 6.0 32.0 70.00 108.00 80.5 13.00 83.0 M16 M16 0 1.65 BT50 FC MAXIN20X105 50 6.0 20.0 53.00 105.00 67.0 13.10 68.6 M16 M24 0 3.80 BT50 FC MAXIN32X106 50 6.0 32.0 69.90 106.00 68.0 14.30 83.3 M20X2 M24 0 3.92 (1) By using a reduction collet (2) Without a collet (3) 1 - Slot for data chip, 0 - Without slot for data chip BT-FC Face Contact Taper Face Contact Standard Spindle Spindle Face Contact Standard Holder Holder 807 773-774 802-805 807 631-632 Spare Parts Designation BT40 FC MAXIN20X85 WRENCH MAXIN 20 HOOK* EXTRACTOR SC COLLETS* BT40 FC MAXIN32X108 WRENCH MAXIN 32 HOOK* EXTRACTOR SC COLLETS* BT50 FC MAXIN20X105 WRENCH MAXIN 20 HOOK* EXTRACTOR SC COLLETS* BT50 FC MAXIN32X106 WRENCH MAXIN 32 HOOK* EXTRACTOR SC COLLETS* * Optional, to be ordered separately 713
