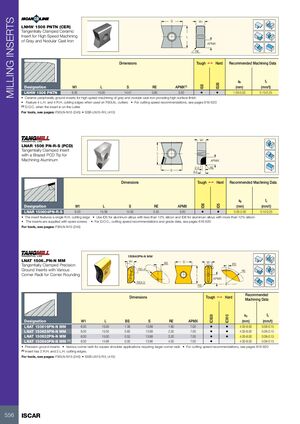

MILLING INSERTS S W1 LNHW 1506 PNTN (CER) Tangentially Clamped Ceramic Insert for High Speed Machining L of Gray and Nodular Cast Iron APMX RE Dimensions Tough 1 Hard Recommended Machining Data ap fz IS26 IS8 Designation W1 L S RE APMX(1) (mm) (mm/t) LNHW 1506 PNTN 6.00 15.00 14.47 0.80 5.00 • • 1.00-5.00 0.15-0.25 • Ceramic peripherally ground inserts for high speed machining of grey and nodular cast iron providing high surface finish • Feature 4 L.H. and 4 R.H. cutting edges when used on F90LN.. cutters • For cutting speed recommendations, see pages 616-620 (1) D.O.C. when the insert is on the cutter For tools, see pages: F90LN-N15 (245) • SSB-LN15-R/L (410) W1 LNAR 1506 PN-R-S (PCD) Tangentially Clamped Insert L with a Brazed PCD Tip for Machining Aluminum APMX 2.0 RE S 4.5 Dimensions Tough 1 Hard Recommended Machining Data ap fz ID8 ID5 Designation W1 L S RE APMX (mm) (mm/t) LNAR 150604PN-R-S 6.00 15.06 14.00 0.40 5.00 • • 0.05-2.00 0.10-0.25 • The insert features a single R.H. cutting edge • Use ID5 for aluminum alloys with less than 12% silicon and ID8 for aluminum alloys with more than 12% silicon • The inserts are supplied with spare screws • For D.O.C., cutting speed recommendations and grade data, see pages 616-620 For tools, see pages: F90LN-N15 (245) 150640PN-N MM LNAT 1506..PN-N MM W1 S W1 BS BS Tangentially Clamped Precision Ground Inserts with Various RE=4 RE Corner Radii for Corner Rounding L APMX RE4.0 RE Recommended Dimensions Tough 1 Hard Machining Data ap fz IC928 IC910 Designation W1 L BS S RE APMX (mm) (mm/t) LNAT 150616PN-N MM 6.00 15.00 1.39 13.88 1.60 7.00 • • 4.00-8.00 0.08-0.15 LNAT 150625PN-N MM 6.00 15.00 0.60 13.88 2.50 7.00 • • 4.00-8.00 0.08-0.15 LNAT 150632PN-N MM 6.00 15.00 0.53 13.88 3.20 7.00 • • 4.00-8.00 0.08-0.15 LNAT 150640PN-N MM (1) 6.00 14.98 0.00 13.96 4.00 7.00 • 4.00-8.00 0.08-0.15 • Precision ground inserts • Various corner radii for square shoulder applications requiring larger corner radii • For cutting speed recommendations, see pages 616-620 (1) Insert has 2 R.H. and 2 L.H. cutting edges. For tools, see pages: F90LN-N15 (245) • SSB-LN15-R/L (410) 556 ISCAR
