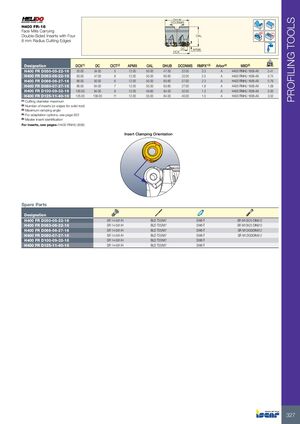

Фрезерные инструменты Iscar 2026 - страница 329

PROFILING TOOLS DHUB DCONMS H400 FR-16 Face Mills Carrying Rd° Double-Sided Inserts with Four OAL 8 mm Radius Cutting Edges DC APMX DCX kg Designation DCX(1) DC CICT(2) APMX OAL DHUB DCONMS RMPX°(3) Arbor(4) MIID(5) H400 FR D050-05-22-16 50.00 34.00 5 12.00 50.00 47.00 22.00 3.3 A H400 RNHU 1606-AX 0.41 H400 FR D063-06-22-16 63.00 47.00 6 12.00 50.00 60.60 22.00 2.5 A H400 RNHU 1606-AX 0.74 H400 FR D066-06-27-16 66.00 50.00 6 12.00 50.00 60.60 27.00 2.3 A H400 RNHU 1606-AX 0.79 H400 FR D080-07-27-16 80.00 64.00 7 12.00 50.00 63.60 27.00 1.8 A H400 RNHU 1606-AX 1.09 H400 FR D100-09-32-16 100.00 84.00 9 12.00 49.60 84.00 32.00 1.3 A H400 RNHU 1606-AX 0.00 H400 FR D125-11-40-16 125.00 109.00 11 12.00 55.00 84.00 40.00 1.0 A H400 RNHU 1606-AX 3.02 (1) Cutting diameter maximum (2) Number of inserts (or edges for solid tool) (3) Maximum ramping angle (4) For adaptation options, see page 622 (5) Master insert identification For inserts, see pages: H400 RNHU (606) Insert Clamping Orientation Spare Parts Designation H400 FR D050-05-22-16 SR 14-591/H BLD T20/M7 SW6-T SR M10X25 DIN912 H400 FR D063-06-22-16 SR 14-591/H BLD T20/M7 SW6-T SR M10X25 DIN912 H400 FR D066-06-27-16 SR 14-591/H BLD T20/M7 SW6-T SR M12X30DIN912 H400 FR D080-07-27-16 SR 14-591/H BLD T20/M7 SW6-T SR M12X30DIN912 H400 FR D100-09-32-16 SR 14-591/H BLD T20/M7 SW6-T H400 FR D125-11-40-16 SR 14-591/H BLD T20/M7 SW6-T 327
