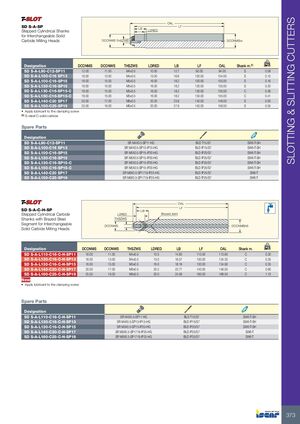

SLOTTING & SLITTING CUTTERS OAL SD S-A-SP LB LF Stepped Cylindrical Shanks LDRED for Interchangeable Solid Carbide Milling Heads DCONWS THSZWS DCONMSh6 kg Designation DCONMS DCONWS THSZWS LDRED LB LF OAL Shank m.(1) SD S-A-L90-C12-SP11 12.00 11.00 M4x0.5 10.50 12.7 90.00 94.00 S 0.08 SD S-A-L100-C16 SP13 16.00 13.00 M4x0.5 13.00 16.6 100.00 104.00 S 0.15 SD S-A-L100-C16-SP15 16.00 15.00 M5x0.5 16.00 18.2 100.00 105.00 S 0.16 SD S-A-L130-C16-SP15 16.00 15.00 M5x0.5 16.00 18.2 130.00 135.00 S 0.20 SD S-A-L130-C16-SP15-C 16.00 15.00 M5x0.5 16.00 18.2 130.00 135.00 C 0.36 SD S-A-L150-C16-SP15-C 16.00 15.00 M5x0.5 16.00 18.2 150.00 155.00 C 0.41 SD S-A-L140-C20 SP17 20.00 17.00 M6x0.5 20.20 23.8 140.00 146.00 S 0.00 SD S-A-L150-C25-SP19 25.00 19.00 M6x0.5 20.00 27.9 150.00 158.50 S 0.55 • Apply lubricant to the clamping screw (1) S-steel C-solid carbide Spare Parts Designation SD S-A-L90-C12-SP11 SR M4X0.5-SP11 HG BLD T15/S7 SW6-T-SH SD S-A-L100-C16 SP13 SR M4X0.5-SP13-IP15-HG BLD IP15/S7 SW6-T-SH SD S-A-L100-C16-SP15 SR M5X0.5-SP15-IP20-HG BLD IP20/S7 SW6-T-SH SD S-A-L130-C16-SP15 SR M5X0.5-SP15-IP20-HG BLD IP20/S7 SW6-T-SH SD S-A-L130-C16-SP15-C SR M5X0.5-SP15-IP20-HG BLD IP20/S7 SW6-T-SH SD S-A-L150-C16-SP15-C SR M5X0.5-SP15-IP20-HG BLD IP20/S7 SW6-T-SH SD S-A-L140-C20 SP17 SR M6X0.5-SP1719-IP25-HG BLD IP25/S7 SW6-T SD S-A-L150-C25-SP19 SR M6X0.5-SP1719-IP25-HG BLD IP25/S7 SW6-T OAL LF SD S-A-C-H-SP LB Stepped Cylindrical Carbide LDRED Brazed Joint Shanks with Brazed Steel THSZWS Segment for Interchangeable DCONWS DCONMSh6 Solid Carbide Milling Heads kg Designation DCONMS DCONWS THSZWS LDRED LB LF OAL Shank m. SD S-A-L110-C16-C-H-SP11 16.00 11.00 M4x0.5 10.5 14.83 110.00 113.85 C 0.30 SD S-A-L130-C16-C-H-SP13 16.00 13.00 M4x0.5 13.0 16.57 130.00 134.35 C 0.35 SD S-A-L130-C16-C-H-SP15 16.00 15.00 M5x0.5 16.0 18.18 130.00 134.90 C 0.35 SD S-A-L140-C20-C-H-SP17 20.00 17.00 M6x0.5 20.2 23.77 140.00 146.00 C 0.60 SD S-A-L160-C25-C-H-SP19 25.00 19.00 M6x0.5 20.0 24.58 160.00 168.50 C 1.10 New • Apply lubricant to the clamping screw Spare Parts Designation SD S-A-L110-C16-C-H-SP11 SR M4X0.5-SP11 HG BLD T15/S7 SW6-T-SH SD S-A-L130-C16-C-H-SP13 SR M4X0.5-SP13-IP15-HG BLD IP15/S7 SW6-T-SH SD S-A-L130-C16-C-H-SP15 SR M5X0.5-SP15-IP20-HG BLD IP20/S7 SW6-T-SH SD S-A-L140-C20-C-H-SP17 SR M6X0.5-SP1719-IP25-HG BLD IP25/S7 SW6-T SD S-A-L160-C25-C-H-SP19 SR M6X0.5-SP1719-IP25-HG BLD IP25/S7 SW6-T 373
