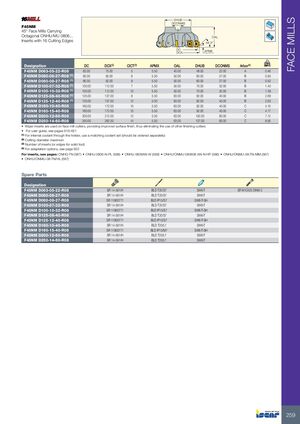

FACE MILLS DHUB DCONMS F45NM 45° Face Mills Carrying Octagonal ONHU/MU 0806... OAL Inserts with 16 Cutting Edges 44.3° DC APMX DCX kg Designation DC DCX(2) CICT(3) APMX OAL DHUB DCONMS Arbor(4) F45NM D063-05-22-R08 63.00 75.00 5 5.50 40.00 48.00 22.00 A 0.46 F45NM D080-06-27-R08 (1) 80.00 92.00 6 5.50 50.00 60.00 27.00 B 0.95 F45NM D080-08-27-R08 (1) 80.00 92.00 8 5.50 50.00 60.00 27.00 B 0.92 F45NM D100-07-32-R08 (1) 100.00 112.00 7 5.50 50.00 70.00 32.00 B 1.40 F45NM D100-10-32-R08 (1) 100.00 112.00 10 5.50 50.00 70.00 32.00 B 1.39 F45NM D125-08-40-R08 (1) 125.00 137.00 8 5.50 63.00 82.00 40.00 B 2.68 F45NM D125-12-40-R08 (1) 125.00 137.00 12 5.50 63.00 82.00 40.00 B 2.63 F45NM D160-10-40-R08 160.00 172.00 10 5.50 63.00 92.00 40.00 C 4.10 F45NM D160-15-40-R08 160.00 172.00 15 5.50 63.00 92.00 40.00 C 4.17 F45NM D200-12-60-R08 200.00 212.00 12 5.50 63.00 150.00 60.00 C 7.12 F45NM D250-14-60-R08 250.00 262.00 14 5.50 63.00 137.00 60.00 C 8.95 • Wiper inserts are used on face mill cutters, providing improved surface finish, thus eliminating the use of other finishing cutters • For user guide, see pages 616-621 (1) For internal coolant through the holder, use a matching coolant set (should be ordered separately) (2) Cutting diameter maximum (3) Number of inserts (or edges for solid tool) (4) For adaptation options, see page 622 For inserts, see pages: ONHQ-TN (587) • ONHU 0806-N-PL (588) • ONHU 0806AN-W (588) • ONHU/ONMU 080608 AN-N-HP (588) • ONHU/ONMU-08-TN-MM (587) • ONHU/ONMU-08-TN/HL (587) Spare Parts Designation F45NM D063-05-22-R08 SR 14-591/H BLD T20/S7 SW6-T SR M10X25 DIN912 F45NM D080-06-27-R08 SR 14-591/H BLD T20/S7 SW6-T F45NM D080-08-27-R08 SR 11800771 BLD IP15/S7 SW6-T-SH F45NM D100-07-32-R08 SR 14-591/H BLD T20/S7 SW6-T F45NM D100-10-32-R08 SR 11800771 BLD IP15/S7 SW6-T-SH F45NM D125-08-40-R08 SR 14-591/H BLD T20/S7 SW6-T F45NM D125-12-40-R08 SR 11800771 BLD IP15/S7 SW6-T-SH F45NM D160-10-40-R08 SR 14-591/H BLD T20/L7 SW6-T F45NM D160-15-40-R08 SR 11800771 BLD IP15/M7 SW6-T-SH F45NM D200-12-60-R08 SR 14-591/H BLD T20/L7 SW6-T F45NM D250-14-60-R08 SR 14-591/H BLD T20/L7 SW6-T 259
