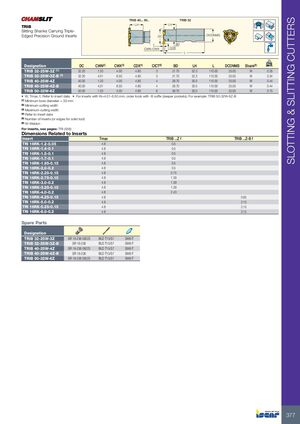

SLOTTING & SLITTING CUTTERS TRIB 40... 50.. TRIB 32 LH LH TRIB Slitting Shanks Carrying Triple- Edged Precision Ground Inserts DC DCONMS f BD CWN-CWX CDX L kg Designation DC CWN(2) CWX(3) CDX(4) CICT(5) BD LH L DCONMS Shank(6) TRIB 32-25W-3Z (1) 32.20 1.20 4.00 4.80 3 21.70 52.3 110.00 25.00 W 0.35 TRIB 32-25W-3Z-B (1) 32.20 4.01 6.50 4.80 3 21.70 52.3 110.00 25.00 W 0.34 TRIB 40-25W-4Z 40.00 1.20 4.00 4.80 4 29.70 30.0 110.00 25.00 W 0.44 TRIB 40-25W-4Z-B 40.00 4.01 6.50 4.80 4 29.70 30.0 110.00 25.00 W 0.44 TRIB 50-32W-6Z 50.00 1.20 4.00 4.80 6 39.70 30.0 110.00 32.00 W 0.75 • W, Tmax, f, Refer to insert data • For inserts with W=4.01-6.50 mm, order tools with -B suffix (deeper pockets). For example: TRIB 50-32W-6Z-B (1) Minimum bore diameter = 33 mm (2) Minimum cutting width (3) Maximum cutting width (4) Refer to insert data (5) Number of inserts (or edges for solid tool) (6) W-Weldon For inserts, see pages: TRI (558) Dimensions Related to Inserts Insert Tmax TRIB ...Z f TRIB ...Z-B f TRI 16RK-1.2-0.05 4.6 0.5 TRI 16RK-1.4-0.1 4.8 0.5 TRI 16RK-1.5-0.1 4.8 0.5 TRI 16RK-1.7-0.1 4.8 0.5 TRI 16RK-1.95-0.15 4.8 0.5 TRI 16RK-2.0-0.2 4.8 0.5 TRI 16RK-2.25-0.15 4.8 0.75 TRI 16RK-2.75-0.15 4.8 1.39 TRI 16RK-3.0-0.2 4.8 1.39 TRI 16RK-3.25-0.15 4.8 1.39 TRI 16RK-4.0-0.2 4.8 2.43 TRI 16RK-4.25-0.15 4.8 0.95 TRI 16RK-5.0-0.2 4.8 2.15 TRI 16RK-5.25-0.15 4.8 2.15 TRI 16RK-6.0-0.2 4.8 3.15 Spare Parts Designation TRIB 32-25W-3Z SR 16-236 08223 BLD T15/S7 SW6-T TRIB 32-25W-3Z-B SR 16-236 BLD T15/S7 SW6-T TRIB 40-25W-4Z SR 16-236 08223 BLD T15/S7 SW6-T TRIB 40-25W-4Z-B SR 16-236 BLD T15/S7 SW6-T TRIB 50-32W-6Z SR 16-236 08223 BLD T15/S7 SW6-T 377
