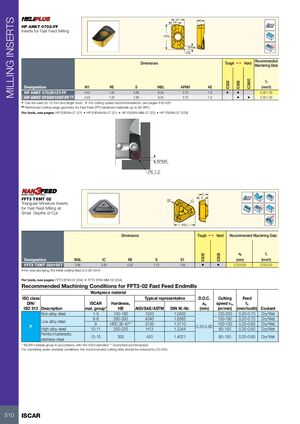

MILLING INSERTS W1 S AE HP ANKT 0702-FF Inserts for Fast Feed Milling INSL Rd° APMX RE Recommended Dimensions Tough 1 Hard Machining Data fz IC5600 IC830 IC808 Designation W1 RE S INSL APMX AE (mm/t) HP ANKT 0702R12T-FF 4.40 1.20 2.60 8.55 0.70 1.9 • • 0.30-1.00 HP ANKT 0702R12GT-FF (1) 4.40 1.20 2.60 8.55 0.70 1.9 • • 0.30-1.00 • Can be used on 12 mm and larger tools • For cutting speed recommendations, see pages 616-620 (1) Reinforced cutting-edge geometry for Fast Feed (FF) hardened materials up to 60 HRC For tools, see pages: HP E90AN-07 (21) • HP E90AN-M-07 (21) • HP E90AN-MM-07 (22) • HP F90AN-07 (229) APMX RE 1.2 S1 FFT3 TXMT 02 S RE IC Triangular Miniature Inserts Rd° for Fast Feed Milling at Small Depths of Cut INSL Dimensions Tough 1 Hard Recommended Machining Data ap fz IC830 IC808 Designation INSL IC RE S S1 (mm) (mm/t) FFT3 TXMT 020105T 3.66 2.00 0.50 1.10 1.56 • • 0.20-0.60 0.20-0.45 • For side plunging, the initial cutting feed is 0.06 mm/t For tools, see pages: FFT3 EFM-02 (334) • FFT3 EFM-MM 02 (334) Recommended Machining Conditions for FFT3-02 Fast Feed Endmills Workpiece material ISO class Typical representative D.O.C. Cutting Feed DIN/ ISCAR Hardness, ap speed vc, fz ISO 513 Description mat. group* HB AISI/SAE/ASTM DIN W.-Nr. (mm) (m/min) (mm/tooth) Coolant Non-alloy steel 1-5 130-180 1020 1.0402 120-200 0.20-0.70 Dry/Wet 6-8 260-300 4340 1.6582 100-180 0.20-0.70 Dry/Wet Low alloy steel 9 HRC 35-42** 3135 1.5710 100-130 0.20-0.60 Dry/Wet P 0.20-0.60 High alloy steel 10-11 200-220 H13 1.2344 80-150 0.20-0.60 Dry/Wet Ferritic/martensitic 12-13 200 420 1.4021 80-150 0.20-0.60 Dry/Wet stainless steel * ISCAR material group in accordance with VDI 3323 standard ** Quenched and tempered For machining under unstable conditions, the recommended cutting data should be reduced by 20-30% 510 ISCAR
