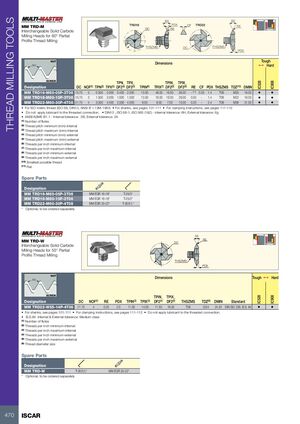

THREAD MILLING TOOLS 60 60 TRD16 PDX CF TRD22 MM TRD-M RE RE DC Interchangeable Solid Carbide Milling Heads for 60° Partial Profile Thread Milling THSZMS DC THSZMS PDX NUT Tough Dimensions 60° 1 Hard SCREW TPN_ TPX_ TPIN_ TPIX_ IC528 IC908 Designation DC NOF(1) TPN(2) TPX(3) DF2(4) DF2(5) TPIN(6) TPIX(7) DF2(8) DF2(9) RE CF PDX THSZMS TDZ(10) DMIN MM TRD16-M60-05P-3T06 15.70 3 0.500 2.000 0.400 2.000 13.00 48.00 16.00 56.00 - (11) 0.05 1.4 T06 M20 19.05 • • MM TRD16-M60-15P-3T06 15.70 3 1.500 2.000 1.000 1.500 13.00 16.00 16.00 28.00 0.05 - 1.4 T06 M22 19.05 • • MM TRD22-M60-30P-4T08 21.70 4 3.000 4.500 2.500 4.000 6.00 9.00 7.00 10.00 0.20 - 2.4 T08 M36 31.00 • • • For ISO metric thread (ISO 68, DIN13, ANSI B 1.13M-1983) • For shanks, see pages 101-111 • For clamping instructions, see pages 111-112 • Do not apply lubricant to the threaded connection. • DIN13 , ISO 68-1, ISO 965 (1&2) - Internal tolerance: 6H, External tolerance: 6g • ANSI/ASME B1.1 - Internal tolerance: 2B, External tolerance: 2A (1) Number of flutes (2) Thread pitch minimum (mm)-internal (3) Thread pitch maximum (mm)-internal (4) Thread pitch minimum (mm)-external (5) Thread pitch maximum (mm)-external (6) Threads per inch minimum-internal (7) Threads per inch maximum-internal (8) Threads per inch minimum-external (9) Threads per inch maximum-external (10) Smallest possible thread (11) Flat Spare Parts Designation MM TRD16-M60-05P-3T06 MM EGR 16-18* T-25/3* MM TRD16-M60-15P-3T06 MM EGR 16-18* T-25/3* MM TRD22-M60-30P-4T08 MM EGR 20-22* T-30/3 L* * Optional, to be ordered separately 55 RE MM TRD-W DC Interchangeable Solid Carbide Milling Heads for 55° Partial Profile Thread Milling THSZMS PDX NUT 55° Dimensions Tough 1 Hard SCREW TPIN_ TPIX_ IC528 IC908 Designation DC NOF(1) RE PDX TPIN(2) TPIX(3) DF2(4) DF2(5) THSZMS TDZ(6) DMIN Standard MM TRD22-W55-14P-4T08 21.70 4 0.20 2.0 11.00 14.00 11.50 16.00 T08 G3/4 24.20 DIN ISO 228, B.S. 84 • • • For shanks, see pages 101-111 • For clamping instructions, see pages 111-112 • Do not apply lubricant to the threaded connection. • B.S.84 Internal & External tolerance: Medium class (1) Number of flutes (2) Threads per inch minimum-internal (3) Threads per inch maximum-internal (4) Threads per inch minimum-external (5) Threads per inch maximum-external (6) Thread diameter size Spare Parts Designation MM TRD-W T-30/3 L* MM EGR 20-22* * Optional, to be ordered separately 470 ISCAR
