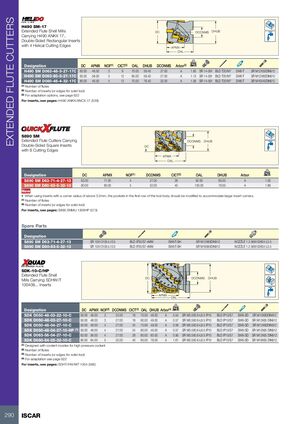

Фрезерные инструменты Iscar 2026 - страница 292

EXTENDED FLUTE CUTTERS H490 SM-17 Extended Flute Shell Mills DC DCONMS DHUB Carrying H490 ANKX 17.. Double-Sided Rectangular Inserts with 4 Helical Cutting Edges APMX OAL kg Designation DC APMX NOF(1) CICT(2) OAL DHUB DCONMS Arbor(3) H490 SM D063-48-3-27-17C 63.00 46.50 3 9 70.00 59.40 27.00 A 1.93 SR 14-591 BLD T20/M7 SW6-T SR M12X50DIN912 H490 SM D063-60-3-27-17C 63.00 58.50 3 12 85.00 59.40 27.00 A 1.13 SR 14-591 BLD T20/M7 SW6-T SR M12X60DIN912 H490 SM D080-48-4-32-17C 80.00 46.50 4 12 70.00 76.40 32.00 A 1.56 SR 14-591 BLD T20/M7 SW6-T SR M16X40DIN912 (1) Number of flutes (2) Number of inserts (or edges for solid tool) (3) For adaptation options, see page 622 For inserts, see pages: H490 ANKX/ANCX-17 (539) S890 SM Extended Flute Cutters Carrying DCONMS DHUB Double-Sided Square Inserts DC with 8 Cutting Edges APMX OAL kg Designation DC APMX NOF(1) DCONMS CICT(2) OAL DHUB Arbor S890 SM D63-71-4-27-13 63.00 71.00 4 27.00 28 92.00 60.00 A 1.50 S890 SM D80-83-5-32-13 80.00 83.00 5 32.00 40 100.00 78.00 A 1.89 New • When using inserts with a corner radius of above 3.2mm, the pockets in the first row of the tool body should be modified to accommodate larger insert corners. (1) Number of flutes (2) Number of inserts (or edges for solid tool) For inserts, see pages: S890 SNMU 1306HP (573) Spare Parts Designation S890 SM D63-71-4-27-13 SR 10513105-L10.5 BLD IP20/S7-4MM SW6-T-SH SR M12X80DIN912 NOZZLE 1.2 569102604 L5.5 S890 SM D80-83-5-32-13 SR 10513105-L10.5 BLD IP20/S7-4MM SW6-T-SH SR M16X84DIN912 NOZZLE 1.2 569102604 L5.5 SDK-10-C/HP Extended Flute Shell DC DCONMS DHUB Mills Carrying SDHW/T 100408... Inserts APMX OAL Designation DC APMX NOF(2) DCONMS CICT(3) OAL DHUB Arbor(4) kg SDK D050-48-03-22-10-C 50.00 48.00 3 22.00 18 75.00 48.00 A 0.54 SR M3.5X0.6-L8.5 IP10 BLD IP10/S7 SW6-SD SR M10X60DIN912 SDK D050-48-03-27-10-C 50.00 48.00 3 27.00 18 80.00 49.00 A 0.57 SR M3.5X0.6-L8.5 IP10 BLD IP10/S7 SW6-SD SR M12X65 DIN912 SDK D050-48-04-27-10-C 50.00 48.00 4 27.00 24 75.90 49.00 A 0.56 SR M3.5X0.6-L8.5 IP10 BLD IP10/S7 SW6-SD SR M12X60DIN912 SDK D050-48-04-27-10-HP (1) 50.00 48.00 4 27.00 24 80.00 49.00 A 0.57 SR M3.5X0.6-L8.5 IP10 BLD IP10/S7 SW6-SD SR M12X65 DIN912 SDK D063-56-04-27-10-C 63.00 56.00 4 27.00 28 80.00 60.00 A 0.90 SR M3.5X0.6-L8.5 IP10 BLD IP10/S7 SW6-SD SR M12X65 DIN912 SDK D080-64-05-32-10-C 80.00 64.00 5 32.00 40 85.00 78.00 A 1.61 SR M3.5X0.6-L8.5 IP10 BLD IP10/S7 SW6-SD SR M16X65 DIN912 (1) Designed with coolant nozzles for high pressure coolant (2) Number of flutes (3) Number of inserts (or edges for solid tool) (4) For adaptation see page 622 For inserts, see pages: SDHT/HW/MT 1004 (566) 290 ISCAR
