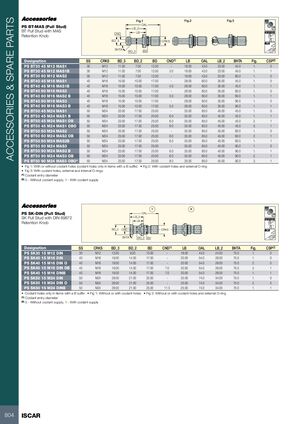

ACCESSORIES & SPARE PARTS Fig.1 Fig.2 Fig.3 OAL PS BT-MAS (Pull Stud) LB_2 BT Pull Stud with MAS LB 58-60 HRc CND Retention Knob BD_3 CRKS √N5 BHTA BD BD_2 Designation SS CRKS BD_3 BD_2 BD CND(1) LB OAL LB_2 BHTA Fig. CSP(2) PS BT30 45 M12 MAS1 30 M12 11.00 7.00 12.50 - 18.00 43.0 23.00 45.0 1. 0 PS BT30 45 M12 MAS1B 30 M12 11.00 7.00 12.50 3.0 18.00 43.0 23.00 45.0 1. 1 PS BT30 60 M12 MAS2 30 M12 11.00 7.00 12.50 - 18.00 43.0 23.00 60.0 1. 0 PS BT40 45 M16 MAS1 40 M16 15.00 10.00 17.00 - 28.00 60.0 35.00 45.0 1. 0 PS BT40 45 M16 MAS1B 40 M16 15.00 10.00 17.00 4.0 28.00 60.0 35.00 45.0 1. 1 PS BT40 60 M16 MAS2 40 M16 15.00 10.00 17.00 - 28.00 60.0 35.00 60.0 1. 0 PS BT40 60 M16 MAS2 B 40 M16 15.00 10.00 17.00 5.5 28.00 60.0 35.00 60.0 1. 1 PS BT40 90 M16 MAS3 40 M16 15.00 10.00 17.00 - 28.00 60.0 35.00 90.0 1. 0 PS BT40 90 M16 MAS3 B 40 M16 15.00 10.00 17.00 5.5 28.00 60.0 35.00 90.0 1. 1 PS BT50 45 M24 MAS1 50 M24 23.00 17.00 25.00 - 35.00 85.0 45.00 45.0 1. 0 PS BT50 45 M24 MAS1 B 50 M24 23.00 17.00 25.00 6.0 35.00 85.0 45.00 45.0 1. 1 PS BT50 45 M24 MAS1 OB 50 M24 23.00 17.00 25.00 6.0 35.00 85.0 45.00 45.0 2. 1 PS BT50 45 M24 MAS1 OBO 50 M24 23.00 17.00 25.00 6.0 35.00 85.0 45.00 45.0 3. 1 PS BT50 60 M24 MAS2 50 M24 23.00 17.00 25.00 - 35.00 85.0 45.00 60.0 1. 0 PS BT50 60 M24 MAS2 OB 50 M24 23.00 17.00 25.00 6.0 35.00 85.0 45.00 60.0 2. 1 PS BT50 60 M24 MAS2B 50 M24 23.00 17.00 25.00 6.0 35.00 85.0 45.00 60.0 1. 1 PS BT50 90 M24 MAS3 50 M24 23.00 17.00 25.00 - 35.00 85.0 45.00 90.0 1. 0 PS BT50 90 M24 MAS3 B 50 M24 23.00 17.00 25.00 6.0 35.00 85.0 45.00 90.0 1. 1 PS BT50 90 M24 MAS3 OB 50 M24 23.00 17.00 25.00 6.0 35.00 85.0 45.00 90.0 2. 1 PS BT50 90 M24 MAS3 OBO* 50 M24 23.00 17.00 25.00 8.0 35.00 85.0 45.00 90.0 3. 1 • Fig 1: With or without coolant holes (coolant holes only in items with a B suffix) • Fig 2: With coolant holes and external O-ring • Fig 3: With coolant holes, external and internal O-rings (1) Coolant entry diameter (2) 0 - Without coolant supply, 1 - With coolant supply 1 2 PS SK-DIN (Pull Stud) OAL LB_2 SK Pull Stud with DIN 69872 58-60 HRc LB Retention Knob BD_3 CND CRKS √N5 BHTA BD_2 BD Designation SS CRKS BD_3 BD_2 BD CND(1) LB OAL LB_2 BHTA Fig. CSP(2) PS SK30 15 M12 DIN 30 M12 13.00 9.00 13.00 - 19.00 44.0 24.00 75.0 1. 0 PS SK40 15 M16 DIN 40 M16 19.00 14.00 17.00 - 20.00 54.0 26.00 75.0 1. 0 PS SK40 15 M16 DIN O 40 M16 19.00 14.00 17.00 - 20.00 54.0 26.00 75.0 2. 0 PS SK40 15 M16 DIN OB 40 M16 19.00 14.00 17.00 7.0 20.00 54.0 26.00 75.0 2. 1 PS SK40 15 M16 DINB 40 M16 19.00 14.00 17.00 7.0 20.00 54.0 26.00 75.0 1. 1 PS SK50 15 M24 DIN 50 M24 28.00 21.00 25.00 - 25.00 74.0 34.00 75.0 1. 0 PS SK50 15 M24 DIN O 50 M24 28.00 21.00 25.00 - 25.00 74.0 34.00 75.0 2. 0 PS SK50 15 M24 DINB 50 M24 28.00 21.00 25.00 11.5 25.00 74.0 34.00 75.0 1. 1 • Coolant holes only in items with a B suffix • Fig 1: Without or with coolant holes • Fig 2: Without or with coolant holes and external O-ring (1) Coolant entry diameter (2) 0 - Without coolant supply, 1 - With coolant supply 804 ISCAR
