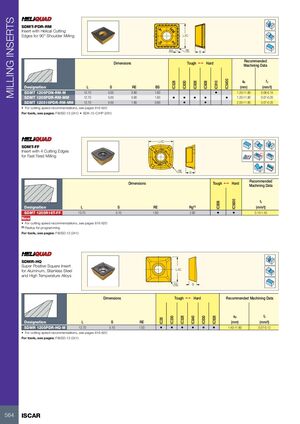

MILLING INSERTS SDMT-PDR-RM Insert with Helical Cutting Edges for 90° Shoulder Milling L/IC BS RE S Recommended Dimensions Tough 1 Hard Machining Data ap fz IC5400 IC328 IC830 IC928 IC808 IC910 Designation L S RE BS (mm) (mm/t) SDMT 1205PDN-RM-M 12.70 5.00 0.80 1.60 • 1.20-11.80 0.08-0.15 SDMT 1205PDR-RM-MM 12.70 5.00 0.80 1.60 • • • • • 1.20-11.80 0.07-0.20 SDMT 120516PDR-RM-MM 12.70 5.00 1.60 0.80 • • 2.00-11.80 0.07-0.20 • For cutting speed recommendations, see pages 616-620 For tools, see pages: F90SD-12 (241) • SDK-12-C/HP (291) L/IC SDMT-FF Insert with 4 Cutting Edges Rd° for Fast Feed Milling RE S Recommended Dimensions Tough 1 Hard Machining Data fz IC5600 IC808 Designation L S RE Rg(1) (mm/t) SDMT 1205R16T-FF 13.70 5.10 1.60 2.60 • • 0.10-1.40 New • For cutting speed recommendations, see pages 616-620 (1) Radius for programming For tools, see pages: F90SD-12 (241) SDMR-HQ Super Positive Square Insert for Aluminum, Stainless Steel L/IC and High Temperature Alloys RE S Dimensions Tough 1 Hard Recommended Machining Data ap fz IC330 IC328 IC840 IC830 IC928 IC28 Designation L S RE (mm) (mm/t) SDMR 1205PDR-HQ-M 12.70 5.10 1.00 • • • • • • 1.40-11.80 0.07-0.12 • For cutting speed recommendations, see pages 616-620 For tools, see pages: F90SD-12 (241) 564 ISCAR
