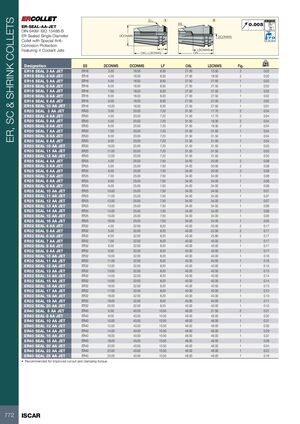

ER, SC & SHRINK COLLETS G.L. 1 2 46-48 HRc ER-SEAL-AA-JET SS 0.005 DIN 6499/ ISO 15488-B ER Sealed Single Diameter DCONMS DCONWS 70 Collet with Special Anti- Bar Max Corrosion Protection LF Featuring 4 Coolant Jets LSCNWS OAL=LSCNWS OAL kg Designation SS DCONWS DCONMS LF OAL LSCNWS Fig. ER16 SEAL 3 AA JET ER16 3.00 16.00 6.30 27.50 15.50 2 0.02 ER16 SEAL 4 AA JET ER16 4.00 16.00 6.30 27.50 18.50 2 0.02 ER16 SEAL 5 AA JET ER16 5.00 16.00 6.30 27.50 27.50 1 0.02 ER16 SEAL 6 AA JET ER16 6.00 16.00 6.30 27.50 27.50 1 0.02 ER16 SEAL 7 AA JET ER16 7.00 16.00 6.30 27.50 27.50 1 0.02 ER16 SEAL 8 AA JET ER16 8.00 16.00 6.30 27.50 27.50 1 0.02 ER16 SEAL 9 AA JET ER16 9.00 16.00 6.30 27.50 27.50 1 0.02 ER16 SEAL 10 AA JET ER16 10.00 16.00 6.30 27.50 27.50 1 0.01 ER20 SEAL 3 AA JET ER20 3.00 20.00 7.20 31.50 17.70 2 0.04 ER20 SEAL 4 AA JET ER20 4.00 20.00 7.20 31.50 17.70 2 0.04 ER20 SEAL 5 AA JET ER20 5.00 20.00 7.20 31.50 19.30 2 0.04 ER20 SEAL 6 AA JET ER20 6.00 20.00 7.20 31.50 19.30 2 0.04 ER20 SEAL 7 AA JET ER20 7.00 20.00 7.20 31.50 31.50 1 0.04 ER20 SEAL 8 AA JET ER20 8.00 20.00 7.20 31.50 31.50 1 0.04 ER20 SEAL 9 AA JET ER20 9.00 20.00 7.20 31.50 31.50 1 0.04 ER20 SEAL 10 AA JET ER20 10.00 20.00 7.20 31.50 31.50 1 0.03 ER20 SEAL 11 AA JET ER20 11.00 20.00 7.20 31.50 31.50 1 0.03 ER20 SEAL 12 AA JET ER20 12.00 20.00 7.20 31.50 31.50 1 0.03 ER25 SEAL 4 AA JET ER25 4.00 25.00 7.50 34.00 20.00 2 0.08 ER25 SEAL 5 AA JET ER25 5.00 25.00 7.50 34.00 20.00 2 0.08 ER25 SEAL 6 AA JET ER25 6.00 25.00 7.50 34.00 20.00 2 0.08 ER25 SEAL 7 AA JET ER25 7.00 25.00 7.50 34.00 34.00 1 0.08 ER25 SEAL 8 AA JET ER25 8.00 25.00 7.50 34.00 34.00 1 0.08 ER25 SEAL 9 AA JET ER25 9.00 25.00 7.50 34.00 34.00 1 0.08 ER25 SEAL 10 AA JET ER25 10.00 25.00 7.50 34.00 34.00 1 0.07 ER25 SEAL 11 AA JET ER25 11.00 25.00 7.50 34.00 34.00 1 0.07 ER25 SEAL 12 AA JET ER25 12.00 25.00 7.50 34.00 34.00 1 0.07 ER25 SEAL 13 AA JET ER25 13.00 25.00 7.50 34.00 34.00 1 0.06 ER25 SEAL 14 AA JET ER25 14.00 25.00 7.50 34.00 34.00 1 0.06 ER25 SEAL 15 AA JET ER25 15.00 25.00 7.50 34.00 34.00 1 0.05 ER25 SEAL 16 AA JET ER25 16.00 25.00 7.50 34.00 34.00 1 0.05 ER32 SEAL 4 AA JET ER32 4.00 32.00 8.20 40.00 20.00 2 0.17 ER32 SEAL 5 AA JET ER32 5.00 32.00 8.20 40.00 22.00 2 0.17 ER32 SEAL 6 AA JET ER32 6.00 32.00 8.20 40.00 25.80 2 0.17 ER32 SEAL 7 AA JET ER32 7.00 32.00 8.20 40.00 40.00 1 0.17 ER32 SEAL 8 AA JET ER32 8.00 32.00 8.20 40.00 40.00 1 0.17 ER32 SEAL 9 AA JET ER32 9.00 32.00 8.20 40.00 40.00 1 0.17 ER32 SEAL 10 AA JET ER32 10.00 32.00 8.20 40.00 40.00 1 0.16 ER32 SEAL 11 AA JET ER32 11.00 32.00 8.20 40.00 40.00 1 0.16 ER32 SEAL 12 AA JET ER32 12.00 32.00 8.20 40.00 40.00 1 0.15 ER32 SEAL 13 AA JET ER32 13.00 32.00 8.20 40.00 40.00 1 0.13 ER32 SEAL 14 AA JET ER32 14.00 32.00 8.20 40.00 40.00 1 0.14 ER32 SEAL 15 AA JET ER32 15.00 32.00 8.20 40.00 40.00 1 0.14 ER32 SEAL 16 AA JET ER32 16.00 32.00 8.20 40.00 40.00 1 0.13 ER32 SEAL 17 AA JET ER32 17.00 32.00 8.20 40.00 40.00 1 0.12 ER32 SEAL 18 AA JET ER32 18.00 32.00 8.20 40.00 40.00 1 0.13 ER32 SEAL 19 AA JET ER32 19.00 32.00 8.20 40.00 40.00 1 0.11 ER32 SEAL 20 AA JET ER32 20.00 32.00 8.20 40.00 40.00 1 0.10 ER40 SEAL 6 AA JET ER40 6.00 40.00 10.50 46.00 31.00 2 0.31 ER40 SEAL 8 AA JET ER40 8.00 40.00 10.50 46.00 46.00 1 0.32 ER40 SEAL 10 AA JET ER40 10.00 40.00 10.50 46.00 46.00 1 0.31 ER40 SEAL 12 AA JET ER40 12.00 40.00 10.50 46.00 46.00 1 0.30 ER40 SEAL 14 AA JET ER40 14.00 40.00 10.50 46.00 46.00 1 0.29 ER40 SEAL 16 AA JET ER40 16.00 40.00 10.50 46.00 46.00 1 0.37 ER40 SEAL 18 AA JET ER40 18.00 40.00 10.50 46.00 46.00 1 0.26 ER40 SEAL 20 AA JET ER40 20.00 40.00 10.50 46.00 46.00 1 0.24 ER40 SEAL 22 AA JET ER40 22.00 40.00 10.50 46.00 46.00 1 0.22 ER40 SEAL 25 AA JET ER40 25.00 40.00 10.50 46.00 46.00 1 0.18 • Recommended for improved runout and clamping torque. 772 ISCAR
