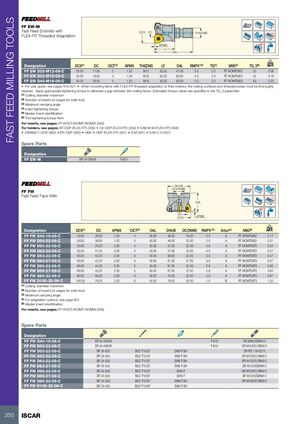

FAST FEED MILLING TOOLS FF EW-M Fast Feed Endmills with DCX DC THSZMS Rd° FLEX-FIT Threaded Adaptation APMX LF OAL kg Designation DCX(1) DC CICT(2) APMX THSZMS LF OAL RMPX°(3) TQ(4) MIID(5) TQ_3(6) FF EW D25-M12-06-C 25.00 11.00 2 1.20 M12 25.00 47.00 5.0 2.0 FF WOMT0602 33 0.06 FF EW D32-M16-06-C 32.00 18.00 3 1.20 M16 35.00 60.00 4.0 2.0 FF WOMT0602 40 0.16 FF EW D40-M16-06-C 40.00 26.00 4 1.20 M16 40.00 65.00 2.5 2.0 FF WOMT0602 40 0.23 • For user guide, see pages 616-621 • When mounting items with FLEX-FIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter (1) Cutting diameter maximum (2) Number of inserts (or edges for solid tool) (3) Maximum ramping angle (4) Insert tightening torque (5) Master insert identification (6) Tool tightening torque Nxm For inserts, see pages: FF WOCT/WOMT/WOMW (595) For holders, see pages: BT-ODP (FLEX-FIT) (359) • C#-ODP (FLEX-FIT) (359) • CAB M-M (FLEX-FIT) (358) • DIN69871-ODP (360) • ER-ODP (360) • HSK A-ODP (FLEX-FIT) (361) • S M (357) • S M-C-H (357) Spare Parts Designation FF EW-M SR 34-506/M T-9/51 DHUB DCONMS FF FW Fast Feed Face Mills Rd° OAL DC DCX APMX kg Designation DCX(1) DC APMX CICT(2) OAL DHUB DCONMS RMPX°(3) Arbor(4) MIID(5) FF FW D40-16-06-C 40.00 26.00 1.20 4 35.00 38.00 16.00 2.5 A FF WOMT0602 0.17 FF FW D50-22-06-C 50.00 36.00 1.20 5 40.00 48.00 22.00 2.0 A FF WOMT0602 0.31 FF FW D50-22-09-C 50.00 29.20 2.00 4 50.00 47.00 22.00 4.0 A FF WOMT09T3 0.34 FF FW D52-22-09-C 52.00 31.20 2.00 4 40.00 47.00 22.00 4.0 A FF WOMT09T3 0.27 FF FW D63-22-09-C 63.00 42.20 2.00 5 40.00 58.00 22.00 3.0 A FF WOMT09T3 0.47 FF FW D63-27-09-C 63.00 42.20 2.00 5 50.00 61.00 27.00 3.0 A FF WOMT09T3 0.57 FF FW D66-22-09-C 66.00 45.20 2.00 5 40.00 61.00 22.00 2.8 A FF WOMT09T3 0.56 FF FW D66-27-09-C 66.00 45.20 2.00 5 50.00 61.00 27.00 2.8 A FF WOMT09T3 0.64 FF FW D80-32-09-C 80.00 59.20 2.00 5 50.00 75.00 32.00 2.0 A FF WOMT09T3 0.97 FF FW D100-32-09-C 100.00 79.20 2.00 6 50.00 78.00 32.00 1.5 B FF WOMT09T3 1.32 (1) Cutting diameter maximum (2) Number of inserts (or edges for solid tool) (3) Maximum ramping angle (4) For adaptation options, see page 622 (5) Master insert identification For inserts, see pages: FF WOCT/WOMT/WOMW (595) Spare Parts Designation FF FW D40-16-06-C SR 34-506/M T-9/51 SR M8X25DIN912 FF FW D50-22-06-C SR 34-506/M T-9/51 SR M10X25 DIN912 FF FW D50-22-09-C SR 34-535 BLD T15/S7 SW6-T-SH SR PS 118-0273 FF FW D52-22-09-C SR 34-535 BLD T15/S7 SW6-T-SH SR M10X25 DIN912 FF FW D63-22-09-C SR 34-535 BLD T15/S7 SW6-T-SH SR M10X25 DIN912 FF FW D63-27-09-C SR 34-535 BLD T15/S7 SW6-T-SH SR M12X30DIN912 FF FW D66-22-09-C SR 34-535 BLD T15/S7 SW6-T SR M10X25 DIN912 FF FW D66-27-09-C SR 34-535 BLD T15/S7 SW6-T SR M12X30DIN912 FF FW D80-32-09-C SR 34-535 BLD T15/S7 SW6-T-SH SR M16X30 DIN912 FF FW D100-32-09-C SR 34-535 BLD T15/M7 SW6-T-SH 350 ISCAR
