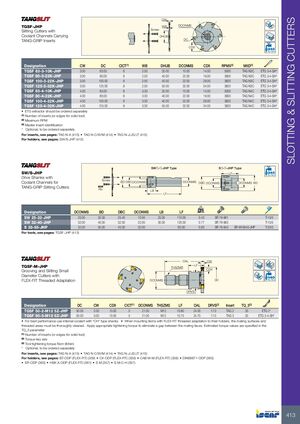

SLOTTING & SLITTING CUTTERS CW TGSF-JHP WB DCONMS Screw Slitting Cutters with Coolant Channels Carrying DHUB TANG-GRIP Inserts DC CDX Bar Max Designation CW DC CICT(1) WB DHUB DCONMS CDX RPMX(2) MIID(3) TGSF 63-3-10K-JHP 3.00 63.00 6 2.50 32.00 10.00 14.00 5000 TAG N3C ETG 3-4-SH* TGSF 80-3-22K-JHP 3.00 80.00 6 2.50 40.00 22.00 19.00 3900 TAG N3C ETG 3-4-SH* TGSF 100-3-22K-JHP 3.00 100.00 6 2.50 40.00 22.00 29.00 3820 TAG N3C ETG 3-4-SH* TGSF 125-3-32K-JHP 3.00 125.00 8 2.50 55.00 32.00 34.00 3820 TAG N3C ETG 3-4-SH* TGSF 63-4-10K-JHP 4.00 63.00 6 3.30 32.00 10.00 14.00 5000 TAG N4C ETG 3-4-SH* TGSF 80-4-22K-JHP 4.00 80.00 6 3.30 40.00 22.00 19.00 3900 TAG N4C ETG 3-4-SH* TGSF 100-4-22K-JHP 4.00 100.00 6 3.30 40.00 22.00 29.00 3820 TAG N4C ETG 3-4-SH* TGSF 125-4-32K-JHP 4.00 125.00 8 3.30 55.00 32.00 34.00 3820 TAG N4C ETG 3-4-SH* • ETG extractor should be ordered separately (1) Number of inserts (or edges for solid tool) (2) Maximum RPM (3) Master insert identification * Optional, to be ordered separately For inserts, see pages: TAG N-A (415) • TAG N-C/W/M (414) • TAG N-J/JS/JT (415) For holders, see pages: SW/S-JHP (413) SW--JHP Type S--JHP Type SW/S-JHP LF Bar Max Drive Shanks with Screw Coolant Channels for BD DBC DCONWS DCONMS DBC DCONWS DCONMS BD TANG-GRIP Slitting Cutters Pin LB LF kg Designation DCONMS BD DBC DCONWS LB LF SW 25-32-JHP 25.00 32.00 25.40 10.00 25.00 110.00 0.43 SR 76-961 T-15/5 SW 32-40-JHP 32.00 40.00 32.50 22.00 30.00 120.00 0.77 SR 76-963 T-15/5 S 32-55-JHP 32.00 55.00 45.00 32.00 - 60.00 0.83 SR 76-943 SR M16X40-JHP T-20/5 For tools, see pages: TGSF-JHP (413) OAL CW TGSF-M-JHP LF THSZMS CDX Grooving and Slitting Small Diameter Cutters with FLEX-FIT Threaded Adaptation DCONMS DC Bar Max DRVS Designation DC CW CDX CICT(1) DCONMS THSZMS LF OAL DRVS(2) Insert TQ_3(3) TGSF 50-2-M12 5Z-JHP 50.00 2.00 13.00 5 21.00 M12 10.80 24.00 17.0 TAG 2 33 ETG 2* TGSF 50-3-M12 5Z-JHP 50.00 3.00 13.00 5 21.00 M12 10.70 24.70 17.0 TAG 3 33 ETG 3-4-SH* • For best performance use internal coolant with “CH” type shanks • When mounting items with FLEX-FIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter (1) Number of inserts (or edges for solid tool) (2) Torque key size (3) Tool tightening torque Nxm (lbfxin) * Optional, to be ordered separately For inserts, see pages: TAG N-A (415) • TAG N-C/W/M (414) • TAG N-J/JS/JT (415) For holders, see pages: BT-ODP (FLEX-FIT) (359) • C#-ODP (FLEX-FIT) (359) • CAB M-M (FLEX-FIT) (358) • DIN69871-ODP (360) • ER-ODP (360) • HSK A-ODP (FLEX-FIT) (361) • S M (357) • S M-C-H (357) 413
