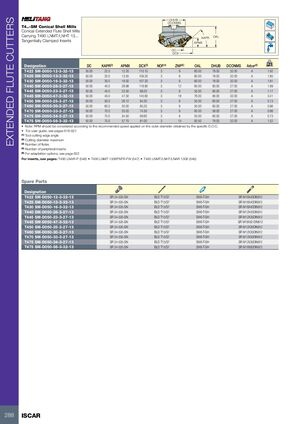

EXTENDED FLUTE CUTTERS DHUB DCONMS T4..-SM Conical Shell Mills Conical Extended Flute Shell Mills Carrying T490 LNMT/LNHT 13... KAPR OAL Tangentially Clamped Inserts APMX DC DCX kg Designation DC KAPR(2) APMX DCX(3) NOF(4) ZNP(5) OAL DHUB DCONMS Arbor(6) T422 SM-D050-12-3-32-13 50.00 22.5 12.20 110.10 3 9 60.00 78.00 32.00 A 1.92 T425 SM-D050-13-3-32-13 50.00 25.0 13.55 109.20 3 9 60.00 78.00 32.00 A 1.85 T430 SM-D050-16-3-32-13 50.00 30.0 16.00 107.20 3 9 60.00 78.00 32.00 A 1.81 T440 SM-D050-28-3-27-13 50.00 40.0 28.88 118.80 3 12 65.00 60.00 27.00 A 1.99 T445 SM-D050-23-3-27-13 50.00 45.0 23.50 98.20 3 9 55.00 60.00 27.00 A 1.17 T445 SM-D050-47-3-32-13 50.00 45.0 47.50 145.60 3 18 76.00 80.00 32.00 A 3.41 T450 SM-D050-25-3-27-13 50.00 50.0 26.12 94.30 3 9 55.00 60.00 27.00 A 0.13 T460 SM-D050-30-3-27-13 50.00 60.0 30.00 85.20 3 9 55.00 60.00 27.00 A 0.96 T470 SM-D050-33-3-27-13 50.00 70.0 33.20 74.30 3 9 60.00 58.00 27.00 A 0.86 T475 SM-D050-34-3-27-13 50.00 75.0 34.50 68.60 3 9 55.00 60.00 27.00 A 0.73 T475 SM-D050-56-3-32-13 50.00 75.0 57.70 81.00 3 15 83.50 78.00 32.00 A 1.52 • Note: RPM should be considered according to the recommended speed applied on the outer diameter obtained by the specific D.O.C. • For user guide, see pages 616-621 (1) Tool cutting edge angle (2) Cutting diameter maximum (3) Number of flutes (4) Number of peripheral inserts (5) For adaptation options, see page 622 For inserts, see pages: T490 LNAR-P (548) • T490 LNMT 1306PNTR-FW (547) • T490 LNMT/LNHT/LNAR 1306 (546) Spare Parts Designation T422 SM-D050-12-3-32-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M16X40DIN912 T425 SM-D050-13-3-32-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M16X40DIN912 T430 SM-D050-16-3-32-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M16X40DIN912 T440 SM-D050-28-3-27-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M12X45DIN912 T445 SM-D050-23-3-27-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M12X35DIN912 T445 SM-D050-47-3-32-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M16X50 DIN912 T450 SM-D050-25-3-27-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M12X35DIN912 T460 SM-D050-30-3-27-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M12X35DIN912 T470 SM-D050-33-3-27-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M12X50DIN912 T475 SM-D050-34-3-27-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M12X35DIN912 T475 SM-D050-56-3-32-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M16X60DIN912 288 ISCAR
