Фрезерные инструменты Iscar 2026 - страница 667

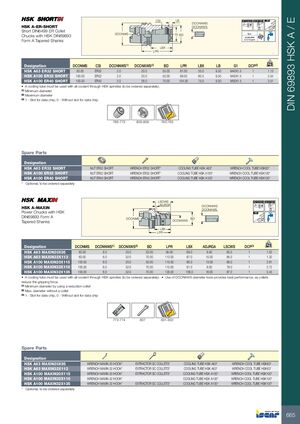

DIN 69893 HSK A / E CSI LB A 0.003 A 58-60 HRc √N5 DCONNWS HSK A-ER-SHORT DCONXWS Short DIN6499 ER Collet DCONMS G1 BD G2.5 Chucks with HSK DIN69893 20,000 RPM Form A Tapered Shanks or U<1.0 gmm LBX LPR . kg Designation DCONMS CSI DCONNWS(1) DCONXWS(2) BD LPR LBX LB G1 DCP(3) HSK A63 ER32 SHORT 63.00 ER32 2.0 20.0 50.00 81.00 55.0 9.50 M40X1.5 1 1.13 HSK A100 ER32 SHORT 100.00 ER32 2.0 20.0 50.00 89.50 60.5 9.50 M40X1.5 1 2.54 HSK A100 ER40 SHORT 100.00 ER40 3.0 26.0 70.00 104.50 75.5 9.50 M50X1.5 1 3.51 • A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). (1) Minimum diameter (2) Maximum diameter (3) 1 - Slot for data chip, 0 - Without slot for data chip 766-773 805-806 763-765 Spare Parts Designation HSK A63 ER32 SHORT NUT ER32 SHORT WRENCH ER32 SHORT* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* HSK A100 ER32 SHORT NUT ER32 SHORT WRENCH ER32 SHORT* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100* HSK A100 ER40 SHORT NUT ER40 SHORT WRENCH ER40 SHORT* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100* * Optional, to be ordered separately LSCWS A 0.003 A 58-60 HRc ADJRGA DCONNWS HSK A-MAXIN DCONXWS Power Chucks with HSK √N5 DIN69893 Form A DCONMS BD Tapered Shanks DCONXWS LBX LPR kg Designation DCONMS DCONNWS(1) DCONXWS(2) BD LPR LBX ADJRGA LSCWS DCP(3) HSK A63 MAXIN20X95 63.00 6.0 20.0 53.00 95.00 69.0 9.50 65.5 1 1.02 HSK A63 MAXIN32X113 63.00 6.0 32.0 70.00 113.00 87.0 15.00 85.0 1 1.32 HSK A100 MAXIN20X115 100.00 6.0 20.0 53.00 115.00 86.0 13.00 69.0 1 2.61 HSK A100 MAXIN32X110 100.00 6.0 32.0 70.00 110.00 81.0 8.00 78.0 1 2.72 HSK A100 MAXIN32X135 100.00 6.0 32.0 70.00 135.00 106.0 16.00 87.0 1 3.45 • A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). • Use of DCONXWS diameter tools provides best performance, as collets reduce the gripping force. (1) Minimum diameter by using a reduction collet (2) Max. diameter without a collet (3) 1 - Slot for data chip, 0 - Without slot for data chip 773-774 807 631-632 Spare Parts Designation HSK A63 MAXIN20X95 WRENCH MAXIN 20 HOOK* EXTRACTOR SC COLLETS* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* HSK A63 MAXIN32X113 WRENCH MAXIN 32 HOOK* EXTRACTOR SC COLLETS* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* HSK A100 MAXIN20X115 WRENCH MAXIN 20 HOOK* EXTRACTOR SC COLLETS* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100* HSK A100 MAXIN32X110 WRENCH MAXIN 32 HOOK* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100* HSK A100 MAXIN32X135 WRENCH MAXIN 32 HOOK* EXTRACTOR SC COLLETS* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100* * Optional, to be ordered separately 665
