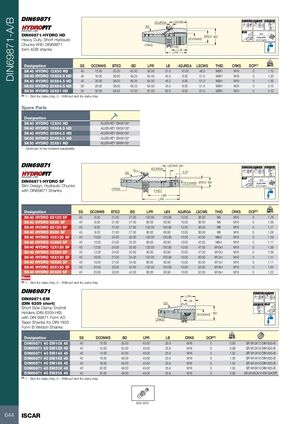

DIN69871-A/B A 0.003 A AT3 Taper 58-60 HRc ADJRGA LSCWS SS √N5 DIN69871-HYDRO HD BTED BD G2.5 25,000 RPM Heavy Duty, Short Hydraulic DCONWS or U<1.0 gmm Chucks With DIN69871 CRKS THID form ADB shanks LB LPR kg Designation SS DCONWS BTED BD LPR LB ADJRGA LSCWS THID CRKS DCP(1) SK40 HYDRO 12X50 HD 40 12.00 32.00 42.00 50.00 31.0 10.00 46.0 M8X1 M16 0 1.10 SK40 HYDRO 16X64.5 HD 40 16.00 38.00 49.25 64.50 45.5 8.00 51.0 M8X1 M16 0 1.20 SK40 HYDRO 20X64.5 HD 40 20.00 38.00 49.25 64.50 45.5 8.00 51.0 M8X1 M16 0 1.30 SK50 HYDRO 20X64.5 HD 50 20.00 38.00 49.25 64.50 45.5 8.00 51.0 M8X1 M24 0 3.10 SK50 HYDRO 32X81 HD 50 32.00 58.50 72.00 81.00 62.0 9.00 61.0 M8X1 M24 0 4.10 (1) 1 - Slot for data chip, 0 - Without slot for data chip Spare Parts Designation SK40 HYDRO 12X50 HD ALLEN KEY SW5X100* SK40 HYDRO 16X64.5 HD ALLEN KEY SW5X100* SK40 HYDRO 20X64.5 HD ALLEN KEY SW5X100* SK50 HYDRO 20X64.5 HD ALLEN KEY SW5X100* SK50 HYDRO 32X81 HD ALLEN KEY SW6X100* * Optional, to be ordered separately LSCWS A 0.003 A AT3 Taper 58-60 HRc G.L. ADJRGA SS 4.5º √N5 DIN69871-HYDRO SF DCONWS BTED BD G2.5 25,000 RPM Slim Design, Hydraulic Chucks or U<1.0 gmm CRKS with DIN69871 Shanks THID LBX LPR kg Designation SS DCONWS BTED BD LPR LBX ADJRGA LSCWS THID CRKS DCP(1) SK40 HYDRO 6X120 SF 40 6.00 21.00 27.00 120.00 100.90 10.00 36.00 M5 M16 0 1.28 SK40 HYDRO 6X80 SF 40 6.00 21.00 27.00 80.00 60.90 10.00 36.00 M5 M16 0 1.08 SK40 HYDRO 8X120 SF 40 8.00 21.00 27.00 120.00 100.90 10.00 36.00 M6 M16 0 1.27 SK40 HYDRO 8X80 SF 40 8.00 21.00 27.00 80.00 60.90 10.00 36.00 M6 M16 0 1.06 SK40 HYDRO 10X120 SF 40 10.00 24.00 32.00 120.00 100.90 10.00 42.00 M8x1 M16 0 1.39 SK40 HYDRO 10X80 SF 40 10.00 24.00 32.00 80.00 60.90 10.00 42.00 M8x1 M16 0 1.11 SK40 HYDRO 12X120 SF 40 12.00 24.00 32.00 120.00 100.90 10.00 47.00 M10x1 M16 0 1.36 SK40 HYDRO 12X80 SF 40 12.00 24.00 32.00 80.00 60.90 10.00 47.00 M10x1 M16 0 1.09 SK40 HYDRO 16X120 SF 40 16.00 27.00 34.00 120.00 100.90 10.00 50.00 M12x1 M16 0 1.41 SK40 HYDRO 16X80 SF 40 16.00 27.00 34.00 80.00 60.90 10.00 50.00 M12x1 M16 0 1.11 SK40 HYDRO 20X120 SF 40 20.00 33.00 42.00 120.00 100.90 10.00 52.00 M16x1 M16 0 1.64 SK40 HYDRO 20X80 SF 40 20.00 33.00 42.00 80.00 60.90 10.00 52.00 M16x1 M16 0 1.22 New (1) 1 - Slot for data chip, 0 - Without slot for data chip A 0.005 A AT3 Taper LPR DIN69871-EM LB (DIN 6359 short) SS 58-60 HRc √N5 Short Side Clamp Endmill Holders (DIN 6359-HB) DCONWS BD with DIN 69871 Form AD CRKS Taper Shanks for DIN 1835 Form B Weldon Shanks kg Designation SS DCONWS BD LPR LB CRKS DCP(1) DIN69871 40 EM10X 45 40 10.00 35.00 45.00 25.9 M16 0 0.93 SR M10X12 DIN1835-B DIN69871 40 EM12X 45 40 12.00 42.00 45.00 25.9 M16 0 0.99 SR M12X16 DIN1835-B DIN69871 40 EM14X 45 40 14.00 44.00 45.00 25.9 M16 0 1.02 SR M12X16 DIN1835-B DIN69871 40 EM16X 45 40 16.00 48.00 45.00 25.9 M16 0 1.05 SR M14X16 DIN1835-B DIN69871 40 EM18X 45 40 18.00 49.00 45.00 25.9 M16 0 1.04 SR M14X16 DIN1835-B DIN69871 40 EM20X 45 40 20.00 49.00 45.00 25.9 M16 0 1.00 SR M16X16 DIN1835-B DIN69871 40 EM25X 45 40 25.00 49.00 45.00 25.9 M16 0 0.93 SR M18X2X10 EM SHORT (1) 1 - Slot for data chip, 0 - Without slot for data chip 802-805 644 ISCAR
