Фрезерные инструменты Iscar 2026 - страница 347

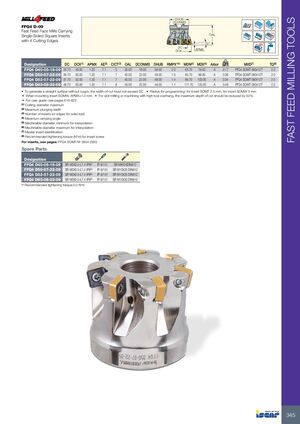

FAST FEED MILLING TOOLS DHUB DCONMS FFQ4 D-09 Fast Feed Face Mills Carrying Rd° Single-Sided Square Inserts OAL with 4 Cutting Edges 12° DC DCX APMX Designation DC DCX(1) APMX AE(2) CICT(3) OAL DCONMS DHUB RMPX°(4) MDN(5) MDX(6) Arbor kg MIID(7) TQ(8) FFQ4 D40-05-16-09 25.70 40.00 1.20 7.1 5 35.00 16.00 38.00 2.0 65.70 79.00 A 0.17 FFQ4 SOMT 090412T 2.0 FFQ4 D50-07-22-09 35.70 50.00 1.20 7.1 7 40.00 22.00 48.00 1.5 85.70 99.00 A 0.36 FFQ4 SOMT 090412T 2.0 FFQ4 D52-07-22-09 37.70 52.00 1.20 7.1 7 40.00 22.00 48.00 1.4 89.70 103.00 A 0.34 FFQ4 SOMT 090412T 2.0 FFQ4 D63-08-22-09 48.70 63.00 1.20 7.1 8 45.00 22.00 48.00 1.1 111.70 125.00 A 0.49 FFQ4 SOMT 090412T 2.0 • To generate a straight surface without cusps, the width of cut must not exceed DC • Radius for programming: for insert SOMT 2.5 mm, for insert SOMW 3 mm • When mounting insert SOMW, APMX=1.0 mm • For slot milling or machining with high tool overhang, the maximum depth of cut should be reduced by 50% • For user guide, see pages 616-622 (1) Cutting diameter maximum (2) Maximum plunging width (3) Number of inserts (or edges for solid tool) (4) Maximum ramping angle (5) Machinable diameter minimum for interpolation (6) Machinable diameter maximum for interpolation (7) Master insert identification (8) Recommended tightening torque (N*m) for insert screw For inserts, see pages: FFQ4 SOMT/W 0904 (590) Spare Parts Designation FFQ4 D40-05-16-09 SR M3X0.5-L7.4 IP9(a) IP-9/151 SR M8X25DIN912 FFQ4 D50-07-22-09 SR M3X0.5-L7.4 IP9(a) IP-9/151 SR M10X25 DIN912 FFQ4 D52-07-22-09 SR M3X0.5-L7.4 IP9(a) IP-9/151 SR M10X25 DIN912 FFQ4 D63-08-22-09 SR M3X0.5-L7.4 IP9(a) IP-9/151 SR M10X30 DIN912 (a) Recommended tightening torque:2.0 N*m 345
