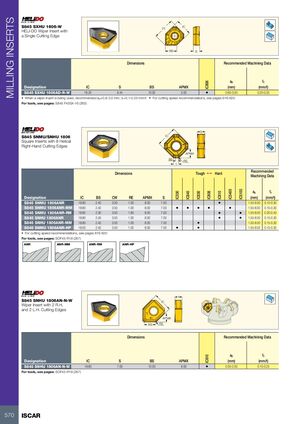

MILLING INSERTS S845 SXHU 1606-W 21 IC HELI-DO Wiper Insert with a Single Cutting Edge BS S Dimensions Recommended Machining Data ap fz IC808 Designation IC S BS APMX (mm) (mm/t) S845 SXHU 1606AD-R-W 16.20 6.44 10.00 3.00 • 0.80-3.00 0.20-0.35 • When a wiper insert is being used, recommended ap=0.8-3.0 mm, fz=0.1-0.25 mm/t • For cutting speed recommendations, see pages 616-620 For tools, see pages: S845 F45SX-16 (265) S S845 SNMU/SNHU 1806 IC Square Inserts with 8 Helical Right-Hand Cutting Edges APMX BS RE L Recommended Dimensions Tough 1 Hard Machining Data ap fz IC5400 IC5100 IC330 IC845 IC830 IC808 IC810 Designation IC BS CW RE APMX S (mm) (mm/t) S845 SNMU 1806ANR 18.80 2.40 3.50 1.00 8.00 7.00 • 1.50-8.00 0.15-0.30 S845 SNMU 1806ANR-MM 18.80 2.40 3.50 1.00 8.00 7.00 • • • • • 1.50-8.00 0.15-0.30 S845 SNMU 1806ANR-RM 18.80 2.30 3.50 1.60 8.00 7.00 • • 1.50-8.00 0.20-0.40 S845 SNHU 1806ANR 18.80 2.40 3.50 1.00 8.00 7.00 • • 1.50-8.00 0.15-0.30 S845 SNHU 1806ANR-MM 18.80 2.40 3.50 1.00 8.00 7.00 • 1.50-8.00 0.15-0.30 S845 SNMU 1806ANR-HP 18.00 2.40 3.50 1.00 8.00 7.00 • • 1.50-8.00 0.15-0.30 • For cutting speed recommendations, see pages 616-620 For tools, see pages: SOF45-R18 (267) ANR ANR-MM ANR-RM ANR-HP s S845 SNHU 1806AN-N-W IC Wiper Insert with 2 R.H. and 2 L.H. Cutting Edges APMX BS RE Dimensions Recommended Machining Data ap fz IC810 Designation IC S BS APMX (mm) (mm/t) S845 SNHU 1806AN-N-W 18.80 7.00 10.00 8.00 • 0.50-2.00 0.10-0.25 For tools, see pages: SOF45-R18 (267) 570 ISCAR
