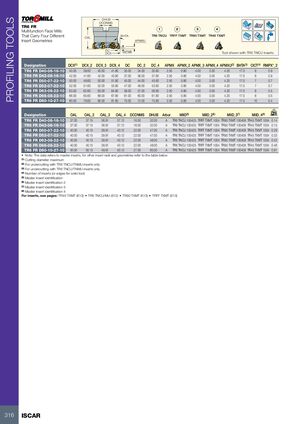

PROFILING TOOLS DHUB DCONMS TR6 FR 1 2 3 4 Multifunction Face Mills That Carry Four Different OAL BHTA TR6 TNCU TRFF TXMT TR90 TXMT TR45 TXMT Insert Geometries APMXU DC APMX DCX Tool shown with TR6 TNCU inserts Designation DCX(1) DCX_2 DCX_3 DCX_4 DC DC_2 DC_4 APMX APMX_2 APMX_3 APMX_4 APMXU(2) BHTA(3) CICT(4) RMPX°_2 TR6 FR D40-06-16-10 40.00 39.60 40.00 41.80 35.00 34.00 35.60 2.50 0.80 4.00 3.00 4.20 17.0 6 0.9 TR6 FR D42-06-16-10 42.00 41.60 42.00 43.80 37.00 36.00 37.60 2.50 0.80 4.00 3.00 4.20 17.0 6 0.9 TR6 FR D50-07-22-10 50.00 49.60 50.00 51.80 45.00 44.00 45.60 2.50 0.80 4.00 3.00 4.20 17.0 7 0.7 TR6 FR D52-07-22-10 52.00 51.60 52.00 53.80 47.00 46.00 53.60 2.50 0.80 4.00 3.00 4.20 17.0 7 0.7 TR6 FR D63-08-22-10 63.00 62.60 63.00 64.80 58.00 57.00 56.60 2.50 0.80 4.00 3.00 4.20 17.0 8 0.5 TR6 FR D66-08-22-10 66.00 65.60 66.00 67.80 61.00 60.00 61.60 2.50 0.80 4.00 3.00 4.20 17.0 8 0.5 TR6 FR D80-10-27-10 80.00 79.60 80.00 81.80 75.00 74.00 75.60 2.50 0.80 4.00 3.00 4.20 17.0 10 0.4 kg Designation OAL OAL_2 OAL_3 OAL_4 DCONMS DHUB Arbor MIID(5) MIID_2(6) MIID_3(7) MIID_4(8) TR6 FR D40-06-16-10 37.00 37.15 36.91 37.12 16.00 32.00 A TR6 TNCU 100425 TRFF TXMT 1004 TR90 TXMT 100408 TR45 TXMT 1004 0.14 TR6 FR D42-06-16-10 37.00 37.15 36.91 37.12 16.00 32.00 A TR6 TNCU 100425 TRFF TXMT 1004 TR90 TXMT 100408 TR45 TXMT 1004 0.15 TR6 FR D50-07-22-10 40.00 40.15 39.91 40.12 22.00 47.00 A TR6 TNCU 100425 TRFF TXMT 1004 TR90 TXMT 100408 TR45 TXMT 1004 0.29 TR6 FR D52-07-22-10 40.00 40.15 39.91 40.12 22.00 47.00 A TR6 TNCU 100425 TRFF TXMT 1004 TR90 TXMT 100408 TR45 TXMT 1004 0.33 TR6 FR D63-08-22-10 40.00 40.15 39.91 40.12 22.00 48.00 A TR6 TNCU 100425 TRFF TXMT 1004 TR90 TXMT 100408 TR45 TXMT 1004 0.42 TR6 FR D66-08-22-10 40.00 40.15 39.91 40.12 22.00 48.00 A TR6 TNCU 100425 TRFF TXMT 1004 TR90 TXMT 100408 TR45 TXMT 1004 0.46 TR6 FR D80-10-27-10 50.00 50.15 49.91 50.12 27.00 60.00 A TR6 TNCU 100425 TRFF TXMT 1004 TR90 TXMT 100408 TR45 TXMT 1004 0.91 • Note: The data refers to master inserts, for other insert radii and geometries refer to the table below (1) Cutting diameter maximum (2) For undercutting with TR6 TNCU/TNMU inserts only (3) For undercutting with TR6 TNCU/TNMU inserts only (4) Number of inserts (or edges for solid tool) (5) Master insert identification (6) Master insert identification 2 (7) Master insert identification 3 (8) Master insert identification 4 For inserts, see pages: TR45 TXMT (613) • TR6 TNCU/MU (612) • TR90 TXMT (613) • TRFF TXMT (613) 316 ISCAR
