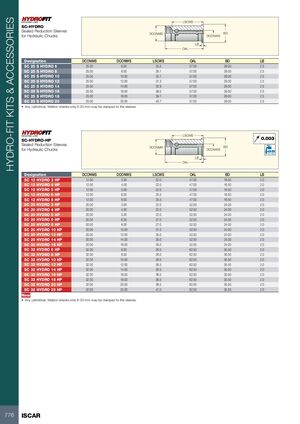

HYDRO-FIT KITS & ACCESSORIES LSCWS SC-HYDRO Sealed Reduction Sleeves BD DCONMS for Hydraulic Chucks DCONWS LB OAL Designation DCONMS DCONWS LSCWS OAL BD LB SC 25 S HYDRO 6 25.00 6.00 25.5 57.00 29.00 2.5 SC 25 S HYDRO 8 25.00 8.00 26.1 57.00 29.00 2.5 SC 25 S HYDRO 10 25.00 10.00 32.7 57.00 29.00 2.5 SC 25 S HYDRO 12 25.00 12.00 37.3 57.00 29.00 2.5 SC 25 S HYDRO 14 25.00 14.00 32.9 57.00 29.00 2.5 SC 25 S HYDRO 16 25.00 16.00 38.5 57.00 29.00 2.5 SC 25 S HYDRO 18 25.00 18.00 39.1 57.00 29.00 2.5 SC 25 S HYDRO 20 25.00 20.00 40.7 57.00 29.00 2.5 • Any cylindrical, Weldon shanks only 6-20 mm may be clamped to the sleeves LSCWS SC-HYDRO-HP 0.003 Sealed Reduction Sleeves BD DCONMS for Hydraulic Chucks DCONWS 85 Bar Max LB OAL Designation DCONMS DCONWS LSCWS OAL BD LB SC 12 HYDRO 3 HP 12.00 3.00 22.0 47.00 16.50 2.0 SC 12 HYDRO 4 HP 12.00 4.00 22.0 47.00 16.50 2.0 SC 12 HYDRO 5 HP 12.00 5.00 22.0 47.00 16.50 2.0 SC 12 HYDRO 6 HP 12.00 6.00 25.5 47.00 16.50 2.0 SC 12 HYDRO 8 HP 12.00 8.00 25.5 47.00 16.50 2.0 SC 20 HYDRO 3 HP 20.00 3.00 22.0 52.50 24.00 2.0 SC 20 HYDRO 4 HP 20.00 4.00 22.0 52.50 24.00 2.0 SC 20 HYDRO 5 HP 20.00 5.00 22.0 52.50 24.00 2.0 SC 20 HYDRO 6 HP 20.00 6.00 27.0 52.50 24.00 2.0 SC 20 HYDRO 8 HP 20.00 8.00 27.0 52.50 24.00 2.0 SC 20 HYDRO 10 HP 20.00 10.00 31.0 52.50 24.00 2.0 SC 20 HYDRO 12 HP 20.00 12.00 35.0 52.50 24.00 2.0 SC 20 HYDRO 14 HP 20.00 14.00 35.0 52.50 24.00 2.0 SC 20 HYDRO 16 HP 20.00 16.00 35.0 52.50 24.00 2.0 SC 32 HYDRO 6 HP 32.00 6.00 26.0 62.50 35.50 2.0 SC 32 HYDRO 8 HP 32.00 8.00 26.0 62.50 35.50 2.0 SC 32 HYDRO 10 HP 32.00 10.00 26.5 62.50 35.50 2.0 SC 32 HYDRO 12 HP 32.00 12.00 26.5 62.50 35.50 2.0 SC 32 HYDRO 14 HP 32.00 14.00 26.5 62.50 35.50 2.0 SC 32 HYDRO 16 HP 32.00 16.00 36.5 62.50 35.50 2.0 SC 32 HYDRO 18 HP 32.00 18.00 36.5 62.50 35.50 2.0 SC 32 HYDRO 20 HP 32.00 20.00 36.5 62.50 35.50 2.0 SC 32 HYDRO 25 HP 32.00 25.00 47.0 62.50 35.50 2.0 New • Any cylindrical, Weldon shanks only 6-20 mm may be clamped to the sleeves 776 ISCAR
