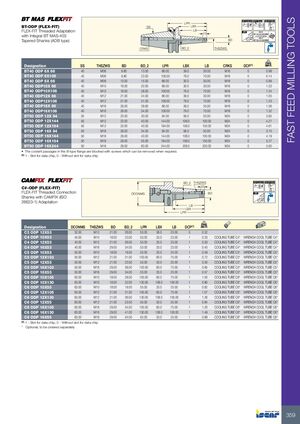

FAST FEED MILLING TOOLS A 0.003 A AT3 Taper 58-60 HRc LPR BT-ODP (FLEX-FIT) SS LBX FLEX-FIT Threaded Adaptation LB √N5 G2.5 10 BT 40=20,000RPM with Integral BT MAS-403 or U<1.0 gmm G6.3 Tapered Shanks (ADB type) BD BT 50=12,000 RPM CRKS BD_2 THSZWS kg Designation SS THSZWS BD BD_2 LPR LBX LB CRKS DCP(1) BT40 ODP 6X 66 40 M06 9.80 13.00 66.00 39.0 30.00 M16 0 0.98 BT40 ODP 6X106 40 M06 9.80 23.00 106.00 79.0 70.00 M16 0 0.14 BT40 ODP 8X 66 40 M08 13.00 15.00 66.00 30.0 30.00 M16 0 0.99 BT40 ODP10X 66 40 M10 18.00 20.00 66.00 30.0 30.00 M16 0 1.03 BT40 ODP10X106 40 M10 18.00 28.00 106.00 79.0 70.00 M16 0 1.24 BT40 ODP12X 66 40 M12 21.00 24.00 66.00 39.0 30.00 M16 0 1.05 BT40 ODP12X106 40 M12 21.00 31.00 106.00 79.0 70.00 M16 0 1.23 BT40 ODP16X 66 40 M16 29.00 28.60 66.00 39.0 35.00 M16 0 1.06 BT40 ODP16X106 40 M16 29.00 34.00 106.00 79.0 70.00 M16 0 1.32 BT50 ODP 12X 94 50 M12 23.00 30.00 94.00 56.0 50.00 M24 0 3.85 BT50 ODP 12X144 50 M12 23.00 40.00 144.00 106.0 100.00 M24 0 4.27 BT50 ODP 12X194 50 M12 23.00 40.00 194.00 156.0 150.00 M24 0 4.61 BT50 ODP 16X 94 50 M16 29.00 34.00 94.00 56.0 50.00 M24 0 3.75 BT50 ODP 16X144 50 M16 29.00 40.00 144.00 106.0 100.00 M24 0 4.19 BT50 ODP 16X194 50 M16 29.00 55.00 194.00 156.0 150.00 M24 0 5.27 BT50 ODP 16X244 50 M16 29.00 60.00 244.00 206.0 200.00 M24 0 5.60 • The coolant passages in the B-type flange are blocked with screws which can be removed when required. (1) 1 - Slot for data chip, 0 - Without slot for data chip BD_2 THSZWS A 0.003 A 58-60 HRc C#-ODP (FLEX-FIT) 10 FLEX-FIT Threaded Connection DCONMS BD √N5 Shanks with CAMFIX (ISO 26623-1) Adaptation LB LBX LPR kg Designation DCONMS THSZWS BD BD_2 LPR LBX LB DCP(1) C3 ODP 12X53 32.00 M12 21.00 26.00 53.00 38.0 23.00 0 0.32 C4 ODP 10X53 40.00 M10 18.00 23.00 53.00 33.0 23.00 1 0.33 COOLING TUBE C4* WRENCH COOL TUBE C4* C4 ODP 12X53 40.00 M12 21.00 26.00 53.00 33.0 23.00 1 0.33 COOLING TUBE C4* WRENCH COOL TUBE C4* C4 ODP 16X53 40.00 M16 29.00 34.00 53.00 33.0 23.00 1 0.40 COOLING TUBE C4* WRENCH COOL TUBE C4* C5 ODP 10X53 50.00 M10 18.00 19.50 53.00 33.0 25.00 1 0.49 COOLING TUBE C5* WRENCH COOL TUBE C5* C5 ODP 12X103 50.00 M12 21.00 31.00 103.00 83.0 75.00 1 0.72 COOLING TUBE C5* WRENCH COOL TUBE C5* C5 ODP 12X53 50.00 M12 21.00 23.50 53.00 33.0 25.00 1 0.50 COOLING TUBE C5* WRENCH COOL TUBE C5* C5 ODP 16X103 50.00 M16 29.00 36.00 103.00 83.0 75.00 1 0.85 COOLING TUBE C5* WRENCH COOL TUBE C5* C5 ODP 16X53 50.00 M16 29.00 34.00 53.00 33.0 25.00 1 0.57 COOLING TUBE C5* WRENCH COOL TUBE C5* C6 ODP 10X105 63.00 M10 18.00 28.00 105.00 83.0 75.00 1 1.00 COOLING TUBE C6* WRENCH COOL TUBE C6* C6 ODP 10X130 63.00 M10 18.00 32.00 130.00 108.0 100.00 1 0.80 COOLING TUBE C6* WRENCH COOL TUBE C6* C6 ODP 10X55 63.00 M10 18.00 19.50 55.00 33.0 25.00 1 0.82 COOLING TUBE C6* WRENCH COOL TUBE C6* C6 ODP 12X105 63.00 M12 21.00 31.00 105.00 83.0 75.00 1 1.07 COOLING TUBE C6* WRENCH COOL TUBE C6* C6 ODP 12X130 63.00 M12 21.00 36.00 130.00 108.0 100.00 1 1.26 COOLING TUBE C6* WRENCH COOL TUBE C6* C6 ODP 12X55 63.00 M12 21.00 23.50 55.00 33.0 25.00 1 0.84 COOLING TUBE C6* WRENCH COOL TUBE C6* C6 ODP 16X105 63.00 M16 29.00 34.00 105.00 83.0 75.00 1 1.20 COOLING TUBE C6* WRENCH COOL TUBE C6* C6 ODP 16X130 63.00 M16 29.00 41.00 130.00 108.0 100.00 1 1.49 COOLING TUBE C6* WRENCH COOL TUBE C6* C6 ODP 16X55 63.00 M16 29.00 34.00 55.00 33.0 25.00 1 0.89 COOLING TUBE C6* WRENCH COOL TUBE C6* (1) 1 - Slot for data chip, 0 - Without slot for data chip * Optional, to be ordered separately 359
