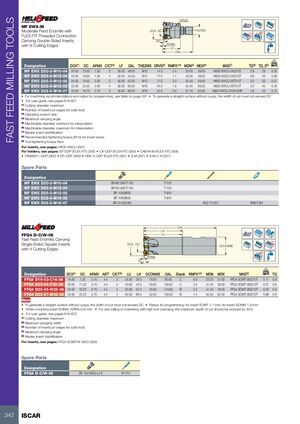

FAST FEED MILLING TOOLS DRVS MF EWX-M Moderate Feed Endmills with DCX DC THSZMS Rd° FLEX-FIT Threaded Connection Carrying Double-Sided Inserts 30° with 6 Cutting Edges APMX LF OAL kg Designation DCX(1) DC APMX CICT(2) LF OAL THSZMS DRVS(3) RMPX°(4) MDN(5) MDX(6) MIID(7) TQ(8) TQ_3(9) MF EWX D20-3-M10-04 20.00 13.00 1.50 3 28.00 48.00 M10 14.0 2.4 33.00 39.00 H600 WXCU 040310T 0.9 29 0.05 MF EWX D25-4-M12-04 25.00 18.00 1.50 4 32.00 54.00 M12 17.0 1.7 43.00 49.00 H600 WXCU 040310T 0.9 33 0.09 MF EWX D25-3-M12-05 25.00 15.50 2.00 3 30.00 52.00 M12 17.0 3.0 40.50 49.00 H600 WXCU 05T312T 2.0 33 0.07 MF EWX D32-4-M16-05 32.00 22.50 2.00 4 35.00 60.00 M16 24.0 1.9 54.50 63.00 H600 WXCU 05T312T 2.0 40 0.16 MF EWX D32-3-M16-07 32.00 19.70 2.70 3 35.00 60.00 M16 24.0 3.0 51.70 63.00 H600 WXCU 070515HP 4.8 40 0.15 • For machining recommendations and radius for programming, see table on page 597 • To generate a straight surface without cusps, the width of cut must not exceed DC • For user guide, see pages 616-621 (1) Cutting diameter maximum (2) Number of inserts (or edges for solid tool) (3) Clamping wrench size (4) Maximum ramping angle (5) Machinable diameter minimum for interpolation (6) Machinable diameter maximum for interpolation (7) Master insert identification (8) Recommended tightening torque (N*m) for insert screw (9) Tool tightening torque Nxm For inserts, see pages: H600 WXCU (597) For holders, see pages: BT-ODP (FLEX-FIT) (359) • C#-ODP (FLEX-FIT) (359) • CAB M-M (FLEX-FIT) (358) • DIN69871-ODP (360) • ER-ODP (360) • HSK A-ODP (FLEX-FIT) (361) • S M (357) • S M-C-H (357) Spare Parts Designation MF EWX D20-3-M10-04 SR M2.5X6-T7-60 T-7/51 MF EWX D25-4-M12-04 SR M2.5X6-T7-60 T-7/51 MF EWX D25-3-M12-05 SR 10508600 T-9/51 MF EWX D32-4-M16-05 SR 10508600 T-9/51 MF EWX D32-3-M16-07 SR 34-535-SN BLD T15/S7 SW6-T-SH OAL LH FFQ4 D-C/W-06 LU Fast Feed Endmills Carrying Rd° Single-Sided Square Inserts DCX DC DCONMS with 4 Cutting Edges APMX 12˚ kg Designation DCX(1) DC APMX AE(2) CICT(3) LU LH DCONMS OAL Shank RMPX°(4) MDN MDX MIID(5) TQ FFQ4 D16-03-C16-06 16.00 7.20 0.70 4.4 3 24.50 26.0 16.00 90.00 C 6.0 23.20 31.00 FFQ4 SOMT 060210T 0.11 0.9 FFQ4 D20-04-C20-06 20.00 11.20 0.70 4.4 4 40.00 42.0 20.00 130.00 C 3.5 31.20 39.00 FFQ4 SOMT 060210T 0.27 0.9 FFQ4 D25-05-W25-06 25.00 16.20 0.70 4.4 5 50.00 52.0 25.00 110.00 W 2.2 41.20 49.00 FFQ4 SOMT 060210T 0.33 0.9 FFQ4 D32-07-W32-06 32.00 23.20 0.70 4.4 7 64.00 66.0 32.00 130.00 W 1.4 55.20 63.00 FFQ4 SOMT 060210T 0.68 0.9 New • To generate a straight surface without cusps, the width of cut must not exceed DC • Radius for programming: for insert SOMT 1.7 mm, for insert SOMW 1.9 mm • When mounting insert SOMW, APMX=0.6 mm • For slot milling or machining with high tool overhang, the maximum depth of cut should be reduced by 50% • For user guide, see pages 616-622 (1) Cutting diameter maximum (2) Maximum plunging width (3) Number of inserts (or edges for solid tool) (4) Maximum ramping angle (5) Master insert identification For inserts, see pages: FFQ4 SOMT/W 0602 (589) Spare Parts Designation FFQ4 D-C/W-06 SR 10516050-L4.6 IP-7/51 342 ISCAR
