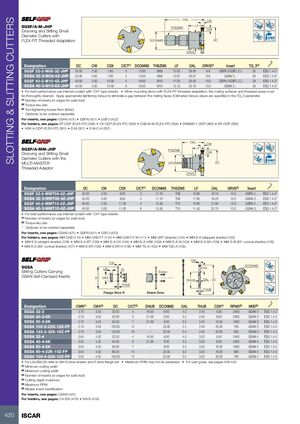

SLOTTING & SLITTING CUTTERS OAL CW SGSF/A-M-JHP LF THSZMS CDX Grooving and Slitting Small Diameter Cutters with FLEX-FIT Threaded Adaptation DCONMS DC Bar Max DRVS Designation DC CW CDX CICT(1) DCONMS THSZMS LF OAL DRVS(2) Insert TQ_3(3) SGSF 32-2-M08-3Z-JHP 32.00 2.00 7.80 3 13.00 M08 12.00 29.50 9.6 GSFN 2/GSFU 2.2 20 ESG 1.4-2* SGSA 32-3-M08-4Z-JHP 32.00 3.00 7.80 4 13.00 M08 12.87 30.37 9.6 GSAN 3... 20 ESG 1.4-2* SGSF 40-2-M10-4Z-JHP 40.00 2.00 10.00 4 18.00 M10 11.00 29.50 15.0 GSFN 2/GSFU 2.2 29 ESG 1.4-2* SGSA 40-3-M10-6Z-JHP 40.00 3.00 10.00 6 18.00 M10 12.10 32.10 15.0 GSAN 3... 29 ESG 1.4-2* • For best performance use internal coolant with “CH” type shanks • When mounting items with FLEX-FIT threaded adaptation, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter (1) Number of inserts (or edges for solid tool) (2) Torque key size (3) Tool tightening torque Nxm (lbfxin) * Optional, to be ordered separately For inserts, see pages: GSAN (421) • GSFN (421) • GSFU (422) For holders, see pages: BT-ODP (FLEX-FIT) (359) • C#-ODP (FLEX-FIT) (359) • CAB M-M (FLEX-FIT) (358) • DIN69871-ODP (360) • ER-ODP (360) • HSK A-ODP (FLEX-FIT) (361) • S M (357) • S M-C-H (357) OAL CW SGSF/A-MM-JHP LF THSZMS CDX Grooving and Slitting Small Diameter Cutters with the MULTI-MASTER DCONMS DC Bar Max Threaded Adaptor DRVS Designation DC CW CDX CICT(1) DCONMS THSZMS LF OAL DRVS(2) Insert SGSF 32-2-MMT08-3Z-JHP 32.00 2.00 9.00 3 11.70 T08 10.60 18.10 10.0 GSFN 2... ESG 1.4-2* SGSA 32-3-MMT08-4Z-JHP 32.00 3.00 9.00 4 11.70 T08 11.60 19.20 10.0 GSAN 3... ESG 1.4-2* SGSF 40-2-MMT10-4Z-JHP 40.00 2.00 11.30 4 15.30 T10 10.60 21.90 13.0 GSFN 2... ESG 1.4-2* SGSA 40-3-MMT10-6Z-JHP 40.00 3.00 11.30 6 15.30 T10 11.40 22.70 13.0 GSAN 3... ESG 1.4-2* • For best performance use internal coolant with “CH” type shanks (1) Number of inserts (or edges for solid tool) (2) Torque key size * Optional, to be ordered separately For inserts, see pages: GSAN (421) • GSFN (421) • GSFU (422) For holders, see pages: MM CAB (110) • MM CAB-T-T (110) • MM CAB-T-T-W (111) • MM GRT (shanks) (105) • MM S-A (stepped shanks) (102) • MM S-A (straight shanks) (106) • MM S-A-BT (109) • MM S-A-C# (104) • MM S-A-HSK (109) • MM S-A-N (104) • MM S-A-SK (109) • MM S-B (85° conical shanks) (106) • MM S-D (89° conical shanks) (107) • MM S-ER (108) • MM S-ER-H (108) • MM TS-A (105) • MM TS2-A (105) CW CW DCONMS SGSA LB D4 CDX Slitting Cutters Carrying Screw GSAN Self-Clamped Inserts DC DBS DHUB OAL DC THUB THUB Flange Drive R Shank Drive Designation CWN(1) CWX(2) DC CICT(3) DHUB DCONMS OAL THUB CDX(4) RPMX(5) MIID(6) SGSA 32-3 2.70 3.53 32.00 4 18.20 8.00 4.0 2.40 5.50 2400 GSAN 3 ESG 1.4-2 SGSA 40-3-6K 2.70 3.53 40.00 5 21.00 6.00 3.2 2.40 8.00 2000 GSAN 3 ESG 1.4-2 SGSA 50-3-8K 2.70 3.53 50.00 7 27.00 8.00 3.2 2.40 10.50 1600 GSAN 3 ESG 1.4-2 SGSA 100-3-22K-12Z-FP 2.70 3.53 100.00 12 - 22.00 2.4 2.40 20.00 795 GSAN 3 ESG 1.4-2 SGSA 125-3-32K-16Z-FP 2.70 3.53 125.00 16 - 32.00 2.4 2.40 25.00 635 GSAN 3 ESG 1.4-2 SGSA 32-4 3.54 4.52 32.00 4 18.20 8.00 4.0 3.20 5.50 2400 GSAN 4 ESG 1.4-2 SGSA 40-4-6K 3.54 4.52 40.00 5 21.00 6.00 3.2 3.20 8.00 2000 GSAN 4 ESG 1.4-2 SGSA 50-4-8K 3.54 4.52 50.00 7 - 8.00 3.2 3.20 10.50 1600 GSAN 4 ESG 1.4-2 SGSA 80-4-22K-10Z-FP 3.54 4.52 80.00 10 - 22.00 3.2 3.20 16.00 995 GSAN 4 ESG 1.4-2 SGSA 100-4-22K-12Z-FP 3.54 4.52 100.00 12 - 22.00 3.2 3.20 20.00 795 GSAN 4 ESG 1.4-2 • For LB,DBS,D4 refer to SW/S drive shanks and R drive flange set • Maximum RPM may not be exceeded • For user guide, see pages 426-432 (1) Minimum cutting width (2) Maximum cutting width (3) Number of inserts (or edges for solid tool) (4) Cutting depth maximum (5) Maximum RPM (6) Master insert identification For inserts, see pages: GSAN (421) For holders, see pages: C#-SW (419) • SW/S (419) 420 ISCAR
