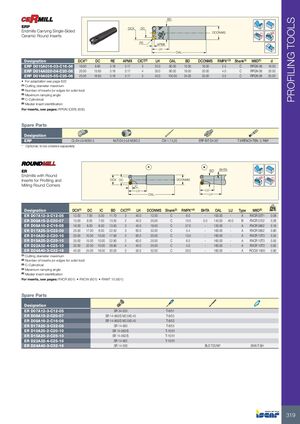

PROFILING TOOLS BD ERP DCX DC Endmills Carrying Single-Sided DCONMS Rd° Ceramic Round Inserts RE APMX LH OAL Designation DCX(1) DC RE APMX CICT(2) LH OAL BD DCONMS RMPX°(3) Shank(4) MIID(5) d ERP D010A016-03-C16-06 16.00 9.65 3.18 3.17 3 25.0 80.00 15.00 16.00 2.5 C RPGN 06 16.00 ERP D014A020-04-C20-06 20.00 13.65 3.18 3.17 4 30.0 80.00 19.00 20.00 4.0 C RPGN 06 20.00 ERP D019A025-05-C25-06 25.00 18.65 3.18 3.17 5 40.0 100.00 24.00 25.00 3.5 C RPGN 06 25.00 • For adaptation see page 622 (1) Cutting diameter maximum (2) Number of inserts (or edges for solid tool) (3) Maximum ramping angle (4) C-Cylindrical (5) Master insert identification For inserts, see pages: RPGN (CER) (605) Spare Parts Designation ERP CL-D4-L9-M3X0.5 NUT-D4.5-L6-M3X0.5 CW 1.7-L20 ERP BIT D4-30* T.WRENCH TBN 0.7NM* * Optional, to be ordered separately A B BD BHTA ER Endmills with Round Rd° Inserts for Profiling and DCX DC DCONMS Milling Round Corners IC LH LU OAL LH kg Designation DCX(1) DC IC BD CICT(2) LH DCONMS Shank(3) RMPX°(4) BHTA OAL LU Type MIID(5) ER D07A12-3-C12-05 12.00 7.00 5.00 11.70 3 40.0 12.00 C 6.0 - 100.00 - A RXCR 05T1 0.08 ER D08A15-2-C20-07 15.00 8.00 7.00 13.50 2 40.0 20.00 C 15.0 5.0 140.00 40.0 B RXCR 0702 0.26 ER D08A16-2-C16-08 16.00 8.00 8.00 13.50 2 40.0 16.00 C 27.0 - 120.00 - A RXCR 0802 0.16 ER D17A25-3-C32-08 25.00 17.00 8.00 22.50 3 60.0 32.00 C 5.4 - 160.00 - A RXCR 0802 0.80 ER D10A20-2-C20-10 20.00 10.00 10.00 17.90 2 60.0 20.00 C 13.0 - 160.00 - A RXCR 10T3 0.34 ER D15A25-2-C25-10 25.00 15.00 10.00 22.80 2 60.0 25.00 C 6.0 - 160.00 - A RXCR 10T3 0.55 ER D22A32-4-C25-10 32.00 22.00 10.00 29.90 4 40.0 25.00 C 4.0 - 160.00 - A RXCR 10T3 0.62 ER D24A40-3-C32-16 40.00 24.00 16.00 30.00 3 50.0 32.00 C 20.0 - 160.00 - A RCCW 1605 0.90 (1) Cutting diameter maximum (2) Number of inserts (or edges for solid tool) (3) C-Cylindrical (4) Maximum ramping angle (5) Master insert identification For inserts, see pages: RXCR (601) • RXCW (601) • RXMT 10 (601) Spare Parts Designation ER D07A12-3-C12-05 SR 34-533 T-6/51 ER D08A15-2-C20-07 SR 14-560/S M2.5X0.45 T-8/53 ER D08A16-2-C16-08 SR 14-560/S M2.5X0.45 T-8/53 ER D17A25-3-C32-08 SR 14-560 T-8/53 ER D10A20-2-C20-10 SR 14-562/S T-10/51 ER D15A25-2-C25-10 SR 14-562/S T-10/51 ER D22A32-4-C25-10 SR 14-562 T-10/51 ER D24A40-3-C32-16 SR 14-536 BLD T20/M7 SW6-T-SH 319
