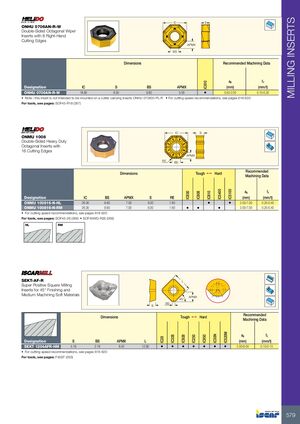

Фрезерные инструменты Iscar 2026 - страница 581

MILLING INSERTS IC S ONHU 0706AN-R-W Double-Sided Octagonal Wiper Inserts with 8 Right-Hand Cutting Edges APMX BS Dimensions Recommended Machining Data ap fz IC810 Designation IC S BS APMX (mm) (mm/t) ONHU 0706AN-R-W 18.80 6.50 6.80 5.00 • 0.50-2.00 0.10-0.20 • Note : this insert is not intended to be mounted on a cutter carrying inserts ONHU 070600-PL-R • For cutting speed recommendations, see pages 616-620 For tools, see pages: SOF45-R18 (267) IC S ONMU 1008 Double-Sided Heavy Duty Octagonal Inserts with 16 Cutting Edges APMX RE BS Recommended Dimensions Tough 1 Hard Machining Data ap fz IC5400 IC5100 IC830 IC808 IC810 Designation IC BS APMX S RE (mm) (mm/t) ONMU 100816-N-HL 26.30 9.60 7.00 9.30 1.60 • • 2.00-7.00 0.25-0.40 ONMU 100816-N-RM 26.30 9.60 7.00 9.30 1.60 • • • 2.00-7.00 0.25-0.40 • For cutting speed recommendations, see pages 616-620 For tools, see pages: SOF45-26 (266) • SOF45WG-R26 (266) HL RM SEKT-AF-R L Super Positive Square Milling Inserts for 45° Finishing and Medium Machining Soft Materials APMX 45° BS S Recommended Dimensions Tough 1 Hard Machining Data IC520M ap fz IC30N IC328 IC928 IC250 IC950 IC28 Designation S BS APMX L (mm) (mm/t) SEKT 1204AFR-HM 5.16 2.16 6.40 12.90 • • • • • • • 2.00-6.00 0.10-0.15 • For cutting speed recommendations, see pages 616-620 For tools, see pages: F45ST (263) 579
