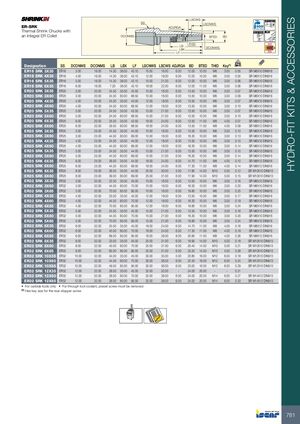

HYDRO-FIT KITS & ACCESSORIES LSCWS A 0.003 A SS LSCNWS ER-SRK ADJRGA Bar Max Thermal Shrink Chucks with 50-52 HRc √N5 an Integral ER Collet DCONMS BTED BD 4˚ THID LB DCONWS LBX LF kg Designation SS DCONWS DCONMS LB LBX LF LSCNWS LSCWS ADJRGA BD BTED THID Key(1) ER16 SRK 3X35 ER16 3.00 16.00 14.30 36.00 43.10 10.00 16.00 6.00 12.00 10.00 M6 3.00 0.05 SR M6X10 DIN916 ER16 SRK 4X35 ER16 4.00 16.00 14.30 36.00 43.10 12.00 18.00 6.00 12.00 10.00 M6 3.00 0.05 SR M6X10 DIN916 ER16 SRK 5X35 ER16 5.00 16.00 14.30 36.00 43.10 15.00 21.00 6.00 12.00 10.00 M6 3.00 0.06 SR M6X10 DIN916 ER16 SRK 6X35 ER16 6.00 16.00 7.20 36.00 43.10 18.00 22.00 6.00 12.00 11.00 M6 3.00 0.06 SR M6X10 DIN916 ER20 SRK 3X35 ER20 3.00 20.00 24.50 35.00 43.50 10.00 16.00 6.00 13.50 10.00 M6 3.00 0.07 SR M6X10 DIN916 ER20 SRK 3X60 ER20 3.00 20.00 24.50 60.00 68.50 10.00 16.00 6.00 13.50 10.00 M6 3.00 0.09 SR M6X10 DIN916 ER20 SRK 4X35 ER20 4.00 20.00 24.50 35.00 43.50 12.00 18.00 6.00 13.50 10.00 M6 3.00 0.07 SR M6X10 DIN916 ER20 SRK 4X60 ER20 4.00 20.00 24.50 60.00 68.50 12.00 18.00 6.00 13.50 10.00 M6 3.00 0.10 SR M6X10 DIN916 ER20 SRK 5X35 ER20 5.00 20.00 24.50 35.00 43.50 15.00 21.00 6.00 13.50 10.00 M6 3.00 0.07 SR M6X10 DIN916 ER20 SRK 5X60 ER20 5.00 20.00 24.50 60.00 68.50 15.00 21.00 6.00 13.50 10.00 M6 3.00 0.10 SR M6X10 DIN916 ER20 SRK 6X35 ER20 6.00 20.00 25.50 35.00 43.50 18.00 24.00 6.00 13.50 11.00 M8 4.00 0.07 SR M8X12 DIN916 ER20 SRK 6X60 ER20 6.00 20.00 29.50 60.00 68.50 18.00 24.00 6.00 13.50 11.00 M8 4.00 0.09 SR M8X12 DIN916 ER25 SRK 3X35 ER25 3.00 25.00 24.50 35.00 44.00 10.00 16.00 6.00 13.50 10.00 M6 3.00 0.10 SR M6X10 DIN916 ER25 SRK 3X60 ER25 3.00 25.00 44.50 60.00 69.00 10.00 16.00 6.00 16.30 10.00 M6 3.00 0.13 SR M6X10 DIN916 ER25 SRK 4X35 ER25 4.00 25.00 24.50 35.00 44.00 12.00 18.00 6.00 13.50 10.00 M6 3.00 0.10 SR M6X10 DIN916 ER25 SRK 4X60 ER25 4.00 25.00 44.50 60.00 69.00 12.00 18.00 6.00 16.30 10.00 M6 3.00 0.14 SR M6X10 DIN916 ER25 SRK 5X35 ER25 5.00 25.00 24.50 35.00 44.00 15.00 21.00 6.00 13.50 10.00 M6 3.00 0.10 SR M6X10 DIN916 ER25 SRK 5X60 ER25 5.00 25.00 44.50 60.00 69.00 15.00 21.00 6.00 16.30 10.00 M6 3.00 0.14 SR M6X10 DIN916 ER25 SRK 6X35 ER25 6.00 25.00 26.00 35.00 44.00 18.00 24.00 6.00 14.70 11.00 M8 4.00 0.10 SR M8X12 DIN916 ER25 SRK 6X60 ER25 6.00 25.00 44.50 60.00 69.00 18.00 24.00 6.00 17.30 11.00 M8 4.00 0.14 SR M8X12 DIN916 ER25 SRK 8X35 ER25 8.00 25.00 26.50 35.00 44.00 25.00 30.00 5.00 17.80 14.00 M10 5.00 0.12 SR M10X10 DIN913 ER25 SRK 8X60 ER25 8.00 25.00 39.50 60.00 69.00 25.00 31.00 6.00 17.90 14.00 M10 5.00 0.15 SR M10X10 DIN913 ER32 SRK 3X35 ER32 3.00 32.00 22.50 35.00 45.00 10.00 16.00 6.00 13.50 10.00 M6 3.00 0.16 SR M6X10 DIN916 ER32 SRK 3X60 ER32 3.00 32.00 44.50 60.00 70.00 10.00 16.00 6.00 16.30 10.00 M6 3.00 0.20 SR M6X10 DIN916 ER32 SRK 3X85 ER32 3.00 32.00 70.00 85.00 95.00 10.00 16.00 6.00 19.80 10.00 M6 3.00 0.25 SR M6X10 DIN916 ER32 SRK 4X35 ER32 4.00 32.00 23.50 35.00 45.00 12.00 18.00 6.00 13.50 10.00 M6 3.00 0.17 SR M6X10 DIN916 ER32 SRK 4X60 ER32 4.00 32.00 44.50 60.00 70.00 12.00 18.00 6.00 16.30 10.00 M6 3.00 0.19 SR M6X10 DIN916 ER32 SRK 4X85 ER32 4.00 32.00 70.00 85.00 95.00 12.00 18.00 6.00 19.80 10.00 M6 3.00 0.24 SR M6X10 DIN916 ER32 SRK 5X35 ER32 5.00 32.00 24.50 35.00 45.00 15.00 21.00 6.00 13.50 10.00 M6 3.00 0.16 SR M6X10 DIN916 ER32 SRK 5X60 ER32 5.00 32.00 44.50 60.00 70.00 15.00 21.00 6.00 16.30 10.00 M6 3.00 0.20 SR M6X10 DIN916 ER32 SRK 5X85 ER32 5.00 32.00 70.00 85.00 95.00 15.00 21.00 6.00 19.80 10.00 M6 3.00 0.24 SR M6X10 DIN916 ER32 SRK 6X35 ER32 6.00 32.00 25.50 35.00 45.00 18.00 24.00 6.00 14.70 11.00 M8 4.00 0.16 SR M8X12 DIN916 ER32 SRK 6X60 ER32 6.00 32.00 45.00 60.00 70.00 18.00 24.00 6.00 17.30 11.00 M8 4.00 0.19 SR M8X12 DIN916 ER32 SRK 6X85 ER32 6.00 32.00 69.50 85.00 95.00 18.00 26.00 8.00 20.80 11.00 M8 4.00 0.26 SR M8X12 DIN916 ER32 SRK 8X35 ER32 8.00 32.00 33.00 35.00 45.00 25.00 31.00 6.00 18.95 14.00 M10 5.00 0.18 SR M10X10 DIN913 ER32 SRK 8X60 ER32 8.00 32.00 45.00 60.00 70.00 25.00 31.00 6.00 20.40 14.00 M10 5.00 0.21 SR M10X10 DIN913 ER32 SRK 8X85 ER32 8.00 32.00 65.00 85.00 95.00 25.00 31.00 6.00 23.20 14.00 M10 5.00 0.28 SR M10X10 DIN913 ER32 SRK 10X35 ER32 10.00 32.00 34.00 35.00 45.00 30.00 35.00 5.00 20.80 16.00 M12 6.00 0.18 SR M12X10 DIN913 ER32 SRK 10X60 ER32 10.00 32.00 44.50 60.00 70.00 30.00 36.00 6.00 22.40 16.00 M12 6.00 0.24 SR M12X10 DIN913 ER32 SRK 10X85 ER32 10.00 32.00 49.50 85.00 95.00 30.00 36.00 6.00 23.00 16.00 M12 6.00 0.29 SR M12X10 DIN913 ER32 SRK 12X35 ER32 12.00 32.00 28.00 35.00 45.00 32.00 32.00 - 24.00 20.00 - - 0.21 ER32 SRK 12X60 ER32 12.00 32.00 28.00 60.00 70.00 32.00 38.00 6.00 24.00 20.00 M14 6.00 0.27 SR M14X12 DIN913 ER32 SRK 12X85 ER32 12.00 32.00 28.00 85.00 95.00 32.00 38.00 6.00 24.00 20.00 M14 6.00 0.33 SR M14X12 DIN913 • For carbide tools only • For through tool coolant, preset screw must be removed (1) Hex key size for the rear stopper screw 781
