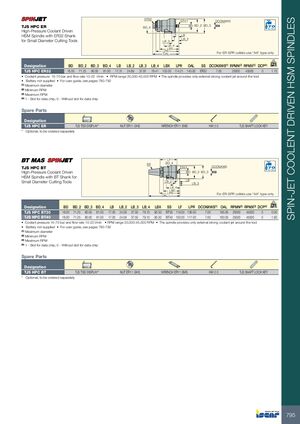

SPIN-JET COOLENT DRIVEN HSM SPINDLES ER32 ER11 DCONXWS TJS HPC ER BD BD_2 BD_3 70 BD_4 Bar Max High-Pressure Coolant Driven HSM Spindle with ER32 Shank LB LB_2 for Small Diameter Cutting Tools LB_3 LB_4 LBX LPR For ER-SPR collets use "AA" type only OAL kg Designation BD BD_2 BD_3 BD_4 LB LB_2 LB_3 LB_4 LBX LPR OAL SS DCONXWS(1) RPMN(2) RPMX(3) DCP(4) TJS HPC ER32 16.00 71.25 80.00 81.00 17.31 24.89 37.81 79.41 103.00 114.21 143.00 ER32 7.00 25000 45000 0 1.70 • Coolant pressure 15-70 bar and flow rate 10-22 l/min • RPM range 20,000-45,000 RPM • The spindle provides only external strong coolant jet around the tool • Battery not supplied • For user guide, see pages 790-792 (1) Maximum diameter (2) Minimum RPM (3) Maximum RPM (4) 1 - Slot for data chip, 0 - Without slot for data chip Spare Parts Designation TJS HPC ER TJS TSD DISPLAY* NUT ER11 GHS WRENCH ER11 SMS HW 2.0 TJS SHAFT LOCK KEY * Optional, to be ordered separately LF SS BD_4 DCONXWS TJS HPC BT ER11 70 Bar Max High-Pressure Coolant Driven BD BD_2 BD_3 HSM Spindle with BT Shank for LB Small Diameter Cutting Tools LB_2 LB_3 LB_4 LBX LPR For ER-SPR collets use "AA" type only OAL kg Designation BD BD_2 BD_3 BD_4 LB LB_2 LB_3 LB_4 LBX SS LF LPR DCONXWS(1) OAL RPMN(2) RPMX(3) DCP(4) TJS HPC BT30 16.00 71.25 80.00 81.00 17.00 24.58 37.50 79.10 90.30 BT30 119.00 136.00 7.00 185.00 25000 45000 0 0.00 TJS HPC BT40 16.00 71.25 80.00 81.00 17.00 24.58 37.50 79.10 90.30 BT40 100.00 117.00 7.00 183.00 25000 45000 0 1.90 • Coolant pressure 15-70 bar and flow rate 10-22 l/min • RPM range 20,000-45,000 RPM • The spindle provides only external strong coolant jet around the tool • Battery not supplied • For user guide, see pages 790-792 (1) Maximum diameter (2) Minimum RPM (3) Maximum RPM (4) 1 - Slot for data chip, 0 - Without slot for data chip Spare Parts Designation TJS HPC BT TJS TSD DISPLAY* NUT ER11 GHS WRENCH ER11 SMS HW 2.0 TJS SHAFT LOCK KEY * Optional, to be ordered separately 795
