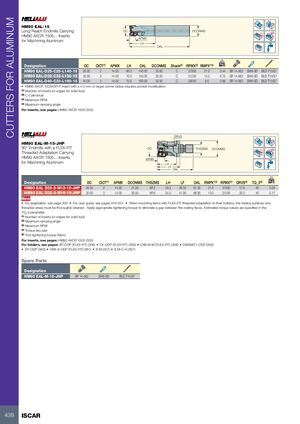

CUTTERS FOR ALUMINUM HM90 EAL-15 Long Reach Endmills Carrying DC DCONMS Rd° HM90 AXCR 1505... Inserts APMX for Machining Aluminum LH OAL kg Designation DC CICT(1) APMX LH OAL DCONMS Shank(2) RPMX(3) RMPX°(4) HM90 EAL-D25-C25-L140-15 25.00 2 14.00 60.0 140.00 25.00 C 37500 21.0 0.44 SR 14-562 SW6-SD BLD T10/S7 HM90 EAL-D32-C32-L150-15 32.00 3 14.00 70.0 150.00 32.00 C 31250 13.0 0.75 SR 14-562 SW6-SD BLD T10/S7 HM90 EAL-D40-C32-L160-15 40.00 3 14.00 70.0 160.00 32.00 C 26040 9.0 0.99 SR 14-562 SW6-SD BLD T10/S7 • HM90 AXCR 150540R-P insert with a 4.0 mm or larger corner radius requires pocket modification (1) Number of inserts (or edges for solid tool) (2) C-Cylindrical (3) Maximum RPM (4) Maximum ramping angle For inserts, see pages: HM90 AXCR 1505 (533) DRVS HM90 EAL-M-15-JHP 90° Endmills with a FLEX-FIT DC THSZMS DCONMS Rd° Threaded Adaptation Carrying HM90 AXCR 1505... Inserts APMX for Machining Aluminum LH LF OAL kg Designation DC CICT(1) APMX DCONMS THSZMS LH LF OAL RMPX°(2) RPMX(3) DRVS(4) TQ_3(5) HM90 EAL D25-2-M12-15-JHP 25.00 2 14.00 21.00 M12 29.3 39.30 61.30 21.0 37500 17.0 40 0.08 HM90 EAL D32-3-M16-15-JHP 32.00 3 14.00 30.50 M16 34.5 41.90 66.90 13.0 31250 25.0 40 0.17 New • For adaptation, see page 303 • For user guide, see pages 616-621 • When mounting items with FLEX-FIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter (1) Number of inserts (or edges for solid tool) (2) Maximum ramping angle (3) Maximum RPM (4) Torque key size (5) Tool tightening torque (Nxm) For inserts, see pages: HM90 AXCR 1505 (533) For holders, see pages: BT-ODP (FLEX-FIT) (359) • C#-ODP (FLEX-FIT) (359) • CAB M-M (FLEX-FIT) (358) • DIN69871-ODP (360) • ER-ODP (360) • HSK A-ODP (FLEX-FIT) (361) • S M (357) • S M-C-H (357) Spare Parts Designation HM90 EAL-M-15-JHP SR 14-562 SW6-SD BLD T10/S7 438 ISCAR
