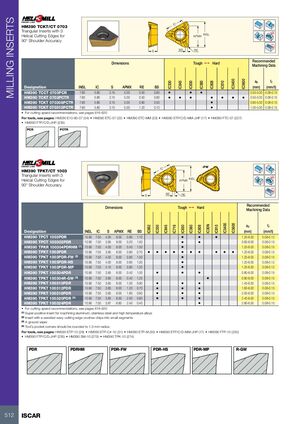

MILLING INSERTS IC HM390 TCKT/CT 0703 Triangular Inserts with 3 INSL Helical Cutting Edges for APMX 90° Shoulder Accuracy Rd° S BS RE Recommended Dimensions Tough 1 Hard Machining Data ap fz IC5400 IC5600 IC330 IC845 IC830 IC380 IC808 IC810 Designation INSL IC S APMX RE BS (mm) (mm/t) HM390 TCCT 0703PCR 7.80 5.80 3.15 5.00 0.50 0.80 • • • 0.50-5.00 0.08-0.15 HM390 TCKT 0703PCTR 7.80 5.80 3.15 5.00 0.50 0.80 • • • • • • • 0.50-5.00 0.08-0.15 HM390 TCKT 070308PCTR 7.80 5.80 3.15 5.00 0.80 0.50 • 0.80-5.00 0.08-0.15 HM390 TCKT 070312PCTR 7.80 5.80 3.15 5.00 1.20 0.10 • 1.00-5.00 0.08-0.15 • For cutting speed recommendations, see pages 616-620 For tools, see pages: HM390 E10-80-07 (54) • HM390 ETC-07 (22) • HM390 ETC-MM (23) • HM390 ETP/C/D-MM-JHP (17) • HM390 FTC-07 (227) • HM390 FTP/C/D-JHP (235) PCR PCTR -FW IC HM390 TPKT/CT 1003 Triangular Inserts with 3 Helical Cutting Edges for APMX INSL 90° Shoulder Accuracy Rd° S BS RE Recommended Dimensions Tough 1 Hard Machining Data IC5400 ap fz IC5600 IC30N IC882 IC330 IC845 IC716 IC830 IC380 IC808 IC810 Designation INSL IC S APMX RE BS (mm) (mm/t) HM390 TPCT 1003PDR 10.90 7.50 4.00 8.00 0.80 1.10 • • • 1.20-8.00 0.08-0.12 HM390 TPCT 100302PDR 10.90 7.50 3.95 8.00 0.20 1.50 • • 0.60-8.00 0.08-0.15 HM390 TPKR 100304PDRHM (1) 10.90 7.50 4.00 8.00 0.40 1.50 • 1.20-8.00 0.08-0.15 HM390 TPKT 1003PDR 10.90 7.50 3.85 8.00 0.80 0.70 • • • • • • • • • • 1.20-8.00 0.08-0.15 HM390 TPKT 1003PDR-FW (2) 10.90 7.50 4.00 8.00 0.80 1.50 • 1.20-8.00 0.08-0.15 HM390 TPKT 1003PDR-HS 10.90 7.50 4.00 8.00 0.80 1.00 • 1.20-8.00 0.08-0.12 HM390 TPKT 1003PDR-MP 10.90 7.50 4.10 8.00 0.80 1.20 • 1.20-8.00 0.08-0.12 HM390 TPKT 100304PDR 10.90 7.50 3.85 8.00 0.40 1.00 • • • 0.80-8.00 0.08-0.15 HM390 TPKT 100304R-GW (3) 10.90 7.50 3.85 8.00 0.40 1.25 • 0.80-8.00 0.08-0.15 HM390 TPKT 100310PDR 10.90 7.50 3.85 8.00 1.00 0.90 • • • 1.40-8.00 0.08-0.15 HM390 TPKT 100312PDR 10.90 7.50 3.85 8.00 1.20 0.70 • • • 1.60-8.00 0.08-0.15 HM390 TPKT 100316PDR 10.90 7.50 3.85 8.00 1.60 0.60 • • • 2.00-8.00 0.08-0.15 HM390 TPKT 100320PDR (4) 10.90 7.50 3.85 8.00 2.00 0.60 • • • 2.40-8.00 0.08-0.15 HM390 TPKT 100324PDR 10.90 7.50 3.87 6.60 2.40 0.40 • 2.80-6.50 0.08-0.15 • For cutting speed recommendations, see pages 616-620 (1) Super positive insert for machining aluminum, stainless steel and high temperature alloys (2) Insert with a serrated wavy cutting edge crushes chips into small segments (3) A ground wiper PDR PDRHM PDR-FW (4) Tool’s pocket corners should be rounded to 1.5 mm radius For tools, see pages: HM390 ETP-10 (29) • HM390 ETP-C#-10 (31) • HM390 ETP-M (30) • HM390 ETP/C/D-MM-JHP (17) • HM390 FTP-10 (235) • HM390 FTP/C/D-JHP (235) • HM390 SM-10 (275) • HM390 TPK-10 (274) PDR PDRHM PDR-FW PDR-HS PDR-MP R-GW PDR-HS PDR-MP R-GW 512 ISCAR
