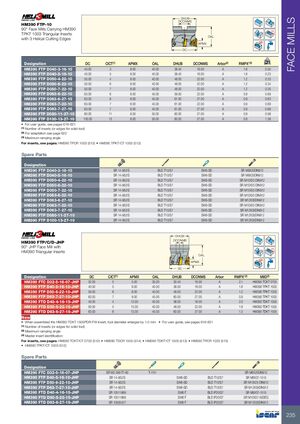

DHUB FACE MILLS DCONMS HM390 FTP-10 90° Face Mills Carrying HM390 Rd° TPKT 1003 Triangular Inserts OAL with 3 Helical Cutting Edges APMX DC kg Designation DC CICT(1) APMX OAL DHUB DCONMS Arbor(2) RMPX°(3) HM390 FTP D040-3-16-10 40.00 3 8.00 40.00 38.40 16.00 A 1.6 0.50 HM390 FTP D040-5-16-10 40.00 5 8.00 40.00 38.40 16.00 A 1.6 0.23 HM390 FTP D050-4-22-10 50.00 4 8.00 40.00 48.00 22.00 A 1.2 0.33 HM390 FTP D050-6-22-10 50.00 6 8.00 40.00 48.00 22.00 A 1.2 0.34 HM390 FTP D050-7-22-10 50.00 7 8.00 40.00 48.00 22.00 A 1.2 0.35 HM390 FTP D063-6-22-10 63.00 6 8.00 45.00 59.00 22.00 A 0.9 0.69 HM390 FTP D063-6-27-10 63.00 6 8.00 45.00 61.00 27.00 A 0.9 0.63 HM390 FTP D063-7-22-10 63.00 7 8.00 45.00 61.00 22.00 A 0.9 0.69 HM390 FTP D063-7-27-10 63.00 7 8.00 45.00 61.00 27.00 A 0.9 0.68 HM390 FTP D080-11-27-10 80.00 11 8.00 50.00 60.00 27.00 A 0.8 0.98 HM390 FTP D100-13-27-10 100.00 13 8.00 50.00 60.00 27.00 A 0.8 1.38 • For user guide, see pages 616-621 (1) Number of inserts (or edges for solid tool) (2) For adaptation see page 622 (3) Maximum ramping angle For inserts, see pages: HM390 TPCR 1003 (513) • HM390 TPKT/CT 1003 (512) Spare Parts Designation HM390 FTP D040-3-16-10 SR 14-562/S BLD T10/S7 SW6-SD SR M8X25DIN912 HM390 FTP D040-5-16-10 SR 14-562/S BLD T10/S7 SW6-SD SR M8X25DIN912 HM390 FTP D050-4-22-10 SR 14-562/S BLD T10/S7 SW6-SD SR M10X25 DIN912 HM390 FTP D050-6-22-10 SR 14-562/S BLD T10/S7 SW6-SD SR M10X25 DIN912 HM390 FTP D050-7-22-10 SR 14-562/S BLD T10/S7 SW6-SD SR M10X25 DIN912 HM390 FTP D063-6-22-10 SR 14-562/S BLD T10/S7 SW6-SD SR M10X25 DIN912 HM390 FTP D063-6-27-10 SR 14-562/S BLD T10/S7 SW6-SD SR M12X35DIN912 HM390 FTP D063-7-22-10 SR 14-562/S BLD T10/S7 SW6-SD SR M10X25 DIN912 HM390 FTP D063-7-27-10 SR 14-562/S BLD T10/S7 SW6-SD SR M12X35DIN912 HM390 FTP D080-11-27-10 SR 14-562/S BLD T10/S7 SW6-SD SR M12X35DIN912 HM390 FTP D100-13-27-10 SR 14-562/S BLD T10/S7 SW6-SD SR M12X35DIN912 DHUB DCONMS HM390 FTP/C/D-JHP 90° JHP Face Mill with Rd° HM390 Triangular Inserts OAL APMX DC Designation DC CICT(1) APMX OAL DHUB DCONMS Arbor RMPX°(2) MIID(3) HM390 FTC D32-5-16-07-JHP 32.00 5 5.00 35.00 30.40 16.00 A 2.1 HM390 TCKT 0703 HM390 FTP D40-5-16-10-JHP 40.00 5 8.00 40.00 38.00 16.00 A 1.6 HM390 TPKT 1003 HM390 FTP D50-6-22-10-JHP 50.00 6 8.00 40.00 48.00 22.00 A 1.2 HM390 TPKT 1003 HM390 FTP D63-7-27-10-JHP 63.00 7 8.00 45.00 60.00 27.00 A 0.9 HM390 TPKT 1003 HM390 FTD D40-4-16-15-JHP 40.00 4 13.00 40.00 38.00 16.00 A 2.0 HM390 TDKT 1505 HM390 FTD D50-5-22-15-JHP 50.00 5 13.00 40.00 48.00 22.00 A 1.6 HM390 TDKT 1505 HM390 FTD D63-6-27-15-JHP 63.00 6 13.00 45.00 60.00 27.00 A 1.2 HM390 TDKT 1505 New • When assembled the HM390 TDKT 1505PDR-FW insert, tool diameter enlarges by 1.0 mm • For user guide, see pages 616-621 (1) Number of inserts (or edges for solid tool) (2) Maximum ramping angle (3) Master insert identification For inserts, see pages: HM390 TCKT/CT 0703 (512) • HM390 TDCR 1505 (514) • HM390 TDKT/CT 1505 (513) • HM390 TPCR 1003 (513) • HM390 TPKT/CT 1003 (512) Spare Parts Designation HM390 FTC D32-5-16-07-JHP SR M2.5X6-T7-60 T-7/51 SR M8X25DIN912 HM390 FTP D40-5-16-10-JHP SR 14-562/S SW6-SD BLD T10/S7 SR M8X37-1515 HM390 FTP D50-6-22-10-JHP SR 14-562/S SW6-SD BLD T10/S7 SR M10X25 DIN912 HM390 FTP D63-7-27-10-JHP SR 14-562/S SW6-SD BLD T10/S7 SR M12X35DIN912 HM390 FTD D40-4-16-15-JHP SR 10511869 SW6-T BLD IP20/S7 SR M8X37-1515 HM390 FTD D50-5-22-15-JHP SR 10511869 SW6-T BLD IP20/S7 SR M10X37-50DEG HM390 FTD D63-6-27-15-JHP SR 10505427 SW6-T BLD IP20/S7 SR M12X35DIN912 235
