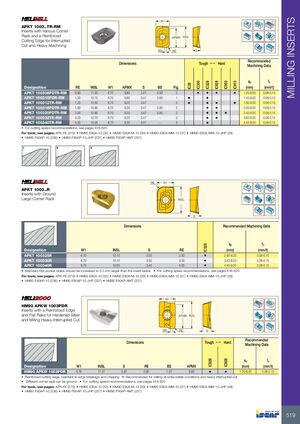

MILLING INSERTS W1 Rd° APKT 1003..TR-RM Inserts with Various Corner Radii and a Reinforced APMX INSL Cutting Edge for Interrupted Cut and Heavy Machining BS RE S Recommended Dimensions Tough 1 Hard Machining Data ap fz IC330 IC328 IC928 IC950 IC910 IC28 Designation RE INSL W1 APMX S BS Fig. (mm) (mm/t) APKT 100308PDTR-RM 0.80 11.00 6.70 9.80 3.47 0.90 2 • • • • 1.20-8.00 0.08-0.15 APKT 100310PDR-RM 1.00 10.75 6.70 9.80 3.47 0.60 1 • • 1.40-8.00 0.08-0.15 APKT 100312TR-RM 1.20 10.50 6.70 9.20 3.47 - 3 • • • • 1.60-8.00 0.08-0.15 APKT 100316PDTR-RM 1.60 10.90 6.70 9.20 3.47 0.80 2 • • 2.00-8.00 0.08-0.15 APKT 100320PDTR-RM 2.00 10.90 6.70 9.20 3.47 0.80 2 • • • 2.40-8.00 0.08-0.15 APKT 100332TR-RM 3.20 10.70 6.70 9.20 3.47 - 3 • • 3.60-8.00 0.08-0.15 APKT 100340TR-RM 4.00 10.55 6.70 9.20 3.47 - 3 • 4.40-8.00 0.08-0.15 • For cutting speed recommendations, see pages 616-620 For tools, see pages: APK-FE (279) • HM90 E90A-10 (32) • HM90 E90A-M-10 (39) • HM90 E90A-MM-10 (37) • HM90 E90A-MM-10-JHP (38) • HM90 F90AP-10 (236) • HM90 F90AP-10-JHP (237) • HM90 F90AP-AMT (237) 1 2 3 RE W1 Rd° APKT 1003..R Inserts with Ground Large Corner Radii INSL S Dimensions Recommended Machining Data ap fz IC328 Designation W1 INSL S RE (mm) (mm/t) APKT 100325R 6.70 10.10 3.50 2.50 • 2.90-9.20 0.08-0.15 APKT 100330R 6.70 10.10 3.50 3.00 • 3.40-9.20 0.08-0.15 APKT 100340R 6.75 10.65 3.40 4.00 • 4.40-9.20 0.08-0.15 • Standard tool pocket radius should be increased to 0.5 mm larger than the insert radius • For cutting speed recommendations, see pages 616-620 For tools, see pages: APK-FE (279) • HM90 E90A-10 (32) • HM90 E90A-M-10 (39) • HM90 E90A-MM-10 (37) • HM90 E90A-MM-10-JHP (38) • HM90 F90AP-10 (236) • HM90 F90AP-10-JHP (237) • HM90 F90AP-AMT (237) W1 Rd° HM90 APKW 1003PDR 1 Inserts with a Reinforced Edge and Flat Rake for Hardened Steel APMX lNSL and Milling Heavy Interrupted Cut 2 BS RE S Recommended Dimensions Tough 1 Hard Machining Data ap fz IC928 IC908 Designation W1 INSL S RE BS APMX (mm) (mm/t) HM90 APKW 1003PDR 6.76 11.47 3.50 0.80 1.40 9.80 • • 1.20-8.00 0.08-0.15 • Reinforced cutting edge, resistant to edge breakage and chipping • Recommended for milling at unfavorable conditions and heavy interrupted cut • Different corner radii can be ground • For cutting speed recommendations, see pages 616-620 For tools, see pages: APK-FE (279) • HM90 E90A-10 (32) • HM90 E90A-M-10 (39) • HM90 E90A-MM-10 (37) • HM90 E90A-MM-10-JHP (38) • HM90 F90AP-10 (236) • HM90 F90AP-10-JHP (237) • HM90 F90AP-AMT (237) 519
