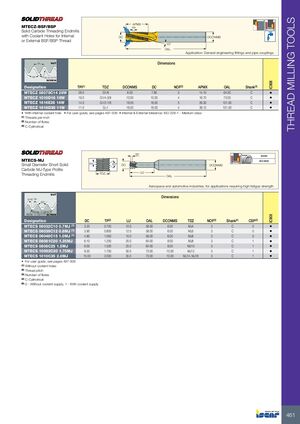

THREAD MILLING TOOLS APMX MTECZ-BSF/BSP TP Solid Carbide Threading Endmills with Coolant Holes for Internal DC DCONMS or External BSF/BSP Thread 15° OAL Application: General engineering fittings and pipe couplings TP NUT Dimensions 55˚ RE=0.137TP SCREW IC908 Designation TPI(1) TDZ DCONMS DC NOF(2) APMX OAL Shank(3) MTECZ 08078C14 28W 28.0 G1/8 8.00 7.80 3 14.10 64.00 C • MTECZ 1010D16 19W 19.0 G1/4-3/8 10.00 10.00 4 16.70 73.00 C • MTECZ 1616E26 14W 14.0 G1/2-7/8 16.00 16.00 5 26.30 101.00 C • MTECZ 1616D38 11W 11.0 G>1 16.00 16.00 4 38.10 101.00 C • • With internal coolant hole • For user guide, see pages 497-506 • Internal & External tolerance: ISO 228-1 - Medium class (1) Threads per inch (2) Number of flutes (3) C-Cylindrical TP 4H/5H MTECS-MJ ISO 5855 Small Diameter Short Solid TP 60° DC DCONMS Carbide MJ-Type Profile TDZ LU Threading Endmills OAL Aerospace and automotive industries, for applications requiring high fatigue strength NUT Dimensions 5/16 TP 60° REmax 0.18042TP REmin 0.15011TP SCREW IC908 Designation DC TP(2) LU OAL DCONMS TDZ NOF(3) Shank(4) CSP(5) MTECS 06032C10 0.7MJ (1) 3.20 0.700 10.0 58.00 6.00 MJ4 3 C 0 • MTECS 06039C12 0.8MJ (1) 3.90 0.800 12.5 58.00 6.00 MJ5 3 C 0 • MTECS 06048C15 1.0MJ (1) 4.80 1.000 15.0 58.00 6.00 MJ6 3 C 0 • MTECS 08061C20 1.25MJ 6.10 1.250 20.0 64.00 8.00 MJ8 3 C 1 • MTECS 0808C25 1.5MJ 8.00 1.500 25.0 64.00 8.00 MJ10 3 C 1 • MTECS 10092C30 1.75MJ 9.20 1.750 30.0 73.00 10.00 MJ12 3 C 1 • MTECS 1010C35 2.0MJ 10.00 2.000 35.0 73.00 10.00 MJ14, MJ16 3 C 1 • • For user guide, see pages 497-506 (1) Without coolant holes (2) Thread pitch (3) Number of flutes (4) C-Cylindrical (5) 0 - Without coolant supply, 1 - With coolant supply 461
