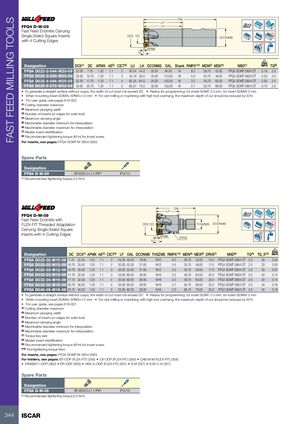

FAST FEED MILLING TOOLS OAL LH FFQ4 D-W-09 LU Fast Feed Endmills Carrying Rd° Single-Sided Square Inserts DCX DC DCONMS with 4 Cutting Edges APMX 12˚ kg Designation DCX(1) DC APMX AE(2) CICT(3) LU LH DCONMS OAL Shank RMPX°(4) MDN(5) MDX(6) MIID(7) TQ(8) FFQ4 D022-2-044-W20-09 22.00 7.70 1.20 7.1 2 40.54 44.0 20.00 94.00 W 8.2 29.70 43.00 FFQ4 SOMT 090412T 0.19 2.0 FFQ4 D025-3-050-W25-09 25.00 10.70 1.20 7.1 3 45.19 50.0 25.00 110.00 W 5.5 35.70 49.00 FFQ4 SOMT 090412T 0.25 2.0 FFQ4 D032-4-064-W25-09 32.00 17.70 1.20 7.1 4 62.25 64.0 25.00 120.00 W 3.2 49.70 63.00 FFQ4 SOMT 090412T 0.50 2.0 FFQ4 D035-5-070-W32-09 35.00 20.70 1.20 7.1 5 65.67 70.0 32.00 130.00 W 2.7 55.70 69.00 FFQ4 SOMT 090412T 0.70 2.0 • To generate a straight surface without cusps, the width of cut must not exceed DC • Radius for programming: for insert SOMT 2.5 mm, for insert SOMW 3 mm • When mounting insert SOMW, APMX=1.0 mm • For slot milling or machining with high tool overhang, the maximum depth of cut should be reduced by 50% • For user guide, see pages 616-622 (1) Cutting diameter maximum (2) Maximum plunging width (3) Number of inserts (or edges for solid tool) (4) Maximum ramping angle (5) Machinable diameter minimum for interpolation (6) Machinable diameter maximum for interpolation (7) Master insert identification (8) Recommended tightening torque (N*m) for insert screw For inserts, see pages: FFQ4 SOMT/W 0904 (590) Spare Parts Designation FFQ4 D-W-09 SR M3X0.5-L7.4 IP9(a) IP-9/151 (a) Recommended tightening torque:2.0 N*m OAL LF FFQ4 D-M-09 Fast Feed Endmills with Rd° FLEX-FIT Threaded Adaptation DCX DC THSZMS DCONMS Carrying Single-Sided Square Inserts with 4 Cutting Edges APMX DRVS 12˚ kg Designation DC DCX(1) APMX AE(2) CICT(3) LF OAL DCONMS THSZMS RMPX°(4) MDN(5) MDX(6) DRVS(7) MIID(8) TQ(9) TQ_3(10) FFQ4 D022-02-M10-09 7.70 22.00 1.20 7.1 2 25.00 45.00 18.00 M10 8.2 29.70 43.00 15.0 FFQ4 SOMT 090412T 2.0 29 0.04 FFQ4 D025-02-M12-09 10.70 25.00 1.20 7.1 2 30.00 52.00 21.00 M12 5.5 35.70 49.00 17.0 FFQ4 SOMT 090412T 2.0 33 0.05 FFQ4 D025-03-M12-09 10.70 25.00 1.20 7.1 3 30.00 52.00 21.00 M12 5.5 35.70 49.00 17.0 FFQ4 SOMT 090412T 2.0 33 0.07 FFQ4 D032-03-M16-09 17.70 32.00 1.20 7.1 3 35.00 60.00 29.00 M16 3.2 49.70 63.00 25.0 FFQ4 SOMT 090412T 2.0 40 0.14 FFQ4 D032-04-M16-09 17.70 32.00 1.20 7.1 4 35.00 60.00 29.00 M16 3.2 49.70 63.00 25.0 FFQ4 SOMT 090412T 2.0 40 0.14 FFQ4 D035-05-M16-09 20.70 35.00 1.20 7.1 5 35.00 60.00 29.00 M16 2.7 55.70 69.00 25.0 FFQ4 SOMT 090412T 2.0 40 0.16 FFQ4 D040-05-M16-09 25.70 40.00 1.20 7.1 5 35.00 60.00 29.00 M16 2.0 65.70 79.00 25.0 FFQ4 SOMT 090412T 2.0 40 0.18 • To generate a straight surface without cusps, the width of cut must not exceed DC • Radius for programming: for insert SOMT 2.5 mm, for insert SOMW 3 mm • When mounting insert SOMW, APMX=1.0 mm • For slot milling or machining with high tool overhang, the maximum depth of cut should be reduced by 50% • For user guide, see pages 616-621 (1) Cutting diameter maximum (2) Maximum plunging width (3) Number of inserts (or edges for solid tool) (4) Maximum ramping angle (5) Machinable diameter minimum for interpolation (6) Machinable diameter maximum for interpolation (7) Torque key size (8) Master insert identification (9) Recommended tightening torque (N*m) for insert screw (10) Tool tightening torque Nxm For inserts, see pages: FFQ4 SOMT/W 0904 (590) For holders, see pages: BT-ODP (FLEX-FIT) (359) • C#-ODP (FLEX-FIT) (359) • CAB M-M (FLEX-FIT) (358) • DIN69871-ODP (360) • ER-ODP (360) • HSK A-ODP (FLEX-FIT) (361) • S M (357) • S M-C-H (357) Spare Parts Designation FFQ4 D-M-09 SR M3X0.5-L7.4 IP9(a) IP-9/151 (a) Recommended tightening torque:2.0 N*m 344 ISCAR
