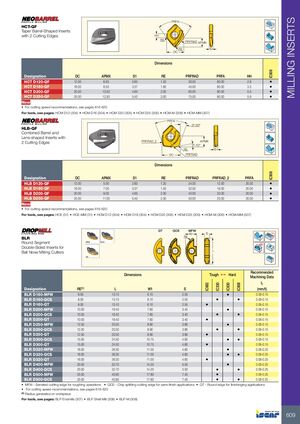

MILLING INSERTS PRFA HCT-QF Taper Barrel-Shaped Inserts with 2 Cutting Edges HH RE PRFRAD APMX RE S1 DC Dimensions IC908 Designation DC APMX S1 RE PRFRAD PRFA HH HCT D120-QF 12.00 6.65 2.60 1.20 30.00 80.00 2.8 • HCT D160-QF 16.00 8.50 3.37 1.60 45.00 80.00 3.3 • HCT D200-QF 20.00 10.50 4.65 2.00 60.00 80.00 5.5 • HCT D250-QF 25.00 12.50 5.40 3.00 75.00 80.00 5.9 • New • For cutting speed recommendations, see pages 616-620 For tools, see pages: HCM D12 (304) • HCM D16 (304) • HCM D20 (305) • HCM D25 (305) • HCM-M (306) • HCM-MM (307) PRFA 0º-20º HLB-QF Combined Barrel and Lens-shaped Inserts with PRFRAD_2 APMX 2 Cutting Edges 0º-10º RE S1 DC PRFRAD Dimensions IC908 Designation DC APMX S1 RE PRFRAD PRFRAD_2 PRFA HLB D120-QF 12.00 5.00 2.60 1.20 24.00 12.00 20.00 • HLB D160-QF 16.00 7.00 3.37 1.50 32.00 16.00 20.00 • HLB D200-QF 20.00 9.00 4.65 2.00 40.00 20.00 20.00 • HLB D250-QF 25.00 11.00 5.40 2.50 50.00 25.00 20.00 • New • For cutting speed recommendations, see pages 616-620 For tools, see pages: HCE (31) • HCE-MM (31) • HCM D12 (304) • HCM D16 (304) • HCM D20 (305) • HCM D25 (305) • HCM-M (306) • HCM-MM (307) QT QCS MFW W1 S Rd° RE BLR Round Segment Double-Sided Inserts for L Ball Nose Milling Cutters Recommended Dimensions Tough 1 Hard Machining Data fz IC882 IC330 IC830 IC808 Designation RE(1) L W1 S (mm/t) BLR D160-MFW 8.00 13.10 6.10 2.55 • 0.08-0.15 BLR D160-QCS 8.00 13.10 6.10 2.55 • • 0.08-0.15 BLR D160-QT 8.00 13.10 6.10 2.55 • 0.08-0.15 BLR D200-MFW 10.00 16.40 7.60 3.40 • 0.08-0.15 BLR D200-QCS 10.00 16.40 7.60 3.40 • • 0.08-0.15 BLR D200-QT 10.00 16.40 7.60 3.40 • 0.08-0.15 BLR D250-MFW 12.50 20.50 8.90 3.80 • 0.08-0.15 BLR D250-QCS 12.50 20.50 8.90 3.80 • • 0.08-0.15 BLR D250-QT 12.50 20.50 8.90 3.80 • 0.08-0.15 BLR D300-QCS 15.00 24.50 10.75 4.60 • • 0.08-0.15 BLR D300-QT 15.00 24.50 10.75 4.60 • 0.08-0.15 BLR D320-MFW 16.00 26.30 11.00 4.60 • 0.08-0.25 BLR D320-QCS 16.00 26.30 11.00 4.60 • • 0.08-0.25 BLR D320-QT 16.00 26.30 11.00 4.60 • 0.08-0.25 BLR D400-MFW 20.00 32.70 14.20 5.50 • 0.08-0.25 BLR D400-QCS 20.00 32.70 14.20 5.50 • • 0.08-0.25 BLR D500-MFW 25.00 40.90 17.80 7.40 • 0.08-0.25 BLR D500-QCS 25.00 40.90 17.80 7.40 • • 0.08-0.25 • MFW - Serrated cutting edge for roughing operations • QCS - Chip splitting cutting edge for semi-finish applications • QT - Round edge for finishinging applications • For cutting speed recommendations, see pages 616-620 (1) Radius generated on workpiece For tools, see pages: BLP Endmills (307) • BLP Shell Mill (308) • BLP-M (308) 609
