Фрезерные инструменты Iscar 2026 - страница 562

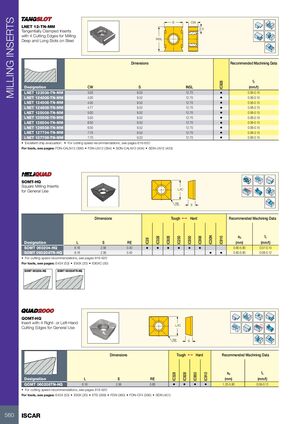

MILLING INSERTS S CW LNET 12-TN-MM 2.5 Tangentially Clamped Inserts with 4 Cutting Edges for Milling INSL Deep and Long Slots on Steel Dimensions Recommended Machining Data fz IC928 Designation CW S INSL (mm/t) LNET 123508-TN-MM 3.50 9.52 12.70 • 0.06-0.15 LNET 124008-TN-MM 4.00 9.52 12.70 • 0.06-0.15 LNET 124508-TN-MM 4.50 9.52 12.70 • 0.06-0.15 LNET 124808-TN-MM 4.77 9.52 12.70 • 0.06-0.15 LNET 125008-TN-MM 5.00 9.52 12.70 • 0.06-0.15 LNET 125508-TN-MM 5.50 9.52 12.70 • 0.06-0.15 LNET 126504-TN-MM 6.50 9.52 12.70 • 0.06-0.15 LNET 126508-TN-MM 6.50 9.52 12.70 • 0.06-0.15 LNET 127704-TN-MM 7.70 9.52 12.70 • 0.06-0.15 LNET 127708-TN-MM 7.70 9.52 12.70 • 0.06-0.15 • Excellent chip evacuation • For cutting speed recommendations, see pages 616-620 For tools, see pages: FDN-CALN12 (396) • FDN-LN12 (394) • SDN-CALN12 (404) • SDN-LN12 (403) SOMT-HQ Square Milling Inserts Rd° L/IC for General Use RE S Dimensions Tough 1 Hard Recommended Machining Data ap fz IC30N IC328 IC928 IC250 IC950 IC908 IC910 IC28 Designation L S RE (mm) (mm/t) SOMT 060204-HQ 6.16 2.56 0.40 • • • • • • 0.80-5.80 0.07-0.10 SOMT 060204TR-HQ 6.16 2.56 0.40 • • 0.80-5.80 0.08-0.12 • For cutting speed recommendations, see pages 616-620 For tools, see pages: E45X (53) • E90X (20) • E90XC (50) SOMT 060204-HQ SOMT 060204TR-HQ QOMT-HQ Insert with 4 Right- or Left-Hand L/IC Rd° Cutting Edges for General Use RE S Dimensions Tough 1 Hard Recommended Machining Data ap fz IC328 IC928 IC950 IC910 Designation L S RE (mm) (mm/t) QOMT 060208TN-HQ 6.16 2.56 0.80 • • • • 1.20-5.80 0.08-0.12 • For cutting speed recommendations, see pages 616-620 For tools, see pages: E45X (53) • E90X (20) • ETS (389) • FDN (390) • FDN-CF4 (395) • SDN (401) 560 ISCAR
