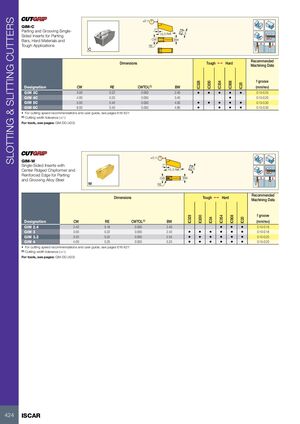

SLOTTING & SLITTING CUTTERS ±0.1 GIM-C Parting and Grooving Single- 7° 15.3 Ref. 5 Sided Inserts for Parting Bars, Hard Materials and CW BW Tough Applications RE Recommended Dimensions Tough 1 Hard Machining Data f groove IC328 IC830 IC354 IC908 IC20 Designation CW RE CWTOL(1) BW (mm/rev) GIM 3C 3.00 0.22 0.050 2.40 • • • • • 0.15-0.25 GIM 4C 4.00 0.25 0.050 3.40 • 0.15-0.25 GIM 5C 5.00 0.40 0.050 4.00 • • • • • 0.15-0.30 GIM 6C 6.00 0.40 0.050 4.80 • • • • 0.15-0.30 • For cutting speed recommendations and user guide, see pages 616-621 (1) Cutting width tolerance (+/-) For tools, see pages: GM-DG (423) ±0.1 GIM-W Single-Sided Inserts with 7° 5 Center Ridged Chipformer and 15.3 Ref. Reinforced Edge for Parting CW BW and Grooving Alloy Steel RE Recommended Dimensions Tough 1 Hard Machining Data f groove IC328 IC830 IC354 IC908 IC54 IC20 Designation CW RE CWTOL(1) BW (mm/rev) GIM 2.4 2.40 0.18 0.050 2.40 • • • 0.10-0.18 GIM 3 3.00 0.22 0.050 2.40 • • • • • • 0.10-0.18 GIM 3.2 3.20 0.22 0.050 2.54 • • • • • • 0.10-0.20 GIM 4 4.00 0.25 0.050 3.20 • • • • • • 0.15-0.20 • For cutting speed recommendations and user guide, see pages 616-621 (1) Cutting width tolerance (+/-) For tools, see pages: GM-DG (423) 424 ISCAR
