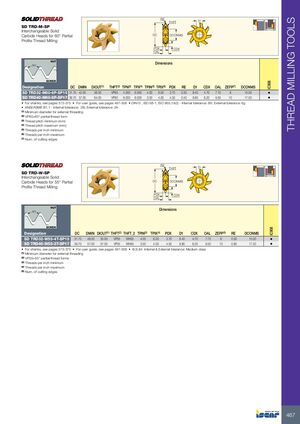

RE THREAD MILLING TOOLS THFT D1 SD TRD-M-SP Interchangeable Solid Carbide Heads for 60° Partial DC DCONMS Profile Thread Milling PDX CDX OAL NUT 60° Dimensions SCREW IC908 Designation DC DMIN DIOUT(1) THFT(2) TPN(3) TPX(4) TPIN(5) TPIX(6) PDX RE D1 CDX OAL ZEFP(7) DCONMS SD TRD32-M60-6P-SP15 31.70 42.00 36.00 VP60 4.000 6.000 4.00 6.00 3.70 0.30 8.40 4.70 7.70 8 15.00 • SD TRD40-M60-8P-SP17 39.70 57.00 64.00 VP60 6.000 8.000 3.00 4.00 4.50 0.40 9.80 6.20 9.50 10 17.00 • • For shanks, see pages 373-375 • For user guide, see pages 497-506 • DIN13 , ISO 68-1, ISO 965 (1&2) - Internal tolerance: 6H, External tolerance: 6g • ANSI/ASME B1.1 - Internal tolerance: 2B, External tolerance: 2A (1) Minimum diameter for external threading (2) VP60=60° partial thread form (3) Thread pitch minimum (mm) (4) Thread pitch maximum (mm) (5) Threads per inch minimum (6) Threads per inch maximum (7) Num. of cutting edges RE THFT D1 SD TRD-W-SP Interchangeable Solid Carbide Heads for 55° Partial DC DCONMS Profile Thread Milling PDX CDX OAL NUT 60° Dimensions SCREW IC908 Designation DC DMIN DIOUT(1) THFT(2) THFT_2 TPIN(3) TPIX(4) PDX D1 CDX OAL ZEFP(5) RE DCONMS SD TRD32-W55-4T-SP15 31.70 46.00 35.00 VP55 WH55 4.00 6.00 3.70 8.40 4.70 7.70 8 0.50 15.00 • SD TRD40-W55-3T-SP17 39.70 57.00 57.00 VP55 WH55 3.00 4.00 4.50 9.80 6.20 9.50 10 0.80 17.00 • • For shanks, see pages 373-375 • For user guide, see pages 497-506 • B.S.84 Internal & External tolerance: Medium class (1) Minimum diameter for external threading (2) VP55=55° partial thread forms (3) Threads per inch minimum (4) Threads per inch maximum (5) Num. of cutting edges 467
