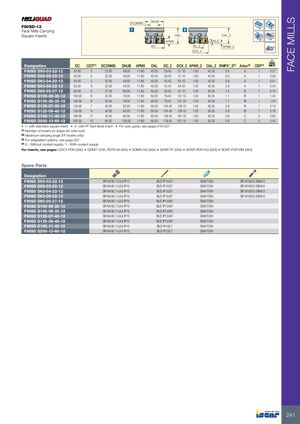

Фрезерные инструменты Iscar 2026 - страница 243

FACE MILLS DCONMS DHUB F90SD-12 Face Mills Carrying 1 2 Rd° Square Inserts OAL OAL_2 APMX 16.5˚ DC DC_2 APMX_2 DCX_2 kg Designation DC CICT(1) DCONMS DHUB APMX OAL DC_2 DCX_2 APMX_2 OAL_2 RMPX°_2(2) Arbor(3) CSP(4) F90SD D50-03-22-12 50.00 3 22.00 48.00 11.80 40.00 29.40 51.10 1.00 40.35 0.5 A 1 0.27 F90SD D50-05-22-12 50.00 5 22.00 48.00 11.80 40.00 29.40 51.10 1.00 40.35 0.5 A 1 0.28 F90SD D63-04-22-12 63.00 4 22.00 48.00 11.80 40.00 42.40 64.10 1.00 40.35 0.8 A 1 0.41 F90SD D63-06-22-12 63.00 6 22.00 48.00 11.80 40.00 42.40 64.40 1.00 40.35 0.8 A 1 0.43 F90SD D80-05-27-12 80.00 5 27.00 60.00 11.80 50.00 59.40 81.10 1.00 50.35 1.5 B 1 0.79 F90SD D100-06-32-12 100.00 6 32.00 78.00 11.80 50.00 79.40 101.10 1.00 50.35 1.1 B 1 1.44 F90SD D100-08-32-12 100.00 8 32.00 78.00 11.80 50.00 79.40 101.10 1.00 50.35 1.1 B 1 1.43 F90SD D125-07-40-12 125.00 7 40.00 92.00 11.80 50.00 104.40 126.10 1.00 50.35 0.8 B 1 2.13 F90SD D125-09-40-12 125.00 9 40.00 92.00 11.80 50.00 104.40 126.10 1.00 50.35 0.8 B 1 2.16 F90SD D160-11-40-12 160.00 11 40.00 95.00 11.80 50.00 139.40 161.10 1.00 50.35 0.6 C 0 2.95 F90SD D200-13-60-12 200.00 13 60.00 135.00 11.80 55.00 179.40 201.10 1.00 55.35 0.6 C 0 5.40 • 1- with standard square insert • 2- with FF (fast feed) insert • For user guide, see pages 616-621 (1) Number of inserts (or edges for solid tool) (2) Maximum ramping angle (FF inserts only) (3) For adaptation options, see page 622 (4) 0 - Without coolant supply, 1 - With coolant supply For inserts, see pages: QDCT-PDN (565) • QDMT 1205..PDTN-M (565) • SDMR-HQ (564) • SDMT-FF (564) • SDMT-PDR-HQ (563) • SDMT-PDR-RM (564) Spare Parts Designation F90SD D50-03-22-12 SR M4X0.7-L9.6 IP15 BLD IP15/S7 SW6-T-SH SR M10X25 DIN912 F90SD D50-05-22-12 SR M4X0.7-L9.6 IP15 BLD IP15/S7 SW6-T-SH SR M10X25 DIN912 F90SD D63-04-22-12 SR M4X0.7-L9.6 IP15 BLD IP15/S7 SW6-T-SH SR M10X25 DIN912 F90SD D63-06-22-12 SR M4X0.7-L9.6 IP15 BLD IP15/S7 SW6-T-SH SR M10X25 DIN912 F90SD D80-05-27-12 SR M4X0.7-L9.6 IP15 BLD IP15/M7 SW6-T-SH F90SD D100-06-32-12 SR M4X0.7-L9.6 IP15 BLD IP15/M7 SW6-T-SH F90SD D100-08-32-12 SR M4X0.7-L9.6 IP15 BLD IP15/M7 SW6-T-SH F90SD D125-07-40-12 SR M4X0.7-L9.6 IP15 BLD IP15/M7 SW6-T-SH F90SD D125-09-40-12 SR M4X0.7-L9.6 IP15 BLD IP15/M7 SW6-T-SH F90SD D160-11-40-12 SR M4X0.7-L9.6 IP15 BLD IP15/L7 SW6-T-SH F90SD D200-13-60-12 SR M4X0.7-L9.6 IP15 BLD IP15/L7 SW6-T-SH 241
